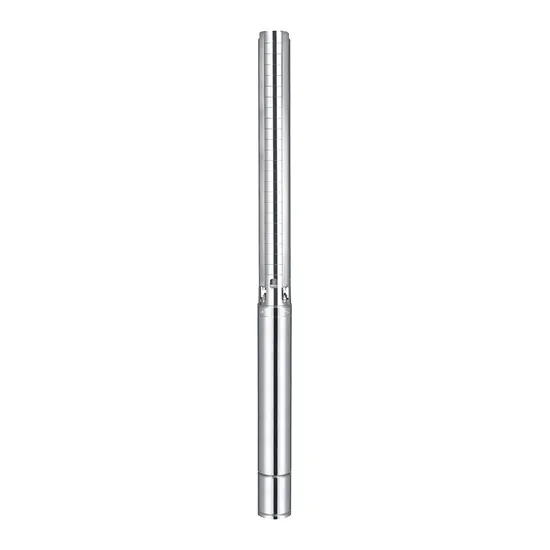

4sp Reliable Factory Stainless Steel Portable High Quality Pump Motor High Pressure Water Supply Farm Irrigation Agricultural Deep Well Submersible Water Pump

Product Description

Product Description
Application:
For water supply from wells or reservoirs.
For domestic civil and industrial applications .
For garden use and irrigation .
Component Construction :
Pump casing : AISI304SS
Outlet: AISI304SS
Inlet : AISI304SS
Strainer : AISI304SS
Diffuser : AISI304SS
Impeller : AISI304SS
Pump shaft: 45# steel
Shaft coupling : AISI304SS
Motor casing : AISI304SS/201SS
Mechanical seal : graphite-ceramic
Top chock : Cast-CU/Cast Iron
Motor shaft: AISI304SS
Bearing : C&U
Seal lubricant oil : 10# white oil
Operating Condition:
Maximum fluid temperature up to +35 ºC
Maximum sand content :0.25%
Maximum immersion: 120m
Minimum well diameter : 4 "
Motor and pump :
Rewindable motor
Single Phase :180V-240V /50Hz
Equip with start-up control box or digital auto-control box
Pumps are designed by casing stressed
Name dimension standards
Curve tolerance according to ISO9001
Detailed Photos
Spare parts
Product Parameters

NO	Model		Power		Delivery 2850 r/min
	1~	3~	Kw	Hp	Q	m³/h	0	0.3	0.5	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
	220V/240V	380V/415V				l/min	0	5	10	15	20	25	30	35	40	45	50
1	4SPM2-6	4SP2-6	0.25	0.33	H(m)		35	34	33	32	30	28	26	23	20	17	13
2	4SPM2-9	4SP2-9	0.37	0.5			52	51	50	48	45	42	38	34	30	25	19
3	4SPM2-13	4SP2-13	0.55	0.75			76	74	72	69	65	61	55	50	43	36	27
4	4SPM2-18	4SP2-18	0.75	1.0			105	103	100	95	90	84	77	69	60	50	38
5	4SPM2-20	4SP2-20	0.75	1.0			117	114	111	106	100	93	85	76	67	55	42
6	4SPM2-23	4SP2-23	1.1	1.5			134	131	127	122	115	107	98	88	77	64	48
7	4SPM2-26	4SP2-26	1.1	1.5			152	148	144	138	130	121	111	99	87	72	55
8	4SPM2-29	4SP2-29	1.5	2			169	166	161	153	145	135	124	111	97	80	61
9	4SPM2-33	4SP2-33	1.5	2			192	188	183	175	166	154	141	126	110	91	70
10	4SPM2-40	4SP2-40	2.2	3			233	228	222	212	201	186	170	153	134	111	84
11	4SPM2-48	4SP2-48	2.2	3			280	274	266	254	241	224	205	183	160	133	101
12	-	4SP2-55	3	4			321	314	305	291	276	256	234	210	184	152	116
13	-	4SP2-65	3	4			379	371	360	344	326	303	277	248	217	180	137
