Fs662-1500 HPL All-Steel Anti-Static Raised Floor for Computer Room

Product Description

ZiLi All Steel Anti-Static HPL Raised Floor - HPL All Steel Anti-Static Access Floor Product Description Information

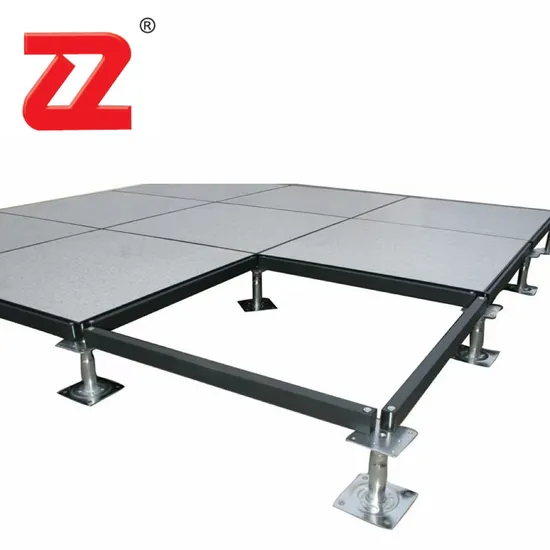

ZiLi HPL all-steel anti-static raised floor structure adopts SPCC hard steel on the upper layer, ST14 tensile plate on the bottom, with high-quality cement-filled inside, anti-cracking High Pressure Laminate(HPL) coated on the surface, and conductive strip plated on all edges. Our HPL all-steel anti-static floor pedestal is equipped with a high-quality steel plate-pressed bracket, height-adjustable threaded rod, and stringer made of square tubes. We keep excellent quality, thoughtful after-sales service, and competitive prices to ensure our customers' benefit!
CharacteristicsExcellent anti-static performanceFlame retardant, anti-skid, anti-rust, anti-soilMighty glue, strong wear-ability, non-bubbleClass A flame spread and smoke development rating24" / 610mm size panels are availableSupports
It is equipped with supports on four comers,of which height can be adjusted.

Product Parameters

type:	FS662-1500
Finished Floor Height:	100-1000mm
Panel size:	600*600*35mm.610*610mm(24"*24")
Edge trim type:	ormal trim,Trimless," F" edge trim,Printed trim
Finish Covering:	1.0-2.0mm Anti-static Laminate HPL,2.0-3.0mm PVC,10mm cermic,Marble,Granite,Nature Wood and etc.
lnstallation:	With stringer system

type	size	concertrated Load Defleations<=2.5mm			Uniform Load	Ultimate Load	system Resistance
	mm	LBS	KN	KG	KN/m	KN
FS662	600*600 (610*610 is optional)	662	2.95	300	12.50	8.85	1.0x106-1.0x109
Fs800		800	3.56	363	16.10	10.68
Fs1000		1000	4.45	454	23.00	13.35
FS1250		1250	5.56	567	33.00	16.68
FS1500		1500	6.67	680	34.50	20.02
FS2000		2000	8.90	906	46.00	26.70

ApplicationData center, computer room, control room, laboratory, post telegraph, power control center, workshop and places where require anti-static environment or have many wires.
Product display
Our Advantages
Company ProfileJiangsu Zili Machine Room Equipment Co., Ltd. Was founded in 1994, covering an area of more than 30000 square meters. It is located in the Golden Triangle of the Yangtze River, adjacent to the 312 National Highway, the Shanghai Nanjing Railway, the Beijing Hangzhou Grand Canal in the south, and the Shanghai Nanjing Expressway in the north. The transportation is very convenient. It is an enterprise specializing in the development, development and installation of "Zili" brand series anti-static raised floor.The company has passed ISO9001 international quality system certification and product quality approval. The company adopts the business philosophy of choosing excellent materials, introducing sophisticated equipment, adopting exquisite workmanship, careful management, creating exquisite products, providing sincere services, and creating "self reliant" boutiques."Self support" has always adhered to the business philosophy of "quality, customer first, and dedicated service", with an annual production capacity of 200000 square meters of various anti-static access elevated floors, which are widely used in scientific research, education, communication, power, aerospace, finance and other units, achieving stable social and economic effects.The company has set up production, supply and marketing integrated service outlets in large and medium-sized cities across the country, and its reputation has been well received by new and old customers."Zili" brand anti-static series products are deeply trusted by new and old users. For after-sales service, customers can contact and consult the sales network office. The company has long-term cooperation with new and old users and provides customers with quality services.Create an independent brand and build an independent image.
Certifications
FAQWhat is your MOQ?
A: 100pieces each type
Q2.What is the loading quantity in one 20GP?
A:1100-1500pieces,depending on the raised floor type.
Q3.When is your delivery time?
A: 30days after receiving the prepayment.
Q4.What is your package?
A:packed in wooden pallet,covered with plastic film.
Q5.What is your payment term?
A:T/T,L/C,Paypal,Master card,Western Union.
Q6. What is your response time?
A: Quick response within 24 hours.
Q7. What is the annual output of you products?
A: 100,0000 Square Meters
Q8. Can you make customized products?
A: Of course yes.
Q9.What is your business type?
A: Manufacturer factory&trading company.
