Mini DC Metal Geared Motor for Electrical Bicycle Motorized Awning with Gear

Product Description

Product Description

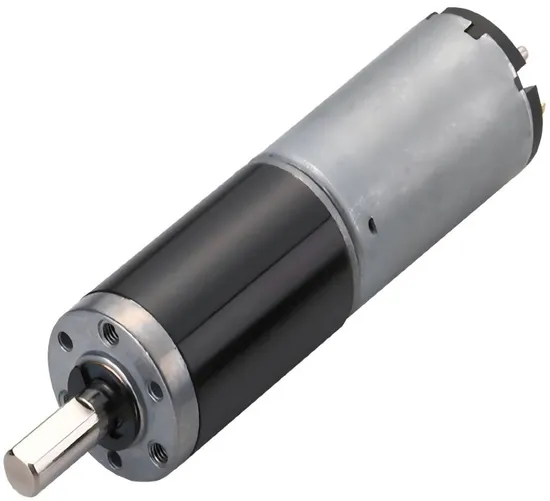

22mm planetary gear motor
The parameter listed is just a reference, for a real application, we can customize according to your needs.
Gear Motor Torque & Speed:

	Reduction ratio	1/5	1/18	1/20	1/25	1/66	1/77	1/90	1/110	1/136	1/246	1/336	1/393	1/484	1/597	1/735	1/1079	1/1475	1/2124	1/3968
12V	Rated torque(g.cm)	260	850	1000	1200	2700	3200	3700	4000	4000	5000	5000	5000	5000	5000	5000	6000	6000	6000	6000
	Rated speed(rpm)	1500	400	340	280	105	92	79	64	52	29.4	22.4	19.6	16.0	12.9	10.5	7.4	5.5	4.0	2.0
24V	Rated torque(g.cm)	260	850	1000	1200	2700	3200	3700	4000	4000	5000	5000	5000	5000	5000	5000	6000	6000	6000	6000
	Rated speed(rpm)	1500	410	350	290	110	95	81	67	56	31	23	20	16.3	13.1	10.7	7.5	5.6	4.0	2.0
	Rotation direction	CW
	Length(L-mm)	23.3	29.5			35.7					41.9						48.1

DC Motor Specification

Rated volt(V)	Rated torque(g.cm)	Rated speed(rpm)	Rated current(mA)	No-load speed(rpm)	No load current(mA)	Weight(g)
12	70	7100	<=700	9000	<=190	51
24	70	7400	<=360	9000	<=120	51

Related Products
Company Profile
PROFESSIONAL MOTOR MANUFACTURERFounded in 2006, I.CH is a professional Micro Metal Gear Motor factory over 16years. We have worked with over 50 countries' customers arround world. We have over 20 patents in gearbox field.We focus on the development of planetary gearbox and matched different type of motors, such as DC brush motor, Brushless DC Motor, Stepper Motor and Servo Motor. Custom Service for micro gear motor with encoder and dual shaft in special specification, The light weight with high torque and low speed is widely used in a variety of industrial, home application and hobby appliance.16+ Experience50+Countrie's Customers 20+ Patents 1000+ Factory Area
WHY CHOOSE US
Certifications
As part of our commitment to improving our service concept, providing high quality products and excellent service, we have invested in core ability and training. Our Nanjing holding factory manufactures high quality gear motors, gearboxes, and planetary gearbox assemblies. The following are our honorary certificates and product professional certifications display.
Packaging & Shipping
-crate, carton or pallet;
-Shipping method: air shipping, sea shipping or express;
-Delivery time: 20-50 working days.
Factory Equipments

Customer Visiting
FAQ
Q: Can you make the Gearbox or Planetary Gearbox with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: Do you provide the samples of DC Geared Motor?
A: YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
Q: What voltage can you supply?
A: 6V, 12V, 24V or we can customized voltage.
Q: Do you have the item in stock?
A: I am sorry we do not have the item in stock, All products are made with orders.
Q: Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: How to select a suitable DC Gear Motor?
A: If you have Gear motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable Geared Motor per your request accordingly.
Q: Do you have customized service for your standard Planetary Gearbox Motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC, we can make it too.
Q: Can I have samples of Planetary Gearbox for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
Q: What is application of this 12mm Geared motor?
A: Electronic Lock Motor, Optic Equipment Motor, Micro Mechanism Motor
Q: What does the share bike motor mean?
A: It means this motor is going to be used for shared bicycle, like Ofo, Mobike in China.
Q: What is the 20mm DC Geared Motor going to used for?
A: The 20mm Geared Motor is one kind of small size DC Geared Motors, it can be used as Storage Box Motor, Ad Equipment Motor, Audio Equipment Motor, Electronic Game Machine Motor, please choose motor depends on application size.
