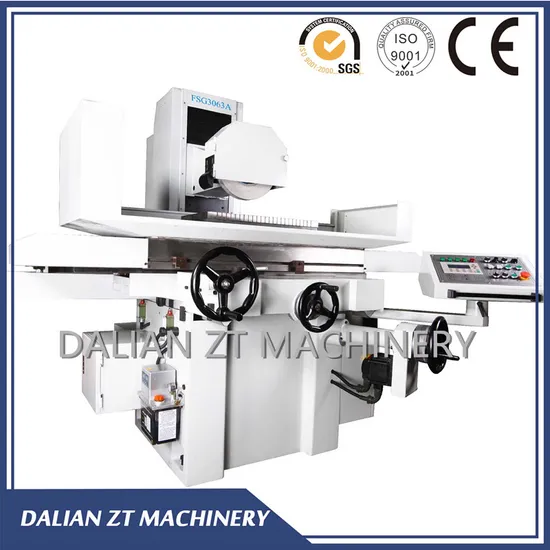

High Precision Saddle Moving Surface Grinding Machine Grinder FSG-3063

Product Description

Features:
Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding. Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
CE standard electric requirements;
Independent hydraulic station;
Turcite coated guide way;

Item	SG-3063M	SG-3063R	SG-3063A
Table size	305*635mm	305*635mm	305*635mm
Magnetic chuck size	300*600mm	300*600mm	300*600mm
Max. Distance from spindle center to table	580mm	580mm	580mm
Table cross travel	340mm	340mm	340mm
Table longitudinal travel	765mm	765mm	765mm
Max. Loading capacity (including chuck)	270kg	270kg	270kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min
Cross motion
Intermittent feedrate	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid speed	990mm/min	990mm/min	990mm/min
Feed of handwheel	0.02mm/div	0.02mm/div	0.02mm/div
Vertical motion
Auto down feed rate			0.005-0.5mm/t
Rapid down speed		650mm/min	480mm/min
Feed of handwheel	0.005mm/div.	0.005mm/div.	0.005mm/div.
Spindle speed	1450(50Hz)/1750(60Hz)
Grinding wheel size	350*40*127mm
Spindle motor power	4kW
Floor space (L*W*H)	2900*2200*1900mm
Gross weight	2800kg
Packing size	2350*2200*2210mm

Test & Shipment:
Exhibition & Customers Visiting
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
