Metallographic Structure Research Fcm5000W Computerized Metallographic Microscope
| US$1,360.00-4,855.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FCM5000W
Magnification
500-1000X
Type
Metallographic
Number of Cylinder
≥Three
Mobility
Desktop
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
Fluorescence
Shape
Laminated Lenses
Principle
Electronic
Principle of Optics
Polarizing Microscope
Optical System
Infinity Chromatic Aberration Correction Optical S
Eyepiece
Large Field of View Wf10X / 22mm
Transport Package
Wooden Case
Specification
540*460*460mm
Trademark
Hualong
Origin
Shanghai
HS Code
8479819000
Product Description

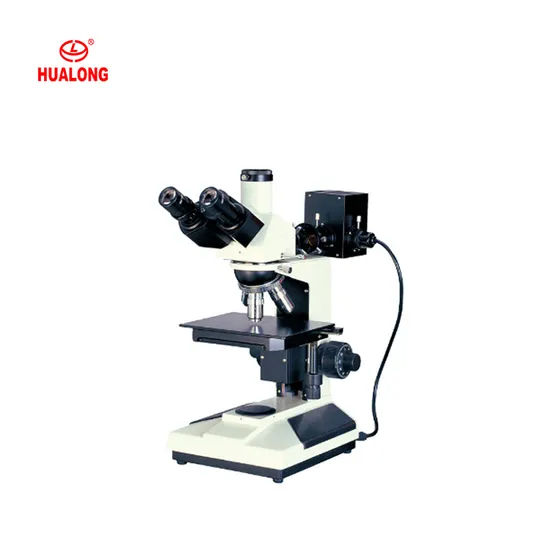

HL501M Research-grade Trinocular Upright Metallographic Microscope Product DescriptionApplication
The HL501M research-grade metallographic microscope is a trinocular upright metallographic microscope, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend, and is committed to expanding a new pattern in the industrial field. It can provide various observation functions such as reflection bright field, reflection dark field, transmission bright field, transmission and reflection polarized light, reflection differential interference and so on. Product Parameters
Technology parameter: Note: "·" is standard configuration; "O" is optional
| Configuration | Model | |
| Parts | Specification | HL501M |
| Lighting system | Infinity Chromatic Aberration Correction Optical System | · |
| Objective tube | 30° tilt, erect image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, two-speed splitting ratio binocular: trinocular = 100:0 or 0:100 | · |
| 30° tilt, inverted image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, three-speed splitting ratio binocular: trinocular = 100:0 or 20:80 or 0:100 | O | |
| Eyepiece | High eye point wide field plan eyepieces PL10X/25mm, adjustable diopter | · |
| High eye point large field plan eyepiece PL10X/25mm, adjustable diopter, with single scale cross reticle | O | |
| High eye point large field plan eyepiece PL10X/26.5mm, adjustable diopter, with single scale cross reticle | O | |
| Bright and dark field half complex Achromatic Objectives | LMPLFL 5X /0.15 BD DIC WD13.5mm | · |
| LMPLFL10X/0.30 BD DIC WD9.0mm | · | |
| LMPLFL20X/0.45 BD DIC WD2.5mm | · | |
| LMPLFL50X/0.80 BD WD1.0mm | · | |
| LMPLFL100X/0.90 BD WD1.0mm | O | |
| Convener | Light and dark field 6-hole converter with DIC slot | · |
| Station | Transflective dual-purpose frame, low-hand position coarse and fine coaxial focusing mechanism. The coarse adjustment stroke is 25mm, and the fine adjustment accuracy is 0.001mm. With adjustable elastic device to prevent sliding and random upper limit device. Built-in 100-240V wide voltage system, dual power output, digital dimming, with light intensity setting and reset function, reflected/transmitted light switch, built-in transmitted light filter (LBD, ND6, ND25) | · |
| Stage | Right-hand 4-inch mechanical stage, travel 105mmx102mm, with Y-axis locking mechanism, with transmission system light barrier, with glass stage plate | · |
| Condenser | Swing-Out Achromatic Condenser (N.A.0.9) | · |
| Reflective Illuminator | Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, adjustable center; with light and dark field illumination switching device; with color filter slot, with polarizer/analyzer slot | · |
| Light room | 12V100W halogen lamp room, common for transmission and reflection, pre-determined center | · |
| Other accessories | Polarizer board, fixed analyzer board, 360°rotating analyzer board | · |
| Interference filter set for reflection | · | |
| DIC Differential Interference Component | O | |
