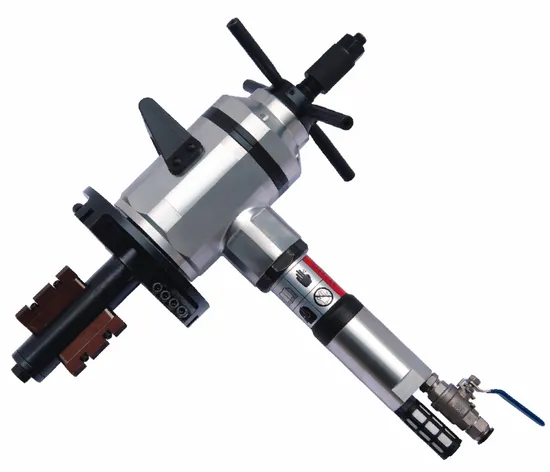

Pneumatic Pipe Beveling Machine Qt12

Product Description

Pipe & Flange ~ Cutting ~ Beveling ~ Facing ~ Drilling ~ Boring

T Series Inner Mounted Pipe Bevelling Machine
Working Range: Pipe ID from 12.5mm to 780mm
Cutting pipe wall thickness: 1-25mm
Driveing Type: Pneumatic,Electric,Numerical,Hydraulic.

Product Show
Production Description
This series is Welding Preparation Portable Electric Pipe Beveling Machine with the following advantages: Lighter weight,minimal radial space. self-located in the center of the pipe, Easy to operate. Beveling and grooving with high speed ,used for the welding preparation. Driveing Type: Pneumatic,Electric,Numerical,Hydraulic. Application:petroleum,chemical,natural gas,food,boiler,medicine,power supply construction and nuclear power. Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers. Angle:Beveling angle as per your required. Equipment selection:

Pneumatic	Working range (mm) ID	OD		Wall thickness (mm)
		mm	inch
QT1	12.5-28	14-18.5	1-1.3	1-3
QT3	25.4-79	31-89	1-3	1-15
QT6	60-170	66-180	2-6	3-20
QT8	88-219	95-225	3-8	4-20
QT12	114-300	133-325	5-12	5-20
QT18	168-457	180-465	6-18	6-20
QT24	254-600	273-630	10-24	6-20
QT32	335-780	377-830	14-32	6-25

Order Guide
Before you place order to us, please let us know the following information: Choose the right Model Confirm your electric power supply ( Voltage, frequency and phase) Confirm the beveling angel required Confirm the welding joint required (U, V, Double V or Compound preparation) Advise your pipe material ( Carbon steel, stainless steel or others) Other special demands about machine The spare parts needed If the pipe wall thickness more than 30mm, inform us in advance (Important) Method of operation:
1. Measure the size of the pipe to be machined, select the swelling block according to the swelling block diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose.
2. According to the processing requirements, select the tool table in the appropriate angle of the tool, installed in the machine cutter, tighten the bolt, fixed tool.
3. Rotate the feed hand wheel to extend the feed spindle.
4. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left enough feed space.
5. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench.
6. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove.
7. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the machine from the tube.
