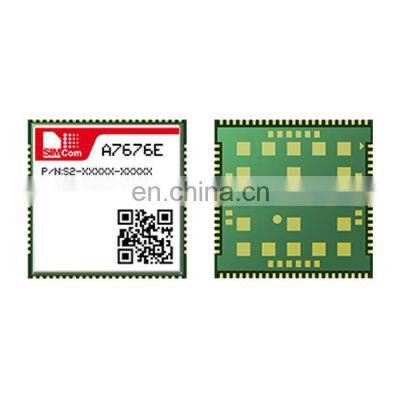

10Mbps/5Mbps Support 450MHz 4G Frequency Band LTE Cat1 Module SIMCom A7676E A7676

Product Description

Product Description
DescriptionA7676EA7676E is the LTE450 & Cat 1 module that supports wireless communication modes of LTE-FDD/GSM/ GPRS/EDGE. It also supports LTE 450MHz frequency band and supports maximum 10Mbps downlink rate and 5Mbps uplink rate.A7676E adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800F (2G modules), which enables smooth migration from 2G/NB/CAT-M products to LTE Cat 1 & 450Mhz products, and greatly facilitates more compatible product design for the customer needs.A7676E is optimized for LTE Cat 1bis and supports multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). A7676E also supports Dual SIM, VoLTE and GNSS* to adopt various usage scenario. Due to the latest generation LTE Cat1 chipset, A7676E offers ultra-low power consumption and integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.Product Advantages● Compact size with abundant interfaces & ultra-low power consumption● Supports Dual SIM, VoLTE and GNSS function(optional)● Abundant software functions: FOTA, LBS, SSL● Form factor is compatible with the SIM7070E (LTE450 Cat M1 & NB2 module)General FeaturesInterfacesFrequency Bands- LTE-FDD B1/B3/B8/B20/B31/B72- GSM/GPRS/EDGE 900/1800 MHzSupply Voltage: 3.4V ~ 4.2V, Typ: 3.8VControl Via AT CommandsOperation temperature: -40℃ to +85℃Dimensions: 24*24*2.4mmWeight: 2.8±0.1gUSB2.0UART(U)SIM card(1.8V/3V )Analog audioPCMADCI2CGPIOAntenna: Primary / GNSS*Other FeaturesData TransferUSB Driver for Microsoft Windows 7/8/10USB Driver for Linux /AndroidRIL supporting for Android 5.0/6.0/7.0/8.0/9.0Firmware update via USB/FOTATCP/IP/IPV4/IPV6/Multi-PDP/FTP/HTTP/DNSRNDIS/PPP/ECMMQTT/MQTTSTLS1.2LBSLTE Cat 1- Uplink up to 5Mbps- Downlink up to10MbpsEDGE: Uplink/Downlink up to 236.8KbpsGPRS: Uplink/Downlink up to 85.6KbpsCertificationsCE-RED#/RoHS#/REACH#Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
