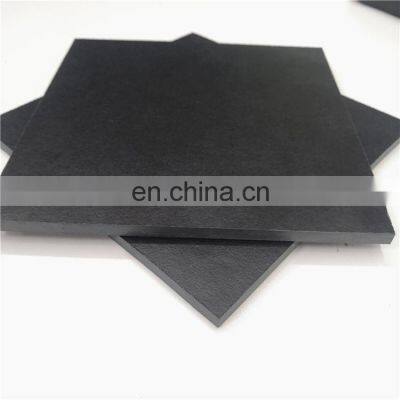

6mm Matte Phenolic Black Bakelite Sheet for Stage Floor Plate

Product Description

Product Description
Product Description
Backed by a team of highly experience and expert professionals, we have been able to provide a wide range of quality assured Bakelite Sheet to the clients. Manufactured using premium quality raw material and cutting edge technology, offered fabric base is used in textile industry for making silent gears. Being quality centric agency, this fabric base is stringently tested on different quality measures. To cater the demands of our clients, we offer this fabric base in different specifications.
Features : High pressure temperature-resistant insulation bakelite sheet is strong, rigid and very economical. it has good electrical insulating properties and it's used in a wide range of electrical installations, in equipment where rigid electrical insulation is required.
The impact strength of temperature-resistant insulation bakelite sheet is not as high as materials in other groups and it's not usually chosen where toughness,bearing properties or high stress carrying capabilities are required. However, the lowest cost grades in this group represent excellent value as rigid non-metallic materials and it's used in a very wide range of less demanding. These materials offer an economic solution to engineering applications where good mechanical strength coupled with light weight and useful electrical resistance is required.
Applications: Suitable for Fixture, mold plate,motor, mechanical mould, PCB, ICT fixture, grinding machine, drilling machine etc. Also fit for cams, gears, special machinery surfaces, insulators, relays, switches, terminal strips.
Detailed Images
Manufacturing Technique

No.	Item	Unit	Index value
1	Color		Orange/black
2	Density	g/cm3	1.45-1.5
3	Coefficient of linear thermal expansion	Kx	10
4	Shock strength		≥15
5	Vertical bending strength	MPa	≥120
6	Vertical compression strength	MPa	≥250
7	Tensile strength	MPa	≥100
8	Impact strength	KJ/m	≥67
9	Adhesive strength	N	≥3600
10	Insulation Resistance after soaking	Ω	1.0*108
11	Vertical electric strength	KV/m	≥12.1
12	Parallel breakdown voltage	KV	≥10
13	Relative dielectric constant(1MHz/50Hz)		≤5.5
14	Volume resistance	Ω x cm	107~108
