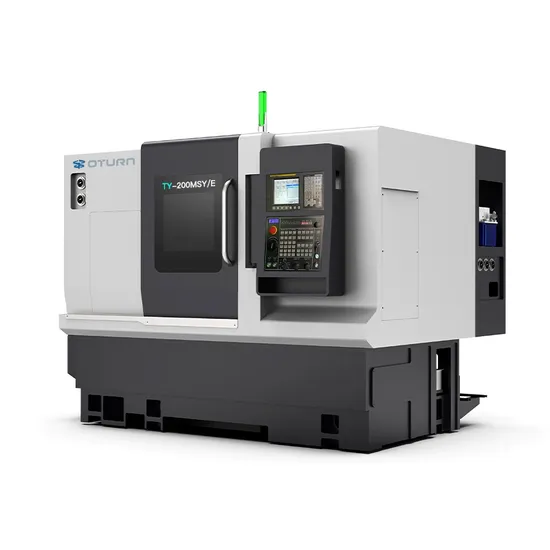

High-Rigidity Double Spindle CNC Turning Center Ety200msy for Complex Machining

Product Description

Product Description
TY200MSY adopts box-shaped structure bed, high-strength HT300 cast iron, compact structure, high strength, appropriate hardness, low friction coefficient, and self-lubrication. The integral box structure of the base bed greatly enhances the overall rigidity and stability of the machine, and has a vibration-absorbing function, which reduces tool loss and improves workpiece quality.1.The 30° inclined layout and the integrated structure of the bed base greatly improve the bending and torsional rigidity of the machine during work. The high rigidity and high stability of the bed base provide a strong guarantee for the high precision. 2.Direct drive electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of the spindle, and the deflection accuracy of the nose end is within 0.002MM. Improve the surface finish of the workpiece,
The rear-mounted rotor is adopted, which makes installation and maintenance faster,
The spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle.
The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the whole machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
3.High rigidity integrated design servo power turret, which helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor.
4.The feed system is directly driven by the servo motor, which has good rigidity, precision and dynamic response characteristics. The machine is equipped with roller linear guide rails, and the maximum rapid traverse speed can reach: 20m/min.
5.The perfect hydraulic and lubrication system adopts high-quality hydraulic pumps and hydraulic valves, which greatly reduces the failure rate. The design of the hydraulic and lubrication system is simple and reliable. The machine adopts centralized quantitative automatic lubrication.
6. Adopt Taiwan rotary chuck oil cylinder, equipped with automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming, and various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

Name	Unit	TY200MSY/E
Max. diameter rotating bed	mm	Ф660
Max. processing diameter	mm	Ф370
Max. rotation of cross slide	mm	Ф300
Max. processing length	mm	380
Rod diameter	mm	Ф46/46
Spindle nose	/	A2-5
Spindle bore diameter	mm	Ф56
Spindle max. speed	rpm	5500
Spindle motor power	kw	17.5
Spindle motor power	Nm	62-125
Hydraulic cylinder/chuck	/	6"
Spindle nose	/	A2-5
Spindle bore diameter	mm	Ф56
Spindle max. speed	rpm	5500
Spindle motor power	Nm	62-125
Spindle motor power	kw	17.5
Hydraulic cylinder/chuck	/	6"
X/Z/Y/S motor power	kw	2.5/2.5/1.2/1.2
X/Z travel	mm	320/470
Y/S travel	mm	90(±45)/440
X/Z/Y/S axis rapid movement	mm/min	24/24/8/24
Slide type	mm	35 Roller
positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Turret type	/	BMT55-12T
Powered turret motor	Kw	4.5/11-27
The maximum speed is	rpm	6000
Knife block specifications	mm	25*25
Circular tool holder specifications	mm	Ф40
Adjacent tool change time	sec	0.2
Machine size	mm	2600*2100*1900
Machine weight	kg	4200
Cutting fluid tank volume	L	150
Hydraulic unit tank volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricating oil tank volume	L	2
Automobile lubricating oil pump motor power	W	50
Cooling water pump power	W	750
