High Precision PVC PPR PE Pipe Fitting Injection Molding Machine Making Machine
| US$44,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PVC288
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Trademark
Powerjet
Origin
China
HS Code
8477101090
Production Capacity
1000
Product Description

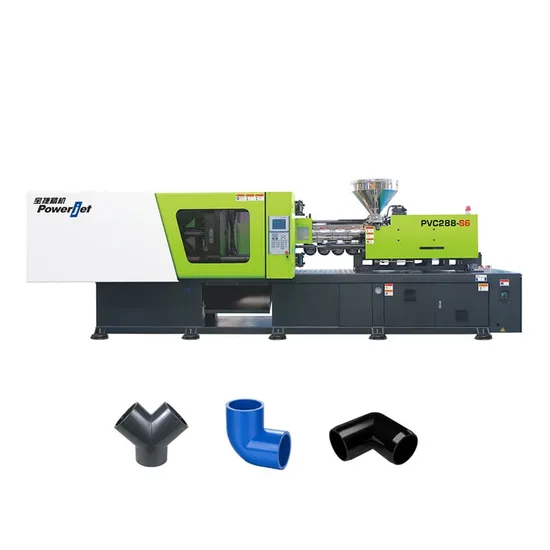

Product DescriptionPVC FITTING INJECTION MOLDING MACHINE
Powerjet new type PVC fitting injection molding machines are specialized for different sizes of PVC fitting. Saving 30%~50% of energy by using a servo motor and more device options are available to fulfill customer requirements.
Clamping Force - 90~680(Ton)
Shot Weight(PVC) - 179~2847(g)
Applications - PVC Fitting
Detailed Photos
Product Parameters
| DESCRIPTION | UNIT | PVC288-V6/S6 | ||
| CLAMPING UNIT | Clamping Force | kN | 2880 | |
| Opening Stroke | mm | 550 | ||
| Max. Daylight | mm | 1160 | ||
| Movable Platen Size | mm | 850x850 | ||
| Space Between Bars | mm | 610x610 | ||
| Max.Mold Height | mm | 610 | ||
| Min. Mold Height | mm | 280 | ||
| Ejector Stroke | mm | 145 | ||
| Ejector Force | kN | 77 | ||
| INJECTION UNIT | Screw Diameter | mm | 55 | 60 |
| Screw L/D Ratio | L/D | 21.6 | 20 | |
| Injection Pressure | Mpa | 221 | 186 | |
| Shot Volume | cm³ | 665 | 792 | |
| Shot Weight(PVC) | g | 594 | 707 | |
| oz | 20.9 | 24.9 | ||
| Injection Speed | g/s | 173 | 231 | |
| Plasticizing Capacity | g/s | 46 | 59 | |
| Screw Stroke | mm | 280 | ||
| Screw Speed | rpm | 147 | ||
| POWER UNIT | Hydraulic System Pressure | Mpa | 17.5 | |
| Pump Motor Power | kW | 22-40.1 | ||
| Heater Power | kW | 15.95 | ||
| GENERAL | Oil Tank Capacity | L | 420 | |
| Machine Weight | T | 8.2 | ||
| Machine Dimensions(L*W*H) | m | 5.85x2.1x2.03 | ||
Trade Show
After Sales Service
Certifications
Packaging & Shipping
Please feel free to consult us for more information.
Thanks~
