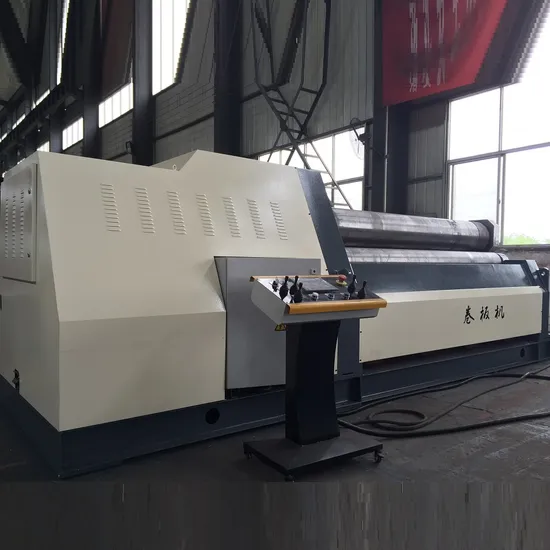

4-Roller Plate Rolling Machine for Pressure Vessel

Product Description

All Types of Plate Rolling MachineProduct Description
Plate rolling machine: with the work roll bending sheet, and then form a shape, can form cylindrical parts, conical parts and other different shapes of parts, is a very important processing equipment.The working principle of the plate rolling machine is through the action of external forces such as hydraulic pressure and mechanical force to move the work roll, so that the plate bending or bending forming.According to the rotating motion and position change of the work roller of different shapes, the elliptic parts, arc-shaped parts, cylindrical parts and other parts can be processed.Product Parameters
Three-roll bending machine with bottom rollers horizontal adjustment

Model	Max.rolling thickness (mm)			Max.pre-rolling thickness (mm)				Plate width (mm)		Diameter of upper roller (mm)			Main motor power (kw)
W11XNC-35*3000	35			30				3000		520			37
W11XNC-40*2500	40			35				2500		510			37
W11XNC-40*3000	40			35				3000		550			45
W11XNC-40*4000	40			32				4000		630			45
W11XNC-45*3000	45			40				3000		600			45
W11XNC-45*4000	45			40				4000		680			55
W11XNC-50*4000	50			45				4000		720			55
W11XNC-55*3000	55			45				3000		630			55
W11XNC-55*4000	55			50				4000		790			55
W11XNC-60*3000	60			50				3000		670			55
W11XNC-60*4000	60			55				4000		810			75
W11XNC-65*4000	65			60				4000		840			75
W11XNC-70*3000	70			60				3000		730			75
W11XNC-70*4000	70			65				4000		880			90
W11XNC-75*3000	75			65				3000		750			75
W11XNC-80*3000	80			70				3000		780			75
W11XNC-80*4000	80			75				4000		900			90
W11XNC-90*3000	90			75				3000		800			90
W11XNC-100*3000	100			90				3000		840			90
W11XNC-110*4000	110			90				4000		960			110
W11XNC-120*3000	120			100				3000		920			110
W11XNC-120*4000	120			100				4000		1020			132
W11XNC-130*3000	130			110				3000		980			132
W11XNC-160*3000	160			130				3000		1100			160
W11XNC-160*4000	160			130				4000		1280			180

Mechanical non - symmetrical three - roll plate rolling machine

Specification		Max Tkickness of Coiled Plate(mm)				Max Width of Coiled Plate(mm)			Yielding Limit of Sheet Metal(mm)				Coiling Speed (m/min)			Min Full Loading Diameter Coiled Plate(mm)					Diameter of Top shaft(mm)			Diameter of Bottom shafts(mm)			Central Distance between Bottom Shafts(mm)					Motor Power(KW)
W11-2*1000		2				1000			245				6			250					120			120			120					2.2
W11-2*1200		2				1200			245				8.1			250					120			120			120					2.2
W11-2*1600		2				1600			245				8.1			250					130			130			130					2.2
W11-2*2000		2				2000			245				8.1			250					130			130			130					2.2
W11-4*1000		4				1000			245				5.4			300					140			140			140					3
W11-4*1200		4				1200			245				5.4			300					140			140			140					3
W11-4*2000		4				2000			245				5.4			350					150			150			150					3
W11-6*1000		6				1000			245				5.4			350					140			140			140					3
W11-6*1500		6				1500			245				5.4			400					150			150			150					4
W11-6*2000		6				2000			245				5.4			400					160			160			160					4

Ship plat rolling machine

Model	Max.plate thickness(mm)			Plate width(mm)		Main motor power(kw)
W11NC-20*8000	20			8000		45
W11NC-25*12000	25			12000		55
W11NC-30*12000	30			12000		75
W11NC-30*16000	30			16000		110
W11NC-40*18000	40			18000		2*75
W11NC-40*21000	40			21000		2*75

Up-Roller Universal Plate Rolling Machine

Model	Max.rolling thickness(mm)			Max.pre-rolling thickness(mm)				Plate width(mm)		Diameter of upper roller (mm)			Main motor power(kw)
W11SNC-9*5000	9			7				5000		400			11
W11SNC-8*6000	8			6				6000		430			15
W11SNC-10*6000	10			8				6000		450			15
W11SNC-10*9000	10			8				9000		530			15
W11SNC-12*6000	12			10				6000		470			15
W11SNC-12*9000	12			10				9000		540			22
W11SNC-16*6000	16			14				6000		510			22

Hydraulic symmetrical plate rolling machine

Model	Max.rolling thickness(mm)			Plate width(mm)		Diameter of upper roller(mm)			Main motor power
W11NC-25*2000	25			2000		320			15
W11NC-25*2500	25			2500		380			15
W11NC-30*2000	30			2000		360			15
W11NC-30*2500	30			2500		420			22
W11NC-30*3000	30			3000		450			30
W11NC-40*3000	40			3000		540			37
W11NC-50*3000	50			3000		580			45
W11NC-60*3000	60			3000		660			55
W11NC-70*3000	70			3000		710			55
W11NC-80*3000	80			3000		770			75
W11NC-90*3000	90			3000		820			75
W11NC-100*3000	100			3000		860			90
W11NC-110*3000	110			3000		900			90
W11NC-120*3000	120			3000		950			110

Mechanical symmetrical three - roll plate rolling machine

Specification	Max thickness of coiled plate(mm)			Max width of coiled plate(mm)				Yieldinglimit of sheet metal (Mpa)		Diameter of top shaft (mm)			Main power (kw)
W11-4*1500	4			1500				245		150			3
W11-6*1500	6			1500				245		160			4
W11-6*2000	6			2000				245		185			5.5
W11-6*3200	6			3200				245		240			7.5
W11-8*2000	8			2000				245		230			5.5
W11-8*2500	8			2500				245		230			7.5
W11-12*2000	12			2000				245		240			7.5
W11-12*2500	12			2500				245		260			7.5
W11-12*3000	12			3000				245		280			11
W11-16*2000	16			2000				245		260			7.5
W11-16*2500	16			2500				245		300			11
W11-16*3200	16			3200				245		340			15
W11-20*2000	20			2000				245		280			11
W11-20*2500	20			2500				245		340			15
W11-25*2000	25			2000				245		330			15
W11-25*2500	25			2500				245		380			22
W11-30*2500	30			2500				245		400			30
W11-30*3000	30			3000				245		450			37

Four-rolls plate rolling machine

Model	Max.rolling thickness(mm)			Max.pre-rolling thickness(mm)				Plate width(mm)		Diameter of upper roller(mm)				Main motor power(kw)
W12NC-25*2000	25			20				2000		350				22
W12NC-25*2500	25			20				2500		400				37
W12NC-30*2000	30			25				2000		300				37
W12NC-30*2500	30			25				2500		400				37
W12NC-30*3000	30			25				3000		470				45
W12NC-40*3000	40			32				3000		550				55
W12NC-50*3000	50			40				3000		610				55
W12NC-60*3000	60			50				3000		670				75
W12NC-70*3000	70			60				3000		730				75
W12NC-80*3000	80			65				3000		780				90
W12NC-90*3000	90			75				3000		820				90
W12NC-100*3000	100			80				3000		880				110

Detailed Photos
Three-roll rolling machine with bottom rollers horizontal adjustmentMechanical non - symmetrical three - roll plate rolling machineShip plat rolling machineUp-Roller Universal Plate Rolling MachineHydraulic symmetrical plate rolling machineFour-rolls plate rolling machineCompany Profile
