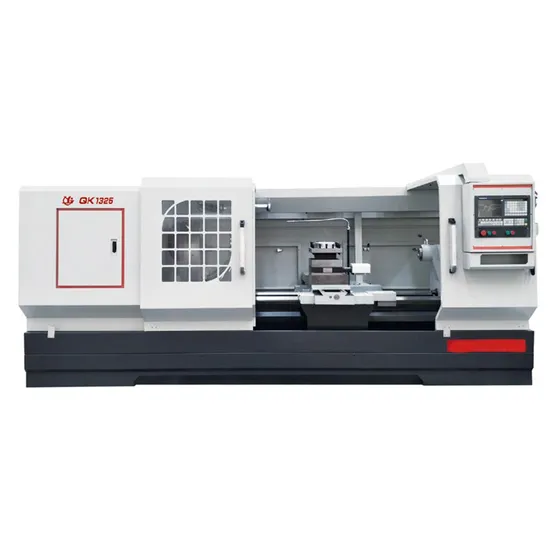

CNC PIPE THREADING LATHE INTRODUCTION
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch,module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining,chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coup- ling and so on.
FEATURES
• Big spindle bore and double chuck to ensure process big diameter pipe
• One-piece bed adopts high strength iron to ensure rigidity and precision
• Ultrasonic frequency quenched guide-ways ensure good wear-resistance
• Carriage and guide way contact surface use Turcite B to maintain accuracy
Standard Accessories
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield
OPTIONAL ACCESSORIES
Fanuc or other brand CNC controller, quick change tool post, hydraulic turret or power turret, hydraulic tailstock, full-shield


Product Parameters

		SPECIFICATION	UNIT	QK1325 Manual HYD.		QK1327C Manual HYD.
Capacity		Swing over bed	mm	800		800
		Swing over cross slide	mm	480		480
		Distance between centers	mm	1000/1500/3000		1000/1500/3000
		Guideway width	mm	50-250		50-270
		Max. load capacity	mm	600		600
		Spindle bore	T	4		4
Spindle		Spindle bore taper	mm	255		280
		Spindle nose type	-	VF. 4 steps	HYD. 4 steps	VF. 4 steps	HYD. 4 steps
		Spindle speed range	rpm	20-420		20-420
		Chuck	mm	φ630 3-jaw manual		φ630 3-jaw manual
Turret		Turret/tool post		-
		Tool shank size	mm	32x32		32x32
Feed		X axis travel	mm	420		420
		Z axis travel	mm	750/1250/2750		750/1250/2750
		X axis rapid traverse	mm/min	4000		4000
		Z axis rapid traverse	mm/min	6000		6000
Tailstock		Tailstock quill diameter	mm	φ120		φ120
		Tailstock quill taper	-	MT6		MT6
		Tailstock quill travel	mm	250		250
Motor		Main spindle motor	kW	15		15
		Coolant pump motor	kW	0.125/0.37		0.125/0.37
Dimension		Width x Height	mm	1930x1900		1930x1900
		Length	mm	3600/4100/5600		3600/4100/5600
Weight		Net weight	T	6.0/6.5/7.5		6.2/6.7/77
