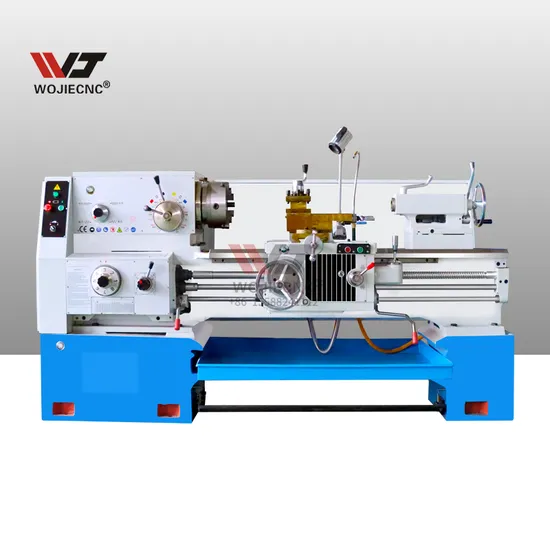

Multifunctional Horizontal Lathe Conventional Horizontal Lathe Manual Lathe Swing 400 Ca6140
Basic Info.
Model NO.
CA6140
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
100mm
Swing Over Carriage
300mm
Swing in Gap
720mm
Effective Gap Length
210mm
Length of Work Piece
1000/1500/2000/3000/4000mm
Width of Bed
400
Section of Turning Tool Changer
25*25mm
Spindle Speeds
10-1400rpm/16-1400rpm 24steps
Hole Through Spindle
52mm/80mm/105mm
Top Slide Travel
140mm
Cross Slide Travel
320mm
Tail Stock Spindle Travel
150mm
Tail Stock Spindle Diameter
75mm
Taper of Tail Stock Spindle Center Hole
No.5
Number of Feeds
64 Kinds/for Each
Transport Package
The Machine Will Be Packed by The Plywood Case
Specification
2700*1140*1750mm
Trademark
WOJIE
Origin
China
HS Code
8458190000
Production Capacity
150 Sets/Month
Packaging & Delivery
Package Size
270.00cm * 114.00cm * 175.00cm
Package Gross Weight
2800.000kg
Product Description
Product DescriptionProduct Parameters
| Type | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 |
| Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
| Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. swing in gap | 630mm | 720mm | 830mm | 880mm | 1020mm |
| Max. effective length in gap | 210mm | ||||
| Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
| Width of bed | 400mm | ||||
| Section of turning tool | 25×25 mm | ||||
| Main spindle motor | 7.5kw(10HP) | ||||
| Spindle | |||||
| Spindle speed | 16--1400rpm(24step) | ||||
| Spindle bore | 52mm (80mm),(105mm) | ||||
| Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113:20] | ||||
| Feed | |||||
| NO. of feed | (64 kinds)(for each) | ||||
| Range of metric threads | (1-192mm) (44 kinds) | ||||
| Range of inch threads | (1-24tpi) (21kinds) | ||||
| Range of module threads | 0.25-48 (module 39 kinds) | ||||
| Range of diametral pitch threads | 1-96DP (37 kinds) | ||||
| Tailstock | |||||
| Max. tailstock spindle travel | 150mm | ||||
| Tailstock spindle diameter | 75mm | ||||
| Taper of tailstock spindle centre hole | 1-96DP (37 kinds) | ||||
| Packing dimensions (L*W*H) | |||||
| Overall dimensions for 750mm | 2440×1140×1750mm | ||||
| Overall dimensions for 1000mm | 2700×1140×1750mm | ||||
| Overall dimensions for 1500mm | 3200×1140×1750mm | ||||
| Overall dimensions for 2000mm | 3700×1140×1750mm | ||||
| Overall dimensions for 2200mm | 4030×1140×1750mm | ||||
| Overall dimensions for 3000mm | 4800×1140×1750mm | ||||
| Overall dimensions for 4000mm | 5680×1140×1750mm | ||||
| Weight (kg) | |||||
| Overall dimensions for 750mm | 2100 | 2170 | 2300 | 2400 | 2520 |
| Overall dimensions for 1000mm | 2200 | 2260 | 2380 | 2580 | 2720 |
| Overall dimensions for 1500mm | 2380 | 2450 | 2577 | 2830 | 3000 |
| Overall dimensions for 2000mm | 2750 | 2800 | 3000 | 3050 | 3300 |
| Overall dimensions for 2200mm | 2800 | 3000 | 3150 | 3400 | 3500 |
| Overall dimensions for 3000mm | 3300 | 3500 | 3600 | 4000 | 4220 |
| Overall dimensions for 4000mm | 3500 | 3800 | 3950 | 4600 | 4900 |
Detailed Photos
Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.2. What does your company mainly produce?A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.3. When is the delivery time?A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.4. What are your trade terms?A: FOB, CFR, CIF, DDP, DAP, FCA, etc.5. What is your minimum order quantity and warranty period?A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.6. What is the packaging of the machine?A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
