MDF/Plywood/Particle Board Short Cycle Melamine Lamination Hot Press Production Line/ Lamination Hot Press in Double Sides/ Woodworking Melamine Lamination Pres

Product Description

1,Short-cycle melamine lamination hot press
We could produce all kinds of hot pressing machine, widely used in wood processing, building materials and decoration...etc. The short-cycle melamine lamination hot press is suitable for the melamined processing of particle board, MDF, melamine impregnated paper and high density laminated flooring ACP wear-resisting paper.Variety specification includes 4*8, 4*9, 5*8, 5*9, 6*8, 6*9, 7*9, 6*12...etc.
1. The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure, strong rigidity, and ensure high pressure.
2. PLC control system is made by good quality hydraulic unit, fast press, accurate press, high efficiency.
3. The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
4. The steam system is designed as a "double entering and double exiting" arrangement to ensure even temperature distribution in hot platens.
5. Low motor power, power-free falling of hot platens save power consumption and decrease pre-production cost.
6. Hot press is the main equipment for plywood, blockboard, bamboo plywood, decorative and fancy plywood. For multipurpose and wide application in wood-based panel industry,specially for plywood manufacture.
7. The automatic electric apparatus is easy and reliable in operation,and the automatic temperature and time control ensures the quality of products.
8. we can make according to customer requires.
9. Our products have high quality and competitive price.
2, Equipment List

NO	Name	Quantity
1	Driven roller conveyor	1 set
2	Hydraulic lifter with rollers	1 set
3	Board pusher	1 set
4	Cleaning brusher	1 set
5	Alignment roller table	1 set
6	Vacuum carrier for loading	1 set
7	Paper frame	1 set
8	Belt conveyor loader	1 set
9	Single opening press	1 set
10	Vacuum pad unloader	1 set
11	Auto trimmer for 4 sides edges	1 set
12	Vacuum carrier with inspector	1 set
13	Alignment roller table	1 set
14	Stacking roller for good boards	1 set
15	Stacking table for defective boards	1 set

3, Main technical data of short cycle laminating hot press

No.	Name	Parameter	Remark
1	inished board size	2440 x 1220 mm
2	Working pressure	16000 KN(1600T)
3	Feeding direction	From length side
4	Size of heating platen	1400×2600×140/100 mm	Made in Kunshan
5	Daylight opening	200 mm
6	Main cylinder (Diameter, stroke)	Ф320mm×8, 200 mm	Made in Wuxi
7	Lifting cylinder (Diameter, stroke)	Ф63mm×4, 200mm	Made in Wuxi
8	Oil pressure of hydraulic system	<=25Mpa
9	Closing time	<=2 s
10	Temperature of heating plate	<=210ºC
11	Temperature accuracy of heating platen	±2ºC
12	Heating medium	Heat transfer oil	Prepared by buyer
13	Heat energy allocation	40×10 kcal/h4	Boiler prepared by buyer
14	Accuracy of plane	0.2 mm
15	Main frame thickness	60 mm
16	Motor power	30kw

4, Flow Chart of Production Line

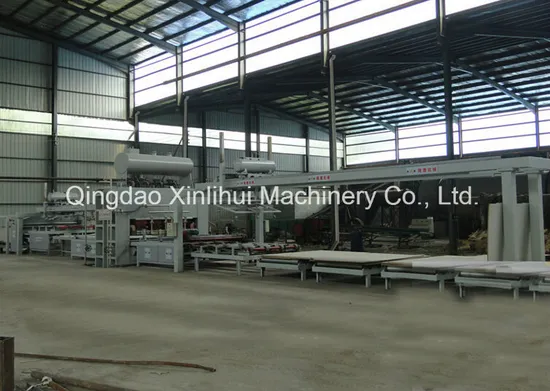

5, Production line pictures details:
6 Other similar production line and Sample show
