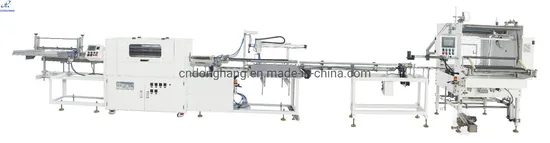

Cup Curling and Packing Machine for PP. PS Pet, PVC Cup
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
DHJBJ-120-4 and DH-650
Making Method of Parison
Feeding Cup,Curling,Completed Cupand Stacking
Automation
Automatic
Computerized
Computerized
Certification
CE
Power
380V/50Hz
Capacity
10-25PCS/Min
Air Pressure
0.6MPa
Size
5200*1100*1300mm
Speed
600-900PCS/Minute
Transport Package
Wooden Packaged or Stretch Film Packaged
Specification
CE, SGS
Trademark
DONGHANG
Origin
China
HS Code
84774090
Production Capacity
50 Sets/Month
Product Description
Product DescriptionThe machine is suitable for sheet of PVC, PS, PET, PP etc, to make curling the mouth cup and pack the cups.
CHARACTERISTICS:
The machine is combined with pneumatic, mechanical and electrical system. The machine is achieved to automatic continuous working feeding cup, curling, completed cup and stacking.
| Max. Speed of Curling | 600-900pcs |
| Max. Dia. Of Curling | 50-120mm |
| Main Motor | 1.5Kw |
| Feeding Motor | 0.09Kw |
| Heating Power | 10Kw |
| Overall Size | 5200×1100×1300mm |
| Power | 380V/50HZ |
| Weight | 0.9T |
| Air Pressure | 0.6MPa |
AUTO.PLASTIC CUP PACKING MACHINE
Model:DH-650 Technical Parameter
| Capacity | 10-25pcs |
| Dia of Curling | 40-95mm |
| Packing length | 520-650mm |
| Packing Material | HDPE,LDPE,PP,POF |
| Thickness of Packing Film | 15-40um |
| Total Power | 4.5kw |
| Air Source | 0.6Mpa |
| Weight | About 700kg |
