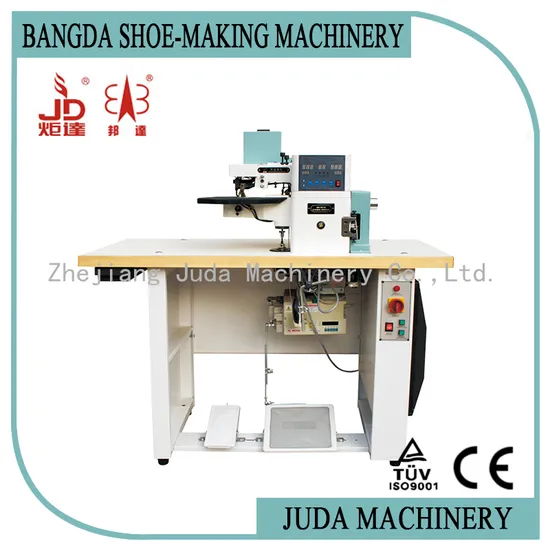

Shoe Insole Folding Leather Folding Machinery Shoe Making Machine

Product Description

Model	BD-291A
Power of motor	0.55kW
Package size	1430×730×1300mm
Net weight	110kg
Gross weight	150kg

USE
This machine is suitable for PVC, PU, leather, artificial leather and other materials in leather product industry such as shoes, luggage box, mobile phone cases, etc. The machine adopts hot melt adhesive to complete gluing and folding automatically. It can also conduct insole folding work by changing components.
CHARCTERS
1. In order to make the entire operation process intelligently controlled, a computer chip system is adopted.
2. Control panel, melt glue temperature, glue flow, and rubber temperature infinitesimal adjustment can be showed in touch digital display.
3. While external bend folding,electromagnet drive controls the slow speed automatically.
4. It can conduct automatic cutting for inner bend folding. Equipped with double protection for glue exudation system, the machine is able to realize automatic glue suction without hanging glue.
5. Servo electronic motor realizes automatic positioning which saves energy (save power) by 40%.
6. The adjustment range of folding width is 3 - 6.5 mm. Reinforcing band can be folded together so as to strengthen tensile strength of edge of leather.
7. It can realize French piping and insole folding by replacing components.
8. It is convenient to adjust and make folding fine, flat with uniform width and beauty by advanced folding mechanism.
