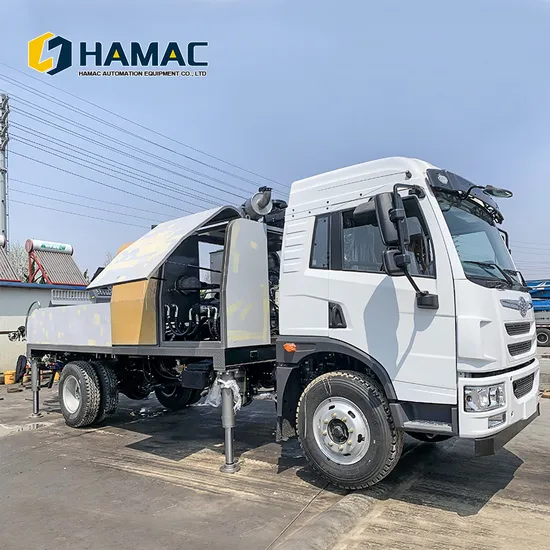

Truck Mounted Concrete Pump Electric Line Pumping Machinery Diesel Engine for Sale Concrete Truck Pump

Product Description

ITEM			UNIT	SPECIFICATION
Model				HMC5141THB
Driving System	Chassis Brand			FOTON DAIMLER, Left Drive
	Chassis Model			BJ1113VFPHG-RA
	Fuel Type			Diesel
	Displacement/Power		L/KW	6.7/156
	Displacement Standard			Euro III
	Tyre Model			8.25R20
	Axle Base		M	5.0
	Quantity Of Axles			2
	Max. Driving Speed		Km/H	90
	Front Wheel Base		Mm	1900
	Back Wheel Base		Mm	1800
	Min. Turning Radius		M	9
Pumping System	Brand Of Diesel Engine			DEUTZ Brand
	Diesel Engine Model			BF6M1013-25T3R
	Diesel Engine Power		KW	186
	Driving Mode			Hydraulic Driving
	Oil Cylinder Inner Diameter × Stroke		Mm	Ф180×Ф125×1800
	Concrete Cylinder Inner Diameter × Stroke		Mm	Ф230×1800
	Oil Pressure Of System		MPa	32
	Switch Of H-Pressure And L-Pressure			Equipped
	Fuel Tank Capacity		L	290
	Oil Tank Capacity		L	600
	Cooling Mode Of Hydraulic System			Fan Cooling
	Max. Theoretical Capacity		M3/H	H-Pressure	55
			M3/H	L-Pressure	100
	Pumping Distance (H-Pressure)	Max. Horizontal	M	125A Pipe	880
		Max. Vertical	M	125A Pipe	220
	Hopper Capacity		M3	0.6
	Feeding Height		Mm	≤1500
	Concrete Slump		Cm	14~23
	Max. Aggregate Diameter		Mm	Crushed Stone: 40 / Pebble: 50
	Valve			S Valve
	Water Pump For Cleaning			Equipped
	Concrete Pipe Cleaning Mode			Water Cleaning
	Water Tank Capacity		L	400
	Lubrication Mode			Automatic
Overall Dimension	Length (Mm)*Width (Mm)*Height (Mm)		Mm	9195*2458*2623
Full-Load Total Weight			Kg	13500

HAMAC has been in this field approximate 30 years already. Weare a company who is providing
the customer with machinery ofhigh quality but reasonable price. We established branches
indifferent countries to provide the local service for our machinesWe have local office in The
Philippines, Indonesia, Peru,Ethiopia etc. You are also welcomed to visit our local office in our
country.
★ How can we guarantee quality?
HAMAC owns a strict quality control system. For all the originalparts, HAMAC will check them one
by one to ensure the qualityAfter the product is finished, we have a quality control team tocheck
them according to our quality control procedures.
★ what can you buy from us?
Construction Machinery, Engineering Machinery, ConcreteBatching Plant, Concrete Pumps, Mining
Crushing Machinery.
★ why should you buy from us not from other suppliers?
· Over decades experience in construction & mining machinery;
· Professional sales team and technical support,
· Abundant export service & logistic service,
· Several professional production bases to provide you with goodquality machine in short time.
★ what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DAF
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,Western Union,
Language Spoken:English,Chinese,Spanish,French,Russian
