Heavy Duty Torno Control Fanuc CNC Lathe Qk1350 CNC Pipe Threading Lathe

Product Description

Product Description

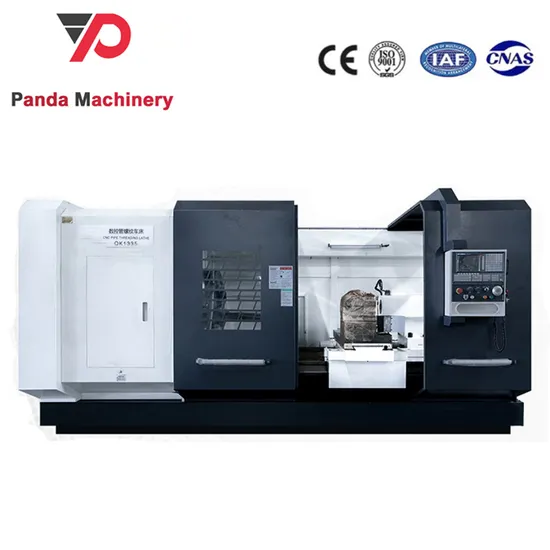

Heavy duty torno control fanuc cnc lathe QK1350 cnc pipe threading lathe
CNC PIPE THRADING LATHE APPLICATION This series CNC pipe threading lathe is meainly designed for processing internal and external pipe threads, including metric,inch and taper threads.
CNC PIPE THREADING LATHE INTRODUCTION This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch,module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on. FEATURES Big spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide way contact surface use Turcite B to maintain accuracy

SPECIFICATION	Units	QK1332	QK1338	QK1343	QK1350
Swing over bed	mm	1000	1000	1000	1200
Swing over cross slide	mm	610	610	610	710
Distance between centers	mm	1500/3000	1500/3000	1500/3000	1500/3000
Pipe threading range	mm	190-320	190-380	270-430	330-510
Guideway width	mm	755	755	755	755
Max. load capacity	T	6	6	6	6
Spindle bore	mm	330	390	440	520
Spindle speed steps	-	VF. 3 steps	VF. 3 steps	VF. 3 steps	VF. 3 steps
Spindle speed range	rpm	10-280	8-205	8-205	8-190
Chuck	mm	4-jaw electric	850mm 4-jaw electric	φ1000 4-jaw electric	φ1000mm 4-jaw electric
Turret/tool post	-	NC turret 4 position	NC turret 4 position	CNC turret 4 position	CNC turret 4 position
Tool shank size	mm	40 x 40	40 x 40	40 x 40	50 x 50
X axis travel	mm	520	520	520	520
Z axis travel	mm	1250/2750	1250/2750	1250/2750	1250/2750
X axis rapid traverse	mm/min	4000	4000	4000	4000
Z axis rapid traverse	mm/min	4000	4000	4000	4000
Tailstock quill diameter	mm	φ160	φ160	φ160	φ160
Tailstock quill taper	-	MT6	MT6	MT6	MT6
Tailstock quill travel	mm	300	300	300	300
Main spindle motor	kW	22	22	22	22
Coolant pump motor	kW	0.125	0.125	0.125	0.125
Weight for 1500	kg	11500	12000	13000	15000
Weight for 3000	kg	12500	13000	14000	16000
Dimension for 1500	mm	5000x2080x2080	5000x2220x2120	5000x2220x2120	5000x2300x2200
Dimension for 3000	mm	6500x2080x2080	6500x2220x2120	6500x2220x2120	6500x2300x2200

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield	Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

Detailed Photos
CNC : GSK980TC3, servo motor,Servo driver 320mm Manual 3 jaw chuck Manual tail stock 4 station electric tool turret Automatic lubrication system, cooling system.Lighting system Standard packing list, Tool box 380v 50hz 3phases Sample Products
