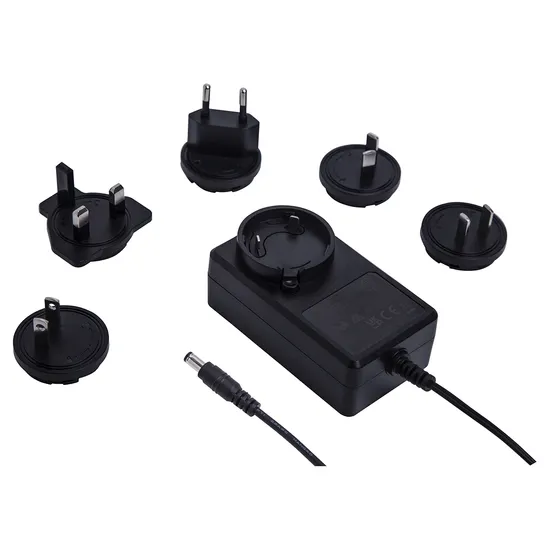

Detachable Plug 4.2V 8.4V 12.6V 16.8V 12V 24V 36V 44.8V 0.5A 1A 1.5A 2A 2.5A 3A 4A Lithium or Lead Acid Battery Charger
| US$2.50-2.85 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
GYX-1680250-Ca
Certification
TUV, RoHS, ISO9001, CCC, SAA, PSE, GS, ETL
Color
Black or White
Type
OEM
Internal Structure
On-Off Type
Power Source
Single End Type
Connection
Plug In
Protection
Ocp, Ovp, Over-Charging, Short Circuit Protection
Input
100-240V/1.5A
Output
16.8V/2.5A
Material
PC Fireproof Material, ABS
AC Plug
Us EU Au UK Ar Jr Kr Brazil Argentina
Energy Efficiency
DOE VI
Certificates and Approvals
Kc ETL CE GS PSE SAA Ukca, etc
Warranty
3 Years
AC/DC Cable
1m/1.5m/Customized
DC Connector
5521, Aviation Plug, Xt60, Xiao Mi, XLR, etc
Operating Temperature
0~40ºC
Storage Temperature
-20ºC-85°c
Mtbf
50000 Hours
Transport Package
PE Bag Inside, Independent Box Outside
Specification
82*48.2*30.9mm
Trademark
GYX
Origin
Guangdong China
HS Code
8504409999
Production Capacity
300000PCS/Month
Packaging & Delivery
Package Size
15.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Product Description| Input | voltage range | 100-240VAC |
| frequency range | 47-63Hz | |
| standby power | 0.3W | |
| efficiency | DOE VI /V | |
| AC input current | 1.5A max at 100VAC at full load | |
| inrush current | 30A Max. @110Vac/60Hz | |
| 60A Max. @230Vac/50Hz | ||
| Output | DC voltage range | 12V max |
| voltage tolerance | ±5% | |
| load current | 3A max | |
| range power | 48W max | |
| line regu lation | ±1% | |
| load regu lation | ±5% | |
| AC plug | US EU UK AU KR BR AR others | |
| DC connector | 5521,5525,aviation plug,C13,Anderson(50A),Lotus plug,XRL(CANNON),XT60,XT90,cigarette lighter plug,etc | |
| DC cord | 1m/1.2m /1.5m / 1.8m /2m /3m,other as your requirment | |
| Operating temperature | 0°C-40°C | |
| Storage temperature | -20ºC-85°C | |
| Protection | over voltage protection,over current protection,short circuit protection | |
| Safety approvals | U L62368/ U L60950/ U L1310/U L 60601/CE/ GS/ SAA/ KC KCC/ PSE/ RCM | |
| MTBF | 50000 hours | |
| Warranty | 36 months | |
| LED indicator light | red---in the charging green---fully charged/no load | |
| Test | 100 fu ll load burn-in test | |
| Application | LED lighting, home applications,E-bike,E-scooter,E-bicycle,E-tools,electric drift trike battery charging,etc. | |
| Package | PE bag inside,white box and carton outside | |
| Carton Size | 46*39*26cm | |
Certificate
FAQ 1.When can I get the quotation ?
GYX: within 24 hours.If you are in a hurry, please call us or email us.
2.What about the lead time for mass production ?
GYX:About 15 days.
3.What about the warranty of your products ?
GYX:We offer 3 year warranty for all the products.
4.How long has your company been in business?
GYX:15 years, and we have 15years experience in lithium battery charge.
5.Does your company have U L certification?
GYX:Yes, we have a lot of U L certifications for different items, and our company are the U L Standard Technical Panel Member.
6.What is your factories capacity for power supply & charger?
GYX:10000~15000pcs per day.
7.What is your payment method?
GYX: T/T in advance, Paypal , Western Union,Pay on ****** and etc.
