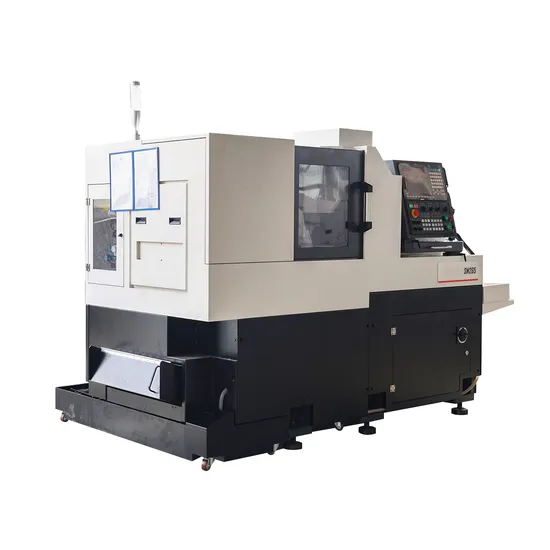

Swiss CNC Lathe Machine with 8, 000 Rpm for Enhanced Precision Work

Product Description

Product Description
Discover the unparalleled versatility and precision of the Swiss-style lathe, renowned as the CNC automatic lathe. This engineering masterpiece in precision processing machinery offers a comprehensive suite of functions, including tapping, milling, drilling, and turning, all executed with unmatched accuracy. With its revolutionary dual spindles and avant-garde double Y-axis, this machine is designed for simultaneous processing, dramatically minimizing processing time. It truly shines in the batch production of intricate, non-standard components, excelling in crafting precision hardware and shafts that require specialized shaping solutions.
Product Parameters

Items		SX325
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub8,000min-1
	Max.Turning Diameter	φ32mm
	Main Spindle Stroke	280mm
	Rapid traverse speed	32m/min(X1:24m/min)	24m/min
Tools	O.D Tools	6X [16×16]
	I.N Tools	5X [φ20-ER16]
	Cross Driven Tools(integration)	4X [ER16]
	Back end tools(fixed)	4X [ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	0.55/1.1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.9KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	3,800Kg
	The size (L×W×H)	2581×1563×1791mm
NC NC Control	/Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Hand wheel	/C+ Main/Sub axis C + brake
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Long after loading device
	Chip conveyor	Rectangular power seat
	Oil cooler	Dynamic seat adjustable Angle
	Gun drill	After the end of the quick change perspective
	Oil mist collector	2[ER16]+1 [ER16] 2axis eccentricity tools (rotating)+1axis (fixed)
	High pressure pump	3[ER16] 3axis eccentricity tools (rotating)
	Thread whirling rings	3+[ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

Detailed Photos
Application
Applications of Swiss Machining
Originally pioneered in the Swiss watchmaking industry, Swiss machining has now extended its reach to a multitude of sectors, transforming processes across industries. Various sectors reaping the benefits of this state-of-the-art technology include:
1) Aerospace
The aerospace sector significantly benefits from the intricate parts crafted through Swiss machining. Precision components such as fans and fasteners are manufactured using Swiss machines, with metals like aluminum alloys and steel ensuring both precision and durability.
2) Medical devices
In the medical industry, Swiss-type lathe products are instrumental for producing delicate components with impeccable precision. This machining method is pivotal in manufacturing surgical instruments and implants, highlighting the transformative impact of Swiss-type lathe technology on medical device production.
3) Electronics
As the demand for compact and complex electronics grows, traditional lathes become less effective. Manufacturers have turned to advanced CNC Swiss machining, which excels in producing intricate electronic components such as connectors and pins with remarkable precision and efficiency.
4) Automotive
In the automotive industry, Swiss machining solutions play a vital role, propelling the latest mechanical innovations forward. This technology enables the creation of smaller, more complex components that are critical for modern vehicles.
Auto manufacturers harness this advanced technology to produce suspension components, carburetor covers, and engine parts, enjoying substantial benefits such as cost reduction, optimized manufacturing processes, and increased production speeds.
Our Advantages
1. Professional Supplier: Trust in our seasoned team, committed to delivering superior precision machinery solutions tailored to your exact needs.
2. Best Quality: Encounter unrivaled quality standards that assure reliability and peak performance, reflecting our unwavering commitment to excellence.
3. Best Service: Delight in outstanding customer service where your satisfaction is our priority, ensuring a smooth and seamless experience from initial inquiry to final delivery.
4. Best Price: Enjoy our competitively priced offerings that provide exceptional value without compromising on quality or service.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price
