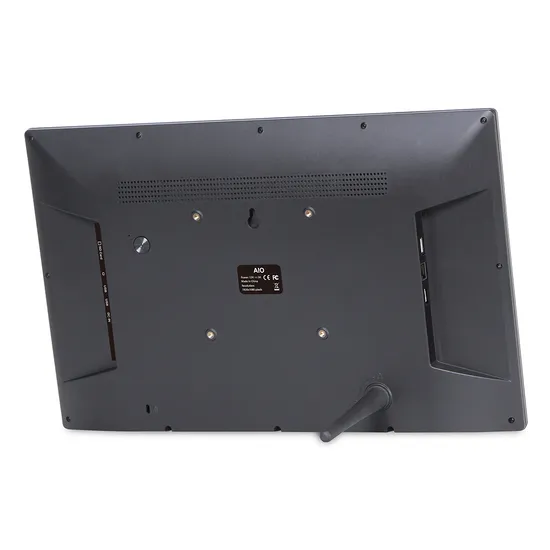

OEM Wall Mounted Indoor WiFi Commercial Advertising Media Display TFT Panel Rk3288 Android 18.5 Inch Poe RJ45 NFC Feedback Pcap Touch Screen LCD Ad Player

Product Description

HYY Products Advantage:
We Produce Floor Stand Advertising LCD Display, Wall Mount LCD Screen, Android Tablet, Infrared/Capacitive/Resistive Touch Screen, Industrial PC, Digital Signage and so on. The size is available from 7 inch to 86 inch. CE, ROHS certificate, exported to more than ninety countries (Germany, France, Spain, Belqium, Holland. USA, United Kingdom, Finland, Portugal, Australia, Singapore and so on).
Wall Mount/Table Stand Android Tablet for retail, restaurants (as Digital Menu Boards), hotels, Supermarket, school, hospital, Catering industry, Gym, corporate and so on, support Android/Windows/Linux OS.
1. Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc to meet variety of request from the market.
2. Support 7*24 Hours long time playback
3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Back Light, Different screen diagonal ,
10.1", 13.3", 15.6", 21.5", 32", 43", 49", 55", 65".
4. Metal housing and Plastic housing option.
5. With wall mounting bracket, support portrait or landscape installation. Android 7.1/9.0/10.0/11 available
6. Interface: sd card, usb, serial port, headphone jack, OTG port, rj45
7. POE part is optional
Floor Stand LCD Display for airport, hotel, Bank, Metro station and so on. support Android/Windows/Linux OS.
1. Support optional IR touch, Capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.
2. Support 7*24 Hours long time playback
3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Back light, Different screen diagonal ,
32", 43", 49", 55", 65".
4. Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.
5. Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.
Stretched Bar LCD Display for bus/metro, airport and other transportation, Shopping mall, retail shop, replacement of the traditional paper display and so on.
1. Greatly improving the layering of the picture, and better performance of details; Wide color range.
2. Sync play or Play as a video wall.
3. Shelf edge LCD display with narrow bezel, advertisements are displayed without blocking the sight of consumers.
4. Support WIFI/LAN, 3G/4G(optional).
Raspberry Pi LCD Screen for ATM, Fitness Equipment, Home Automation, Self-service Terminals, Vehicle Navigation, Industrial Device, Hospital, Printer Display and so on.
1. Top Seller size are 7 inch and 10.1 inch
2. 1024 x 600 resolution, with HDMI port
4. PCAP/Capacitive Touch Screen
5. TFT LCD Display Monitor
Related Products
Product Description

LCD size:	18.5 inch
CPU:	RK3566 Quad-core 64-bit processor
RAM:	2GB
ROM:	16GB
Operation system:	Android 5.1/6.0/8.1/9.0/11
Resolution:	1366*768
Viewing angles:	85/85/85/85(L/R/U/D)
Display mode:	IPS
Contrast ratio:	800:1
Luminance:	250cdm2
Aspect ratio:	16:9
Touch:	10 points capacitive touch
Bluetooth:	Bluetooth 4.0
USB	USB 2.0 *3
Power Jack:	DC Power Input
RJ45:	Ethernet interface
Speaker:	2*2W
Camera:	2.0MP
VESA:	75x75mm
Language:	Support multiple languages
Operating Temperature:	-20ºC-70ºC
Adapter:	12V, 3A

Product Sizes



FAQ 1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply 7'' 8'' 10.1'' 11.6'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. we supplied different customized service for customers, such as the color, camera, wheel, printer, card reader and so on.
4.Q: Which OS do you supply?
A: Windows, Android and Linux. The Version depending on customers' need.
5.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.
6.Q:How about the warranty?
A: We supply one year warranty.
7.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
8.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
