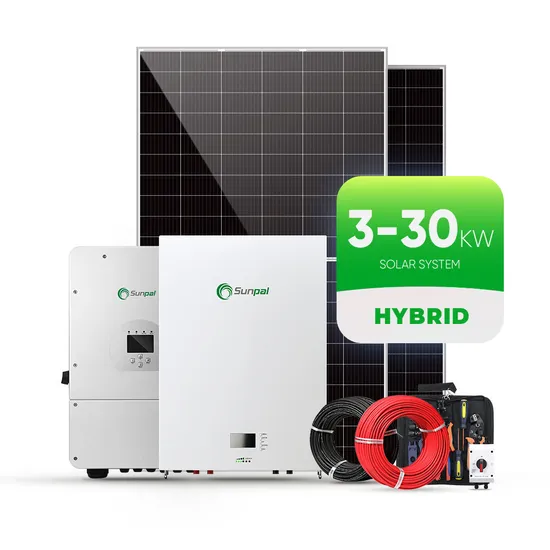

Sunpal Solar Energy System 25Kw 10 Kw Solar Power System Manufacturer From China
Basic Info.
Model NO.
Hybrid-SP3-30KW
Cycle Life
6000 Cycles @ 80% DOD
Nominal Capacity
3KW, 5KW, 10KW, 20KW, 30KW
Application
Home
Solar Panel Type
Monocrystalline Silicon
Battery Type
Lead-Acid, Lithium Ion
Controller Type
MPPT
Mounting Type
Ground Mounting
Output Voltage (V)
380-415V
Output Frequency
50/60HZ
Work Time (h)
Depend On Sunshine Duration
Product Name
Residential Hybrid Solar System
System Type
Off-grid Hybrid Solar Photovoltaic System
Inverter
Single Phase/Split Phase/3Phase
Battery
Lead Acid/LiFePO4 Lithium Battery
Mounting Structure
Customzied
Usage
Home Solar Energy Generation
Technical Support
Complete Technical Support
Transport Package
Wooden with Pallet
Specification
Solar Panel, Solar Inverter, Solar Battery
Trademark
Sunpal
Origin
China
HS Code
8501722000
Production Capacity
50sets/Day
Packaging & Delivery
Package Size
231.50cm * 112.50cm * 127.50cm
Package Gross Weight
1228.000kg
Product Description
Product DescriptionWarranty
How It Works
Specification
| Model | SP-3KW-HY | SP-5KW-HY | SP-10KW-HY |
| Half Cut Mono 550W Solar Panel | 6 Pieces | 10 Pieces | 20 Pieces |
| DC Disconnect Switch | 1 Piece | 2 Piece | 3 Pieces |
| Hybrid Inverter | SUN-3K-SG04LP1-EU | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| Wall Mounted LiFePo4 Battery | 5Kwh | 5Kwh | 10Kwh |
| DC Cable 4mm2 | 100 meter | 200 meter | 400 meter |
| AC Disconnect Switch | 1 Piece | 1 Piece | 1 Piece |
| MC4 Connector | 10 Pairs | 10 Pairs | 10 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||
| Model | SP-15KW-HY | SP-20KW-HY | SP-30KW-HY |
| Half Cut Mono 550W Solar Panel | 30 Pieces | 42 Pieces | 63 Pieces |
| DC Disconnect Switch | 4 Piece | 6 Piece | 9 Pieces |
| Hybrid Inverter | SUN-5K-SG03LP1-EU3 Pieces | SUN-5K-SG03LP1-EU3 Pieces | SUN-5K-SG03LP1-EU3 Pieces |
| Wall Mounted LiFePo4 Battery | 15Kwh | 20Kwh | 30Kwh |
| DC Cable 4mm2 | 600 meter | 800 meter | 1000 meter |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| PV Installation Tools | 1 Set | ||
N Type Topcon Mono 580W Solar PanelPeak Power Watts: 580WMaximum Power Voltage: 43.09V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.46ADimensions:2279x1134x30mm Weight:27.5 kgHybrid Solar Inverter48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging.Max.charging/discharging current of 240A Max.10pcs parallelDC couple and AC couple to retrofit existing solar systemMonitoring SystemOpen station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etcSupport full lifecycle data storage to ensure data security and reliabilityWall Mounted LiFePo4 Battery15-20 years design life. Up to 6000 + cycle IlfeWall mount or ground stack brick, simply connecting to inverter Battery module is scalable for any larger storage system.Battery modular built in high quality BMS. Protect battery cells all the way.Lithium iron phosphate battery cell, stay safe with battery storage at home.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.Mid & End Clamps: 35,40,45,50mmL Foot Asphalt Shingle Moount & Hanger Bolt OptionalCable Clip & Tie OptionalGround Clip & Lugs OptionalDC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)Rated Current: 55A,70AColors: Black For STD, Red Optional.Lifetime:≤25 Years DC & AC Disconnect Switch IP Rating: IP66Rated Voltage: 1000VDCConnection Type: M20,M25,MC4Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors AssemblyDisassembly ToolOur Factory
Packaging & Shipping
Project Case
