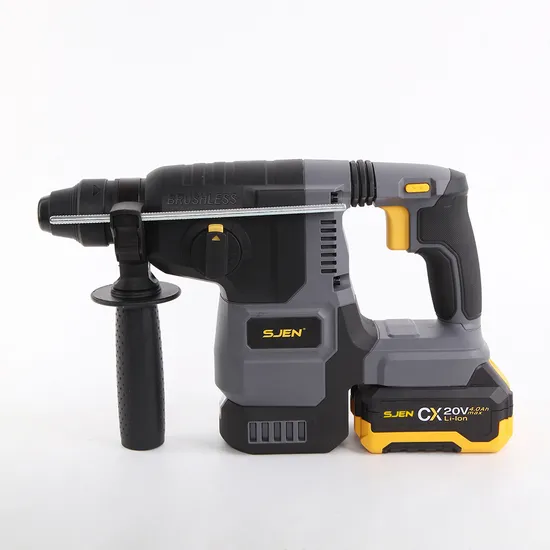

20V Cordless Brushless 26mm Electric Rotary Hammer Impact Drill
Basic Info.
Model NO.
20BL-26RHLI-01
Brand
OEM
Power Rating
1250W
Impact Rate
0-5000bpm
Impact Energy
2.6j
Power Supply Type
Battery Pack
Diameter of Bore
26mm
Unloaded Speed
0-1000rpm
Motor
Brushless
Accessories
1PC Guide Ruler, 1PC Auxiliary Handle
Function
Drilling, Hammer Drilling, Chiselling
Tool Holder
SDS Plus
Rotation
Reverse & Forward
Optional
Battery Pack, Battery Charger
Transport Package
Color Box
Specification
5pcs/ Carton(Size: 51x37x24.5cm)
Trademark
OEM
Origin
China
Production Capacity
50000PCS/Year
Product Description
Product Parameters| Model | 20BL-26RHLI-01 |
| Motor | Brushless |
| Rated Voltage | Max. 20V DC |
| No Load Speed | 0-1000rpm |
| Impact Rate | 0-5000bpm |
| Max Impact Power | 2.6J |
| Tool Holder | SDS Plus |
| Max. Drilling Diameter | Concrete 26mm, Steel 13mm, Wood 30mm |
| LED | Yes |
| Free Accessories | 1pc Guide Ruler, 1pc Auxiliary Handle |
| Optional | 20V Battery Pack 2Ah, 4Ah Battery Charger |
| Net Weight (without battery pack) | 2Kg |
The machine is intended for hammer drilling in concrete, brick and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.
Installation Instructions INSERTING SDS-PLUS DRILLING TOOLS
The SDS-plus drill chuck allows for simple and convenient changing of drilling tools without the use of additional tools.
• Clean and lightly grease the shank end of the tool before inserting.
• Insert the tool in a twisting manner into the tool holder until it latches itself.
• Check the latching by pulling the tool.
REMOVING THE TOOL
Push back the locking sleeve and remove the tool and store it safely.
SETTING THE OPERATING MODE
• With the function slector, the operating mode of the machine is selected.
• To change the operating mode, turn the function selector to the requested position.
