Bote Laser Fiber Laser Cutting Machine Manufacturer with CE/ISO

Bote Laser Fiber Laser Cutting Machine Manufacturer with CE/ISO

US$22,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BT-H12
Application
Home Appliance, Environmental Equipment, Agriculture Machinery, Food Machinery, Automotive Industry, Shoemaking Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Certification
CE, ISO
Laser Source
Max/Raycus/Bwt
Laser Head
Raytools/Osipri
Laser Power
1500W/2000W/3000W
X/Y-Axis Positioning Accuracy
0.03mm
X/Y-Axis Repositioning Accuracy
0.02mm
Tube Cutting Length
6m/9m/12m
Wavelength
1070nm
Application Material
Carbon, Steel, Stainless Steel, Copper, Aluminum
Water Chiller
Hanli
Transport Package
Plywood Case
Specification
8500*2350*2200mm
Trademark
Bote Laser
Origin
Guandong/China
HS Code
8456110090
Production Capacity
500 Sets/Month

Product Description

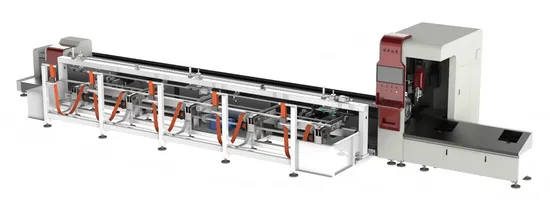

BOTE LASER TUBE CUTTING MACHINE
Product Description
The three-dimensional laser pipe cutting machine produced by our company is mainly used for cutting various pipes such as square pipes and round pipes, such as: 304# stainless steel pipes, 201# stainless steel pipes, galvanized pipes, brass pipes, aluminum pipes and other metal pipes . The cutting speed is fast, the efficiency is high, and the product incision is smooth and burr-free.
Feature introduction:
1. Small tube cutting artifact, ultra-short tail material, ultra-fast acceleration;
2. Cutting pipe diameter range: round pipe: ∅15-120mm; square pipe: mouth 15x15-120x120mm;
3. Professional small pipe cutting system: Bochu/Weihong (professional nesting software optional);
4. Laser power range: 1500-3000W;
Application
Fiber laser has a series of advantages,tube laser cutting machine has gradually been used more and more in tube processing companies.
Such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, carbon steel, alloy, brass, copper, titanium and other metal materials precision cutting. It is widely used in metal products, bicycle, metal furniture, fitness equipment, sports equipment, farm machinery, display shelf, fire control.

Laser Source Max/Raycus/Bwt Laser Power 1500W/2000W/3000W
Laser Head Raytools/Osipri Water Chiller HanLi


Laser cutting head: Ospri small tube special three-dimensional cutting head
1. The internal structure is completely sealed to avoid dust pollution;
2. The protective lens is installed in a drawer style and is easy to replace;
3. High-speed capacitive sensing non-contact automatic tracking system:
Laser generator: MAX/Raycus/Bwt
1. Excellent beam quality;
2. Maintenance-free operation;
3. Constant output power;
4. Modular "plug and play" design;
5. Integrated coupler or beam switch option;
6. 2-year warranty;
Transmission system: Professional small tube cutting system (Bochu/Weihong)
1. The control system developed for the small pipe industry is high-speed and stable:
2. The supporting control system manufacturer customizes the servo, with fast response and excellent performance:
3. The Y-axis adopts a high-precision and high-rigidity helical gear transmission structure:
4. The X/% axis adopts a precision screw transmission structure:
5. Each axis is equipped with a dust-proof sealing system and an automatic oil filling system:
Full stroke precision chuck:
1. Full-stroke chuck to improve production efficiency;
2. Fully sealed precision chuck, with higher precision, better sealing and longer life; 3. Double-layer jaw clamping, the maximum load-bearing capacity of the chuck is 100kg, and the clamping is more stable:
4. Repeatable positioning accuracy 0.05mm;
5. Maximum rotation speed ≤260r/min (related to the weight of the pipe);

Full-automatic Loading System
Automatically detects tubes and clamps the next tube to the standby place. After the processing for the previous tube finishes, the device loads the next tube in time and achieves constant processing in a real sense.
Semi-automatic loading system
Cutting Sample


Certifications
Company Profile

Founded in 2010, Guangdong Bote Laser Technology Co., Ltd. stands as a premier manufacturer of fiber laser machines in China.
With a solid 15 years of expertise, we deliver tailored solutions ranging from tube cutting machines to bending and welding machines. Our commitment lies in designing and manufacturing state-of-the-art machines for tube processing.
Bote Laser excels in targeting niche markets and industries, crafting solutions that bring significant value to our customers.
We continually integrate cutting-edge technologies to enhance convenience and to make life easier.

After Sales Service
*1 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
FAQ
1. About Price and Payment
How much does a fiber laser cutting machine for sale?
The cost and price of a fiber laser cuting machine depend on power, working area, model. and confouration, The thicker the material needs to be cut. the hiohepower is needed, and the higher the price.You can tel us the material vou need to process, vour budaet and other needs, we wil refer vou the best laser application solution that meet your budaet ancperformance expectations.
What are your payment options?
2. About After-sales Service
How about the installation for machine?
We can arange dor-to-door instaation senvices, or arange local service providers to install on-site, as well as experienced technicians for installation guidance.
3. About Product
What kind of fiber laser source you are using for your fiber laser cutting machine?
With more than 20 years of experience in R&D and manufacturing of laser cuting machines, we independently developed the Bote laser, which has the advantagesof optical conversion rate up to 30%, energy saving, good beam quality, long service life, maintenance-free, etc.
4. About Us
What are the benefits of Bote Laser that set them apart from competitors?
We never compromise on product qualty. To ensure this, we have created 339 unique qualty inspection proedures in the industry to strictly control the quaity of our machines.
