Hot Sale Heavy Duty Hydraulic Automatic Surface Grinding Machine M7140 Universal Tool Grinding Machine Price

Product Description

Hot Sale Heavy Duty Hydraulic Automatic Surface Grinding Machine M7140 Universal Tool Grinding Machine Price
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Description		Units	M7140x1000	M7140x1600	M7140x2000
Size of work table(L x W x H)		mm	1000x400	1600x400	2000x400
Max. Longitudinal movement of worktable		mm	1100	1700	2100
Max. Distance from the spindle centerline to the worktable surface		mm	570	570	570
Max. Cross movement of grinding herd		mm	450	450	450
Max. Vertical movement of grinding head		mm	400	400	400
Vertical movement of the grinding head by hand wheel	Every lattice	mm	0.01	0.01	0.01
	Each turn	mm	1.00	1.00	1.00
Rapid lifting motor	Power	KW	0.37	0.37	0.37
	Speed	R/min	1440	1440	1440
Abrasive wheel dim (L x D x W)		mm	350x127x40	350x127x40	350x127x40
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		KW	9	10	12
Power of spindle motor		KW	5.5	5.5	5.5
Power of oil pump motor		KW	3	4	5.5
Processing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
Package(L x W x H)		mm	2800x1750x2350	4500x2000x2350	5500x2000x2350
Net weight		Kg	4000	4100	4200

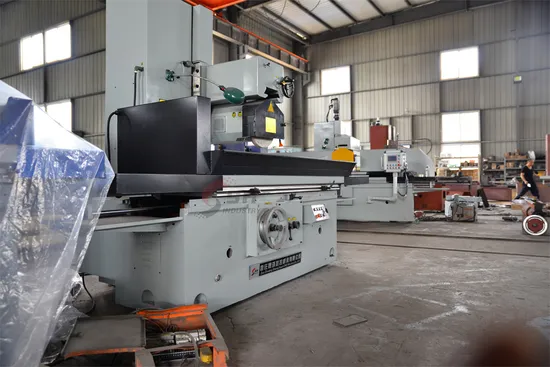

Detailed Photos

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
