Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor

Am6200 Mini Veterinary Monitor Vet Blood Pressure, Blood Oxygen, ECG, Temperature for Pet Monitor

US$160.00-285.00 1 Piece (MOQ)

Basic Info.

Model NO.
AM6200
Blood Sampling Needle
No
Breathing Pattern
ECG
Animal Anesthesia Machine Control Method
No
N.W
614G
Color
Blue
Display
TFT-LCD
Parameters
SpO2, Hr, ECG, Pr, NIBP, Temp
SpO2
35%-100%
Transport Package
Box
Specification
23*14*8
Trademark
BERRY
Origin
Shanghai, China

Packaging & Delivery

Package Size
14.00cm * 8.00cm * 23.00cm
Package Gross Weight
2.000kg

Product Description

Instructions
BERRY Multi-parameter veterinary monitor
AM6200 This monitor is capable of monitoring parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood pressure), SpO2, PR(pulse rate), TEMP(body temperature).
The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently. Besides, this monitor can be connected with the other smart terminals such as PC or Android phones.
This monitor integrates the functions of parameter measurement, waveform monitoring, etc. Its color TFT liquid crystal display is able to show animal parameters and waveform clearly.
Custom made
The minimum quantity for customization is 1000.
Application scenarios
AM6200 pet monitor is applicable to the daily and surgical monitoring of various pets, and widely used in pet hospitals, pet clinics, zoos, indoor and outdoor home care.
APP

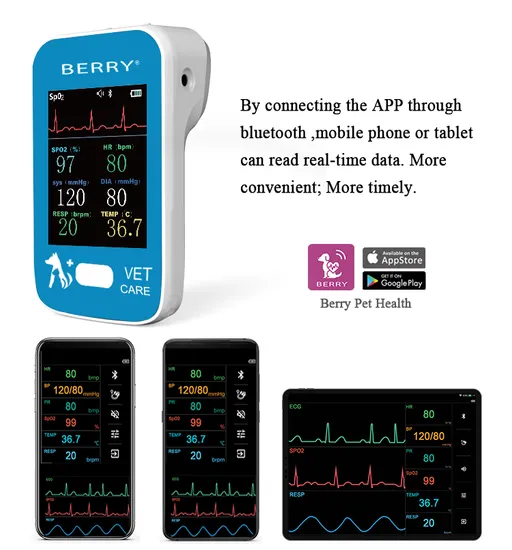

By connecting the APP through Bluetooth ,mobile phone or tablet can read real-time data. More convenient; More timely.
Download
"Berry Pet Health"app at APP Store and Google Play
Can be used while charging, charge supports Type-c interface
Wireless charging base Machine charging
Function buttons and sockets
Number Name Purpose
1. ECG & TEMP ECG & TEMP cable connector, Charging Connector.
2. SpO2 SpO2 sensor connector.
3. NIBP NIBP cuff hose connector.
4. Screen 2.8'TFT LCD.
5. Key Power and functions key.

SIZE:
Battery and Charging
Built-in Battery: 3.7V, 1800mAh lithium battery.
Wired Charging: 5V-1A Wireless Charging: 5W
Standard Configuration
1.Charging Base
2.SpO2 Sensor
3.ECG & Temp Cable
4.Disposable NIBP Cuff
5.Reusable NIBP Cuff
6.ECG Electrode Clip
7.Type-C Charging Cable
Function and Features
1. 6-Vital signs numerical results and waveform are shown on the TFT-LCD in real time.
2. Communication with other intelligent terminals via Bluetooth.
3. Automatically power off to save power.
4. Portable, palm size
5. Low power consumption.
6. One touch operation
7. APP for Android and iOS
8. Real time data transmission
9. Rechargeable battery and wireless charging
10. Can be used while charging
11. Lithium battery is builtin.
12. Multi-function for SpO2, HR, Temp, ECG, RR and NIBP
Technical Features
Display ECG, HR, NIBP, SpO2, PR, TEMP Screen: 2.8 inches colorized
TFT-LCD screen
ECG:
Waveform: Lead I
Band width 0.05Hz ~ 100Hz(3dB) diagnose mode
1 ~ 40Hz monitor mode
0.1 ~ 25Hz operation mode
Heart rate:
Scope: 15 bpm ~ 300 bpm
Accuracy:±2bpm or 2%, whichever is greater.
NIBP:
Scope:
Systolic blood pressure: 4kPa ~ 34kPa(30mmHg ~ 255mmHg)
Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg)
Mean pressure: 2.7kPa ~ 31.3kPa (20mmHg ~ 235mmHg)
Detection accuracy: Static pressure: ±3mmHg
Temp:
Type: Vascular/surface temperature
Scope: 25ºC ~ 45ºC
Accuracy: ±0.2ºC
RESP
Measurement range: 5~100brpm.
Accuracy:±2brpm
TEMP
Measurement range: 25~45ºC.
Measurement accuracy: ±0.2ºC.
SpO2
Measurement range:35~100%.
Accuracy: ±2% (80%~100%), ±3% (70%~79%),
±3% (35%~69%)
PR
Measurement range: 25~250bpm.
Accuracy: ±2bpm or 2%,
whichever is greater.
NIBP:
Scope:
Systolic blood pressure: 4kPa ~ 34kPa(30mmHg ~ 255mmHg)
Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg)
Mean pressure: 2.7kPa ~ 31.3kPa (20mmHg ~ 235mmHg)
Detection accuracy: Static pressure: ±3mmHg

Weight: 256±10g
(not including accessories).

Our Certificates
Company Information
Shanghai Berry Electronic Tech Co., Ltd. is located in Shanghai Caohejing High-tech Park, a beautiful low-carbon and environmentally friendly city. We have been devoted to the R&D, manufacturing and sales of medical electronic instruments in the field of monitoring since 2003.
Our Factory
Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.
