Japan Sokia Im52 Total Station Geographic Surveying Instrument Total Station

Product Description

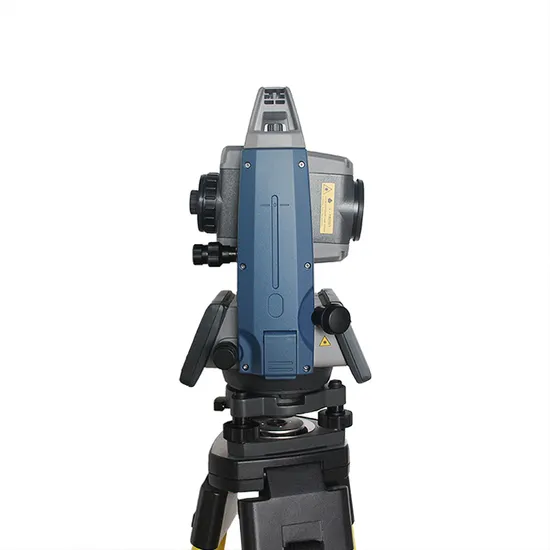

Sokia IM-52 Reflector-less 2 second Accuracy Total Station
Key featrues
* Reflectorless Upto 500 meter
* Optional Bluetooth connectivity
* 50,000-point internal memory
* Magnification: 30x
* Dual-axis compensation
* IP66 dustproof and water resistant
* Battery life up to 14 hours
Sokia IM52 Perfect for entry-level site layout and surveying, the Sokia iM-50 Series Reflector-less Total Station is a smart
measuring device that offers reliable and accurate results with a friendly price. The Sokia iM-50 features a reflector less range up to 1,640 feet and up to 13,123 feet with a single prism. Featuring an advanced angle accuracy, it also comes with an integrated Bluetooth connectivity option and an internal antenna for a cable-free operation.
This Sokia total station features a coaxial red laser with EDM beam technology and comes with a 30x magnification with 2.5-inch resolving power. It is provided with a ±6-degree range dual-axis compensation that allows reliable measurements on any terrain. Also, it includes an SDRbasic on-board software and a 50,000-point internal memory for a smooth surveying operation.
With an IP66 rating, the Sokia iM-50 is total dust proof and water resistant. It features a graphic LCD display that has a 28-key alphanumeric keyboard with back-light. In addition, it uses a rechargeable Li-ion battery that operates up to 14 hours which is the best companion for a long work day.
Sokia IM52 is upgraded version of Sokia CX52 Total Station
Technical Spesification

MODEL		Sokia iM-series
Telescope
Magnification /Resolving power		30x/2.5
Length		171mm(6.7in.)
Objective aperture		45 mm(1.8 in. )(48 mm(1.9 in. )for EDM)
Field of view		1.30 (26m/1,000m)
Minimum focus		1.3m(4.3ft.)
Reticle illumination		5 brightness levels
Angle Measurement
Display Resolution		0.5"/1	1"/5
Accuracy(IS0 17123-3: 2001)		1"	2"	3"	5"
LACS(Independent Angle Calibration System)		Provided
Dual-axis compensator		Dual-axis liquid tilt sensor, working range: +6
Collimation compensation		(111 mgon)/Collimation compensation available
Distance Measurement
Laser output		Reflectorless mode: Class 3R/Prism/sheet mode: Class 1
Measuring range	Reflectorless	0.3 to 800m (1.0to2, 624ft.)
		RS90N-K :1.3 to 500m (4.3to1,640ft)
		RS50N-K: 1.3 to 300 m (4.3to980ft.
(under average conditions)		RS10N-K: 1.3 to 100 m (4.3to320ft.)
		CP1:1.3 to 2,500 m (8,200ft) OR1PA: 13 to 500m(1640ft)
	One AP prism	1.3 to 5,000 m(4.3 to 16, 400 ft)/Under good
		conditions":6,000 m(19,685 ft.)
Display Resolution		Fine/Rapid: 0.001 m/ 0.01 ft /1/8 in.
		Tracking: 0.01 m/0.1 ft /1/2 in
Accuracy2(1SO17123-4:2001)	Reflectorless	(2+2 ppm D) mm
	AP/CP prism	(1.5+2 ppm x D)1.5 mm
Measuring time		Fine: 0.9 s(Initial 1.5 s), Rapid: 0.6 s(Initial 1. 3 s)
		Tracking: 0.4 s(Initial 1. 3 s)
Interface and Data management
Display/ Keyboard		Graphic LCD, 192 x 80 dots, backlight
		contrast adjustment/ Alphanumeric keyboard
		28 keys with backlight
Control panel location		On both faces (second display is optional)
Trigger key		On right instrument support
Data storage	Internal memory	Approx. 50,000 points
	Plug-in memory device	USB flash memory(max 32GB)
Interface		Serial RS-232C, USB2.0(Type A, for USB flash memory)
Bluetooth"modem(optional)		Bluetooth"Class 1.5, Ver. 2.1+BR. EDR. LE BT 4. 1
		Operating range: up to 10 m (33 ft)
General
Laser-pointer		Coaxial red laser using EDM beam
Guide light
		Green LED (524 nm)and Red LED (626 nm)
		1.3to150m(4.3to490ft.)
Levels	Grap	6 Inner Circle
	Circular level (on tribrach)	10'/2mm
Plate Level		Regional Dependent
Optical plummet(optional for NA, LA and EU		Magnification: 3x,Minimum focus: 0.3 m(11.8 in. ) from tribrach bottom
Laser plummet(optional for Oceana and Russia		Red laser diode(635 nm+ 10 nm)Beam accuracy: s1.0 mm at 1.3 m, Class 2 laser product
Dust/water Rating		IP66 (IEC60529: 2001)
Operating Temperature		-20°C to 60°C
Size with handle		Control panel on both faces: 183 x 181 x348 mm
		Control panel single face: 183x 174 x348 mm
Weight with battery and tribrach		Approx 5.3 kg
