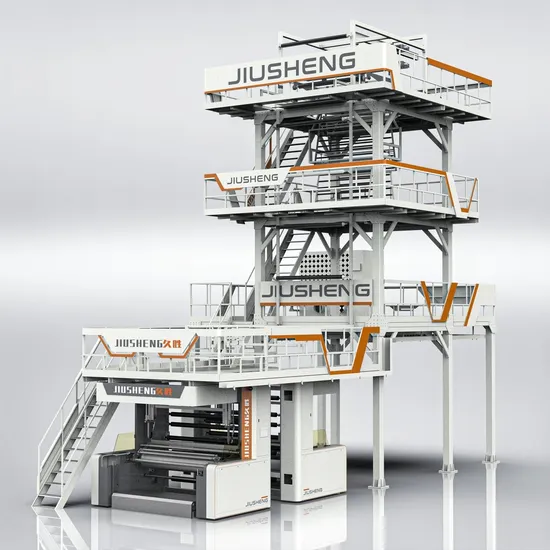

High Output Wuhan Jiusheng Three Layer Polyethylene Plastic Film Blowing Machine

Product Description

Product Description
Wuhan Jiusheng China Factory Price 3 Layer hdpe-ldpe plastic roll film blowing machine with IBC system
Detailed Photos
Product Parameters

Model	SJ-7-2400	SJ-7-2600
Suitable material	LDPE/LLDPE/mLLDPE/PA/EVA and Mixing
Film layer	7 layers
Film thickness	0.02- 0.15mm
Max film width	2400mm	2600mm
Max output	500-700kg/h	500-700kg/h
Screw diameter	φ65/φ65/φ65/φ75/φ65/φ65/φ65	φ75/φ75/φ75/φ85/φ75/φ75/φ75
Screw L/D ratio	33:1	33:1
Die head diameter	550mm	650mm
Air ring Diameter	550mm	650mm
Main motor power	37/37/37/55/37/37/37kw	55/55/55/75/55/55/55kw
IBC system	P+F probe and IBC system
EPC system	EPC auto edge position control system
Screen changer	Non-disassemble manual screen changer
Winding method	Automatic back to back surface friction winder
Tension control system	Automatic Tension control system
Overall Dimension (L*W*H)	15500*7000*16000mm	15500*7000*16000mm

Certifications
Packaging & Shipping


Company Profile
Wuhan Jiusheng Plastic Machinery Co.,Ltd is a top manufacturer in China engaged in the development, production and sale of plastic blow film machine equipment. Our main products are 7 layer co-extruded blown film machine(lamination and barrier film),5 layer co-extruded blown film machine(lamination substrate film), 5 layer co-extrusion blown film machine (barrier film), 3 layer co-extrusion blown film machine(lamination substrate film),
3 layer co-extrusion blown film machine (protective substrate film),
and Self-adhesive film blown film machine. We have a R&D team with more than 15 members and obtained 27 patent certificates. Our Extrusion Lines For Blown Flim are exported to more than 20 countries and obtain good reputation from customers.
Our Advantages
At Wuhan Jiusheng factory, we are committed to providing cutting-edge solutions that enhance productivity and reduce costs for our clients in the plastic industry.
Below is an overview of the key features and benefits of our PE PA Blowing Film Machine:
1.High-Quality Output
2.Energy Efficiency
3.User-Friendly Operation: inteligent PLC
4.Wide Range of Film Widths and Diameters: 800-3600mm
5.Rapid Production Speed:300-700kg/h
6.Durable Construction

Here are some additional highlights of our machine:
Advanced screw design for better plasticizing and mixing Precision temperature control for optimal film quality Automatic roll changing and rewinding system Easy-to-clean design for maintenance purposes Comprehensive after-sales service and technical support
FAQ
Q1: How about after-sales service? How long is the machine warranty?A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time?A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds?A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.
