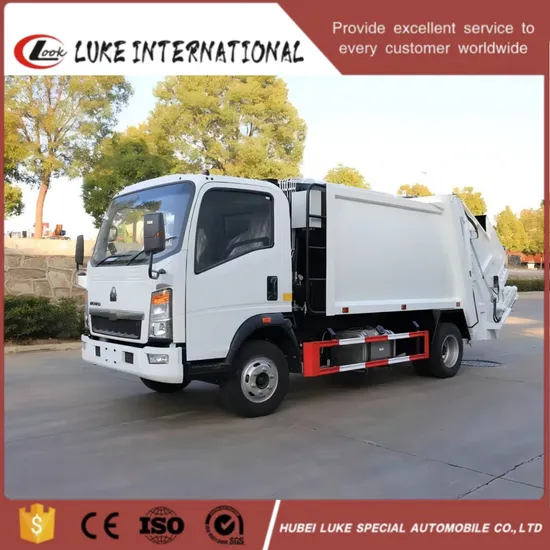

High Quality 4*2 HOWO Brand 5 Cbm 5 Cubic Meter Garbage Compactor Truck

Product Description

Product Description
High Quality 4*2 Howo Brand 5 CBM 5 Cubic Meter
Garbage Compactor Truck
A garbage compactor truck is a specialized vehicle used for efficient garbage collection and transportation. It mainly consists of a sealed garbage compartment, a hydraulic system and an operating system. The sealed garbage compartment is used to store garbage, preventing leakage and spillage during transportation. The hydraulic system, composed of components like an oil pump, oil cylinders, a multi-way reversing valve and a relief valve, is responsible for driving the operations of garbage loading, compression and unloading. The operating system usually has remote control and manual operation modes, enabling a single driver to complete all filling and unloading tasks. It can compress garbage to a high density with a large loading capacity, reducing the number of transports. The whole vehicle is fully sealed, and the sewage produced during compression enters the sewage tank, thus effectively solving the problem of secondary pollution. It is widely used in urban sanitation work and plays an important role in keeping the city clean.
More choice:
Compactor capacity:3-25m³
Engine power:max 430Hp
Driving steering:LHD or RHD
Driving type:4x2, 6x2, 6x4, 8x4, 4x4, 6x6, 8x8
Emission standard:Euro 2, Euro 3, Euro 4, Euro 5, Euro 6
Brand optional:Howo,FAW,SHACMAN,JAC,JMC,FOTON,1suzu,Hongyan,Beiben,all China brand,some German brand,Japan brand

GVW Driving Type 4x2
Model		Howo garbage compactor truck
Cab		Howo light duty cab ,one row cab, tilted
Engine(Hp)		110
Power(Kw)		81
Wheelbase		3360
Front/Rear Suspension		1160/2070
Steering		Power steering
Approach/departure angle		24/23
Wheels & tire		7.0R16
Tire number		6+1
Compactor capacity(m3)		5
RHD or LHD		optional
Overall Dimensions(mm)		6615×2100×2550
Curb weight (Kg)		5165
Engine	Model	YN4100QBZL
	Horsepower	110
	Maximum output Kw	81
	Maximum torque N.m	285
	Type	4cylinders, in-line,4-stroke, diesel engine
	Displacement	3.298L
	Yunnei brand, Euro 2
Driving passenger	2,3
Transmission	WLY 5 speed forward and one reverse, manual
Front Axle	2T
Rear Axle	3.5T
Brake System	air brake
Color and LOGO	customized
Electric system	24V
Standard configuration	Compactor body, sub frame, rear lifting part, loading bunker, pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control ,PLC control.
Selective equipment	Rear side arm swing type turning over instrument
compactor	capacity		5m3
	Loading cycle		15-30s
	Unloading cycle		20-30s
	Compressed proportion		1:3/1:2
	Garbage bin turning over instrument		available
			Different instrument selective
Delivery date	Within 40 days after receipt advance
Packing	Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

Product features
1.Ergonomic Design and Exceptional Comfort
The truck adopts a two - way compression technology with a high compression ratio. The push plate is designed in a curved surface that mimics the direction of garbage stuffing. This ensures that garbage of different compositions is evenly compressed by the pressure and fills the entire vehicle compartment without dead corners, voids, or blockages, thus increasing the net garbage loading capacity.
It uses dynamic control of the oil pump rotation speed and is equipped with a device to prevent garbage backflow. It features fast dynamic response, low internal system losses, high work efficiency, and a short operation cycle time.
2.Stable performance and excellent quality
The vehicle is equipped with multiple safety protection devices, including an emergency stop device, an overload secondary relief valve, explosion - proof protection for the filling device lifting cylinder, interlock switches, safety struts, and a filling device lifting alarm device, etc., to ensure the safety of operators.
The control system adopts the "CAN bus + dedicated controller" mode. The engine power output and operating state are automatically adjusted, which avoids power loss and system overheating. It has low fuel consumption, good economic performance, a high degree of automation, a low failure rate, and good reliability.
3.High degree of integration and convenient operation
It uses a silicone panel control box, which is installed in the cab and at the rear of the vehicle respectively. The operation panel in the cab can achieve functions such as unloading, indication of operation status, display of fault information, and selection of operation modes. The entire control system features intuitive indication, fast response speed, good stability, and excellent waterproof performance.
The upper - loading device assembly adopts a fully - sealed structure, with designs for anti - splashing and centralized sewage drainage control.
A locking hook mechanism is used to lock the filling device, ensuring a good sealing performance at the joint surface between the filling device and the garbage bin.
The rear cover of the filling device completely covers the feeding port of the filling device, eliminating the flying of garbage dust caused by the air flow disturbance at the rear of the vehicle during transportation. At the same time, it reduces odor pollution.
4.Centralized transfer for highly efficient operation
The steel plates of the product that come into direct contact with the garbage are all made of high - strength weather - resistant steel, which has strong corrosion and wear resistance, a long service life, and is especially suitable for corrosive working environments, thus improving the product's durability.
The movement of the slide plate within the slideway is achieved by eight sets of high - density polyethylene guide support sliders. Compared with the common sliders used by peers, these sliders are durable and wear - resistant, and basically do not need to be replaced under normal maintenance.
The push plate is designed with reinforcement. The slide rail structure consists of two - side channel - shaped tracks, which has high rigidity, good stability, no deformation of the bottom plate, clean garbage unloading, and reliable operation. Detailed Photos
Accessories and equipment
Company Profile
Main products
Packaging & Shipping
FAQ
1.Q:Are you a factory or a trade company?
A: Hubei Luke Special Automobile Co., Ltd., is a Fatory and trade combination for special purpose vehciles in China.
2. Q: Where is your factory located?
A: We are located in Suizhou City, Hubei Province, China.
3.Q:How can I visit there?
A:You will be welcomed for factory inspection, you could take plane to Tianhe airport, or take high speed train to Suizhou Station directly, we will pick you up there.
4. Q: what's your payment terms?
A:T/T & L/C are preferred.
5.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
6.Q: Warranty?
A:12 months(except for artificial damage).
7.Q:How is the packing?
A:AII the packing comply with exporting standard.
8.Q:How long is the lead time?
A:20-25 working days.
For other questiones, we will reply you ASAP after receiving your consult.
We still have more different brand model for your reference, such as: Hongyan garbage compactor truck, HOWO garbage compactor truck, 1SUZU garbage compactor truck, Foton garbage compactor truck, Beiben garbage compactor truck, SHACMAN garbage compactor truck, Dongfeng garbage compactor truck, JAC garbage compactor truck, JMC garbage compactor truck,FORLAND garbage compactor truck, FAW garbage compactor truck, etc.
