Advanced UV and Infrared Multi-Band Flame Detector for Oil Industry

Product Description

Product DescriptionThe Furnace Safety Monitoring System (FSSS) is an important measure to prevent accidents in heating furnaces or boilers caused by the accumulation of flammable materials and misoperation and to ensure the safe operation of heating furnaces and boilers. The flame detection device is a key piece of FSSS equipment, and the successful operation of the FSSS largely depends on the correct and reliable operation of the flame detection device.
One infrared/single ultraviolet, dual detector multi-band flame detector, effectively detects hydrocarbon (commonly known as red light) and nonhydrocarbon (commonly known as white light) flames and alarms.They are widely applicable to special environments such as highway tunnels and pipe galleries, as well as places with potential explosion hazards such as petroleum, chemical, power, pyrotechnic, special chemical, and storage areas. The detector can detect fire flames and provide rapid alarms for fires.

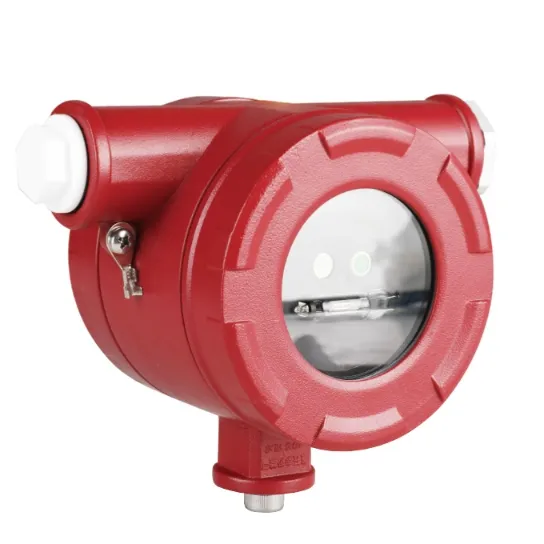

Detailed Photos
Product ParametersSpectral Range(IR): 4.4um, 5.0-11.0um/180-290um Workingvoltage: DC24V (16-32VDC)
Output: Standard relay output, optional output: 4~20mA, RS485, bus circuitRated current: static≤60mA,alams≤70mA
Electrical interface: G3/4 (6 ") (internal thread)Enviromnental temperature: -20ºC~55ºCEnvironmental humidity: ≤95RH no dewFire Sensitivity: Level 1 (factory setting)Rotation angle: up, down: 180°, left, right: 180°
Detection angle: ≤ 90 ° (maximum sensor angle ≤ 110 °)output: Standard relay output, Optional output:4~20mA RS485, Bus circuitExplosion proofmark: Exd llC T6 Gb/IP67
Shell material weight: die-cast aluminum 6kg, customized: stainless steel/6KgDimension:162x161x152(mm)
