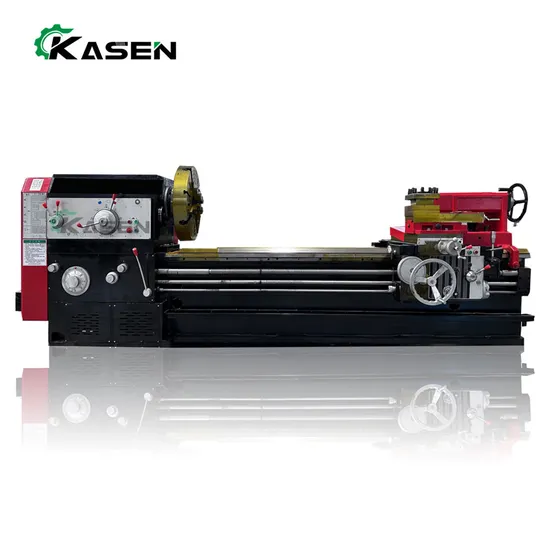

Cw61100 Large Heavy Horizontal Manual Lathe

Product Description

superior quality horizontal manual lathe CW61100 lathe machine
Product Description
Product Name :CW6110LX7000MM
Main specifications and parameters

Models of lathe	CW61100L
Maximum workpiece rotation diameter on the bed body	ф1000mm
Maximum workpiece rotation diameter on the knife holder	ф650mm
Two top maximum processing workpiece length	7000mm
Bed body guide rail width	755mm
Two tips allow to support the maximum workpiece weight	6000kg

machine head:

The spindle center is from the bed height	500mm
Spindle hole diameter	ф130mm
Main shaft end code	A2-15
Main shaft hole front end taper and top taper	the metric system 140mm 1:20
number of spindle speeds	Mechanical third gear (variable frequency stepless speed regulation)
range of spindle speeds	5-400r/min
Cuck (manual) (standard configuration)	Four claws single moveф1000mm
Main motor model and power	22Kw

feed system:

Number of feed (longitudinal, transverse, upper holder)	56 Species
Range of the longitudinal feed volume	0.1~12mm/r
Transverse feed quantity range	0.05~6mm/r
Upper blade frame feed range	0.025~3mm/r
Effective number and range of metric thread	23 1~15
Effective number and range of English thread	22 28~2Tooth / inch

TOOL:

Vertical distance from the spindle centerline to the tool support surface	48
Knife section size	45×45
The wing angle of the holder	±90°
Maximum transverse stroke of the lower knife holder	720
Maximum travel distance on the knife holder	300
Bed saddle with fast moving speed	3740mm/min
Lower the knife holder with a rapid movement speed	1870mm/min
Upper knife holder with rapid movement speed	935mm/min

tailstock:

Diameter and travel of the top sleeve	φ140 300
Taper of the tailseat sleeve	1:20 80

dynamical system:

Main motor model and power	SEW 22Kw
Cooling pump model and power	JCD-24 0.15Kw

Outline weight:

Machine tool profile (length X, width X, height)	10600X2100X2150
Machine tool weight (CW61100L * 10,000 mm)	18T
