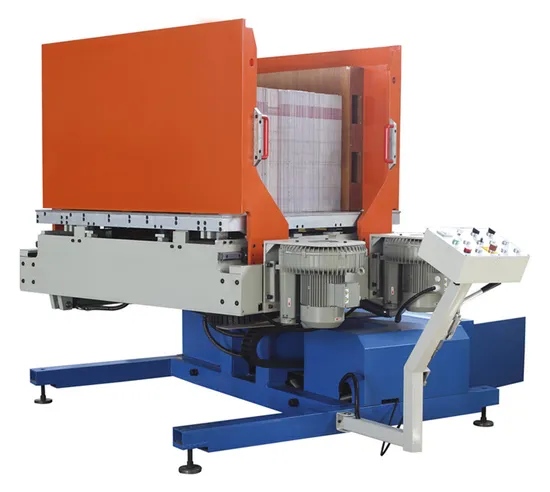

High Speed Vibrating and Blowing Pile Turner Machine

Product Description

Quotation Catalogue
Specifications

Model FZ1200 FZ1700

Weight of pile(including pallets) 1000KG 2000KG

Max. size of paper 800×1200mm 1350×1700mm

Opening width Min. 680mm 780mm

Max. 1440mm 1840mm

Electrical Data

Total Power 10KW 14KW

Hydraulic

Pressure Max. 16MPA

Hydraulic oil Summer46 Winter32

Volume of oil tank12L

General Parameter

Net weight 2800KG 3500KG

Dimension 2370X2090X1890 mm 2550×2590×2590mm

Noise <70BD

Working environment

Temperature -15ºC~+50ºC

Humidity ventilation and dry relative humidity less than 80%

Notice:paper low 200gsm only could do turning
Key point
1.This machine contains three functions: turning, jogging and ventilation.
2.The machine is necessary auxiliary equipment in the printing process, it not only make the paper stack turned over automatically, but also make the stack tidy.
3.The machine can save in labors and avoid impact on the printed surface.
Structure

1.1 Base frame 1.2 Fork housing 1.3 Platforms 1.4 Clamping Cylinder for the Driver for the Platforms 1.5 Chain wheels 1.6 Pivot bearing 1.7 Tilting cylinder
1.8 Control cabinet 1.9 Hydraulics 1.10 Control panel 1.11 Ventilation plate 1.12 Aerating device 1.13 Blower motor 1.14 Ventilation system 1.15 Locking mechanism 1.16 Leveling feet 1.17 Jogging ruler 1.18 Main Switch
Function Feature Dusting removing •Before printing ,the paper fibers, paper scraps and dusts will be removed to improve the printing quality and lower the rejection rate. By the way it can stop the dusts into the printing machine to increase the service life of printing machine
2. Separation of paper
•After the vibration and air jetting, the pile is filled with air cushion between of the sheets, in this way ,mis-feeding can be avoided
3. Aligning
•With the vibration platform and high pressure blower ,the whole pile paper can be aligned at one time
4. Static remove
•Air with ionized air reduces the electrostatic charge which may affect the finishing process of coated and printed paper or plastic foil
5. Turning
•For the piles of double-sided printing paper ,the pile turning will improve the work efficiency and lower the intensity of work .The working environment will be much better for workers
6. High efficiency easy operation
•For average ,the turning ,powder removing ,separation of paper and aligning, the processes takes about 3 minutes
•Easy operation without professional person
Working Processes
Configuration

Name	Brand	Name	Brand
Pump order	WEG	Reducer	Japan Kobe
High pressure air	Taiwan shenghong	Valve	Howard hydraulic
Linear Guides	ABBA	Bearing	C&U

Installation Requirement
Installation areas: Length*Width
