Good Price High Speed Coil Slitting Slitter Line Slitting Machine

Product Description

Welcome to Taicang Global Machinery Co., Ltd
https://global-machinery1.en.made-in-china.com/
At Global Machinery, we provide Tube Mill, Roll Forming Machine, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!
Summary
A Slitting Line is used to break mother coils down into baby coils of a specific width and or weight. A Slitting Line will uncoil a mother coil and slit it to a specified width(s). The slit coils sometimes referred to as strips are then recoiled. The finished slit coils produced by Slitting Line are used in a wide variety of applications such as roll forming, stamping operations, and pipe making. When considering a Slitting Line and the proper line configuration for your application, there are several variables you should consider: the thickness of material, the type of material, the weight of the coils to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.
Technical process
1: Coil saddle
2: Hydraulic coil car: loading capacity 20 tons
3: Hydraulic cantilever uncoiler
4: Guiding plate for feeding device
5: Pinch and pre-leveler
6: Hydraulic loop bridge
7: Guiding device
8: Slitter
9: Scrap winder and tail pressing device
10: Loop bridge
11: Hydraulic pre-separator
12: Hydraulic recoiling machine
13: Hydraulic coil car
14: Electric Control System
15: Hydraulic system
High Speed Slitting Line

Model	0.2-1.8×500	0.3-2.0×1250(1600)	1.0-6.0×1600	3.0-12.0×2000
Material	δs≤230N/mm2, Cold-rolled Coil, Hot-rolled Coil, Galvanized Coil, Stainless Coil
Coil Thickness	0.2~1.8mm	0.3~2.0mm	1.0~6.0mm	3.0~12.0mm
Coil Width	100~500mm	800~1250 (1600)mm	800~1600mm	1000~2000mm
Coil Weight	≤5 tons	≤20 or 25 tons	≤25 tons	≤30 tons
Coil ID	φ508m`m	φ508mm	φ508 & 610 & 760mm	φ610 & 760 & 820mm
Coil OD	≤φ1600mm	≤φ2000mm	≤φ2000mm	≤φ2000mm
Strip Width	≥25mm	≥30mm	≥50mm	≥80mm
No. of Strip	5~15	8~20	5~15	4~15
Slitting Accuracy	±0.1mm	±0.15mm	±0.25mm	±0.3mm
Line Speed	0~150m/min	0~150m/min	0~150m/min	0~30m/min
Electrical Control	PLC	PLC	PLC	PLC

Nonferrous metal high speed Slitting line

Model	0.2-1.5×600		0.3-3.0×1250(1600)
Coil material	Aluminum coil, Copper coil
Coil thickness	0.2~1.5mm	0.3~3.0mm
Coil width	100~600mm	300~1250(1600)mm
Coil weight	≤5T	≤20T
Coil ID	φ508mm	φ508mm
Coil OD	≤φ1500mm	≤φ1800mm
Strip width	≥25mm	≥25mm
Number of strip	5~15	8~20
Slitting accuracy	≤±0.05mm	≤±0.05mm
Line speed	0~150m/min	0~150m/min
Electrical Control System	PLC	PLC

Certificate
Main Customers

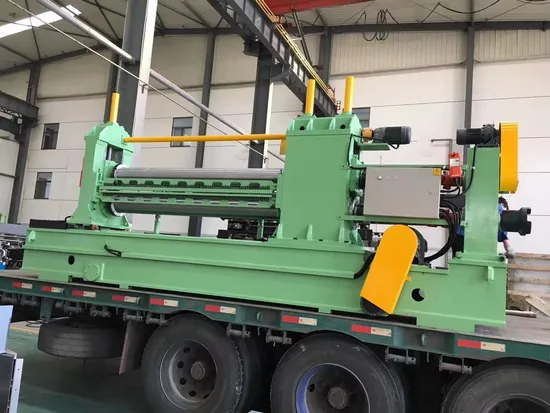

Packing & Delivery
