Yc-5L-1 Semi Auto New Injection Molding Machine for Production Small-Volume Conventional Bottles

Product Description

Product Description

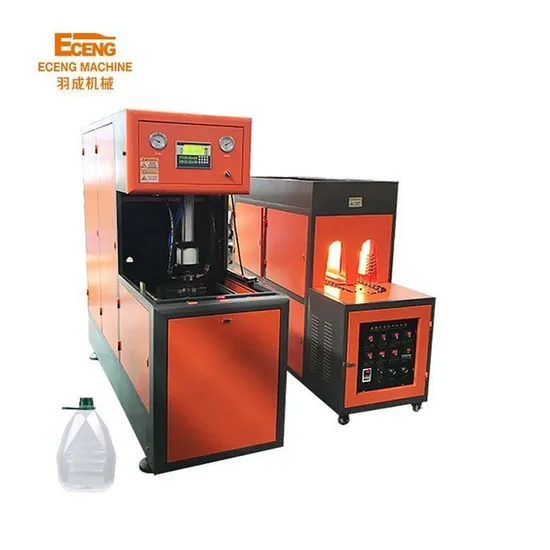

Economical Semi-Automatic Bottle Blowing Machine
The YC series semi-automatic bottle-blowing machine is controlled by a microcomputer, which can accurately control the technical parameters. It is equipped with an upper and lower system, an emergency stop system, and an independent counting device, and the counting is accurate. The infrared lamp heating device has strong penetration, and the preform is heated by rotation, and the heating is uniform and fast. The YC series semi-automatic bottle blowing machine has low energy consumption, moderate output, and relatively low price, which is very suitable for the production of small beverage companies and daily chemical product companies.
Product Parameters

Main machine	Model Type	Parameter
Product Spec	Max. product volume(L/cav)	5L
	Output (pcs/h)	350
	Max. preform neck size(mm)	150
	Max. product diameter(mm)	200
	Max. product height(mm)	400
	Cavities	1
Blow machine	Die force (KN)	120
	Die stroke (mm)	320
	Max. mould size(mm)	390×350
	Mould thickness	Adjustable
	Mould spacing(mm)	Adjustable
	Max. pulling stroke(mm)	500
	Operation pressure(Mpa)	0.8-1.0
	Operation air consumption (1tr/min)	350
	Blow pressure(Mpa)	1.2-2.8
	Blow air consumption (1tr/min)	300
	Output(pcs/h)	350
	Machine size(L×W×H)(m)	1.56×0.7×1.9
	Machine weight(KG)	700
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (L×W×H)	1.45×0.65×1.15
	Oven weight (KG)	330

Detailed Photos
ADVANTAGE 1
Improved design, all meet the IS9001 quality system and CE standards.
ADVANTAGE 2
Controlled by a microcomputer, the technical parameters involved can be controlled more accurately.
ADVANTAGE 3
Simple and safe operation, Xiaobai can start operation after short-term training.
ADVANTAGE 4
The blown series of products have high transparency, a high temperature of up to about 120 degrees, and can withstand secondary high-temperature disinfection.
ADVANTAGE 5
Low power consumption, high production capacity, relatively low price, effectively reducing operating costs.

FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory, near Shanghai & Ningbo port, is located in Zhangjiagang, Jiangsu.

Q3: How about quality control in your factory?
A3: " Quality is the key point, do what customers need"
Eceng Machinery Factory focuses on quality, and quality control from beginning to end. Every piece of goods is tested strictly before packing and delivery.

Q4: How about guarantee?
A4: One-year guarantee.

Q5: Do you provide bottle blow mold and air compressor?
A5: Yes, we provide a complete system and you will not need to find a suitable air compressor chiller...etc.

Q6: What is the language of the PLC and touch panel?
A6: Don't worry, we will translate the language into English, Spanish, or any other language, to make sure you will have an easy operation.
