High Precision Carbide Stainless Steel Ceramic Flat Surface Grinding Lapping and Polishing Machine

Product Description

KIZI provides the most efficient and reliable solutions for flat lapping and polishing of components utilized in medical, mechanical seals, ceramic,automotive optical, photonic, MEMS, wafer and compound semi-conductor applications and other industrial markets.

Model No.		KS700Y
Diameter of plate (mm)	upper plate	700*300*56
	lower plate	700*300*56
Parameters of Star wheel	Z=47 D=Φ238	Fixture (star wheel) Quantity	6
Maximun workpiece diameter(mm)	200	Lapping plate speed (r.p.m)	0-106
Air pressure(MPA)	0.6	Main drive motor(kw/380v)	13.6
Machine weight(kg)	2500	Machine size (w*d*h)mm	1450*1750*2350

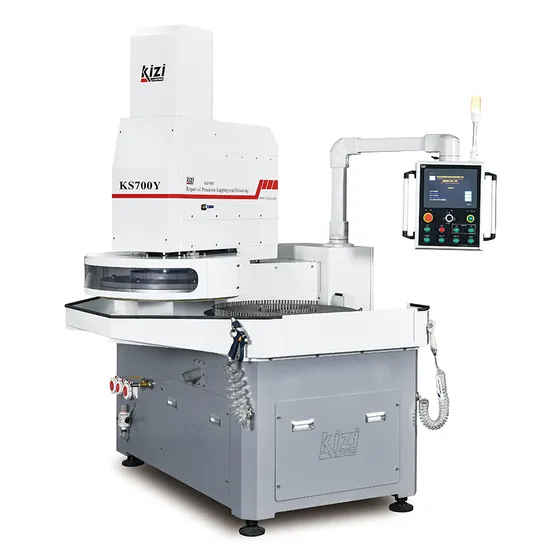

KS700Y Precise Lapping Machine
Usage: Major in precise lapping valve plate, valve piece, friction plate, rigidity seal ring, qir cylinder piston ring, oil pump vane etc precision hardware or metal and non-metal hard material's dual-plane lapping .
Products Show
Product Details :
Semi automatic feeding table
Upper plate rocker arm device with matching feeding working table improved the Pick & Place convenience

Applications:

Features:
1. Use Swedish "ABB",PLC program control system, to make sure the stability and safety of machine;
2. Use Japanese "NSK"/ German "FAG" high precise high speed shaft system; Effectively ensure the working accuracy when high speed, high strength lapping;
3. Intelligentialized automatic thickness detection system, the best accuracy of resolution is up to 0.001um. Make sure mass production item thickness size tolerance have stable TTV;
4. Upper plate rocker arm device with matching feeding working table improved the Pick & Place convenience;
5. Upper plate automatic protection device, prevent accident like fall plate caused by unexpected expired and power failure;
6. Use independent inverter motor drive, make the upper plate, lower plate, center wheel and the speed reach the best ratio, and make the loose pully realize clockwise rotation and iversion, and satisfy each machining and fixplate artwork requirement;
7. Use Japanese "SMC" pneumatic element matching stepless mutistage precise pressing control system, suitable for coarse lapping, middle lapping, precise lapping, polish ect artwork requirement;
8. To meet different material machining requirement, develop customize diamond lapping plate with different formula;
9. Precise magnetism and paper tape filtration system.
Our Service
1. Factory with competative price,high quality and stability
2. R&D Dep. with 20 technicians, 5 of them in decades experience
3. Free charge of customer sample making
4. Completed After sales service and expertise support from Taiwan
Our Company
Workshop & Lab
Company Activity
Patent
Packing & Delivery
Packing Details : Packing, 1 pcs/carton
Delivery Details : Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity
FAQ Q1. Are you the manufacturer ? Yes, we are the manufacturer with more than 10 years' experiences in the valve grinding machine & Testing equipments design & development and manufacture. Q2: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity. Our delivery time depends on the machine model, please contact us when inquiry for detailed information.
Q3. What is your mininal order qty? We are manufacture the machines for the industry, the mininal order is one.Q4. Do you provide samples ? is it free or extra ?
A:No, we could not offer the machine sample for free charge but can provide free proofing for the customer.
