Yt Series Pneumatic Hand Rock Drill

Product Description

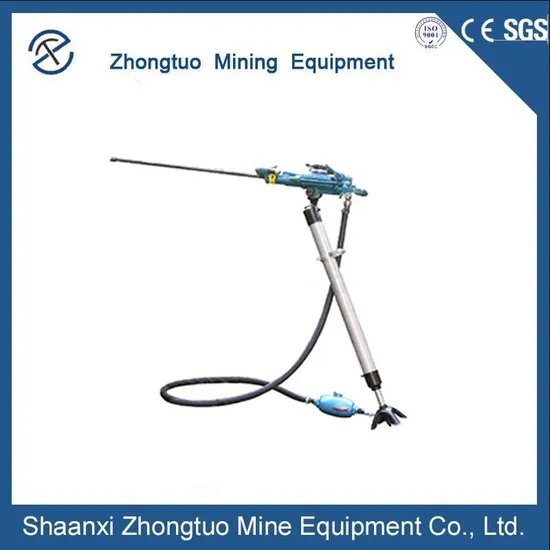

Yt28 Pneumatic Rock Drill Jack Hammer

Product Description
1. Control handle centering and handle body, new structure, easy to operate
2. Compared with the same type of rock drill: lightweight, low noise, high efficiency, and good economic efficiency.
Description:
The YT rock drill is suitable for rock hardening and hardening (f = 8-18) rock drilling and inclined holes, or it can be vertically upward to cut the anchor hole on the roof. It is best suited for large mines, medium mines, and tunnel operations.
Application
The YT28 rock drill is a new type of efficient drilling machine. It is widely used in mine roadway excavation and various drilling operations. It is indispensable equipment for blasting, metallurgy, coal, railway, transportation, water conservancy construction, and national defense stone engineering.
Technical Parameters

Model	Y28	YT28	YT27	YT29A
Drilling volume l/s	<=55<=81	<=55<=81	<=83	<=88
Tracheal Inner diameter mm	25	25	25	25
Water pipe Inner diameter mm	23	13	13	13
Rig diameter mm	34-42	34-42	34-42	34-42
Rig depth m	5	5	5	5
Drilling frequency Hz	>=37	>=34>=37	>=37	>=39
Machine Weight kg	26	26	27	27

Our Advantages
1. Save energy and high efficiency2. Strong impact energy3. Low vibration4. Easy handling5. Low noise6. Wet drilling7. Easy cleaning air /water holes8. Spare parts easily purchasing
