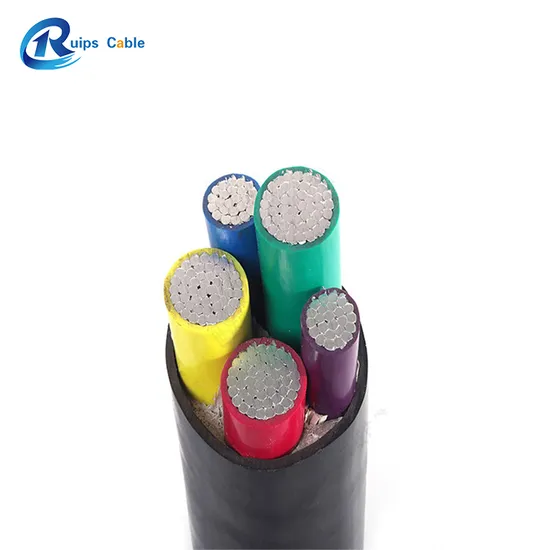

C2xy, Ca2xy Power Cables with XLPE Insulation and PVC Sheathiec 60 502-1 (Cu/XLPE/PVC, Al/XLPE/PVC, C2XY, CA2XY)

Product Description

Nyy/Nayy/Na2xy/N2xy/N2xry/NAYCY NYCWY/NYCY High Flexible Direct Burial PVC Insulated and Sheathed Power Cable
EHNIČKI PODACI STRUKTURA KABELA1 - Vodič: bakreno uže (p C2XY)aluminijsko uže (p CA2XY)2 - Izolacija: XLPE masa3 - Ispuna: brizgana elastomerna iliplastomerna mješavina ili omotanetermoplasčne vrpce4 - Plašt: PVC masaNorme i standardi: IEC 60 502-1(Cu/XLPE/PVC, Al/XLPE/PVC)(C2XY, CA2XY)Nominalni napon: 0.6/1 kVIspitni napon: 4 kVTrajna radna temp. vodiča:Temperatura kratkog spoja:+ 90 ° C+ 240 ° CUPORABAU zemlju, kanale, na konzole, u suhim i vlažnim prostorijama i sl. gdje se ne očekuju mehanička oštećenja, a kabeli nisu izloženimehaničkom vlačnom istezanju.U gradskim mrežama, industrijskim pogonima, elektranama i drugim električnim postrojenjima te za povezivanje signalnih uređaja uindustriji i pogonu.1 elka.hrprema IEC 60 502-1SVOJSTVAPovećana otpornost na djelovanje vatre, ne šire plamen.ISPITIVANJAIspivanje otpornos na gorenje i širenje plamena: IEC 60332 - 1, EN 50266-4-2 (kategorija C)

No. x mm2	Phase		Neutral/Earth		Inner sheath	Armored	Outer sheath		Weight of Cable
	Diameter of conductor mm	Thickness of XLPE mm	Diameter of conductor mm	Thickness of XLPE mm	Thickness mm	Diameter of wire mm	Thickness of Sheath mm	Complete Diameter mm	YJV32(CU) kg/km	YJLV32(AL) kg/km
1*1.5	1.38	0.7	-	-	1	0.8	1.8	10	143.8	134.5
1*2.5	1.78	0.7	-	-	1	0.8	1.8	10.4	162.4	146.9
1*4	2.25	0.7	-	-	1	0.8	1.8	10.9	187	162.2
1*6	2.76	0.7	-	-	1	0.8	1.8	11.4	216.3	178.9
1*10	4	0.7	-	-	1	0.8	1.8	12.6	278.7	216.1
1*16	5.1	0.7	-	-	1	0.8	1.8	13.7	353	255.5
1*25	6.3	0.9	-	-	1	0.8	1.8	15.3	471.7	319.2
1*35	7	0.9	-	-	1	0.8	1.8	16	574.4	361.9
1*50	8.2	1	-	-	1	1.25	1.8	18.3	768.2	480.8
1*70	10	1.1	-	-	1	1.25	1.8	20.3	1014	592.2
1*95	11.6	1.1	-	-	1	1.25	1.8	21.9	1284	704.1
1*120	13	1.2	-	-	1	1.6	1.8	24.2	1601.8	870.7
1*150	14.6	1.4	-	-	1	1.6	1.8	26.2	1931.3	1019
1*185	16.2	1.6	-	-	1	1.6	1.8	28.2	2320.1	1182.8
1*240	18.4	1.7	-	-	1	1.6	1.9	30.8	2900.7	1426
1*300	20.6	1.8	-	-	1	1.6	1.9	33.2	3509	1665.6
1*400	23.8	2	-	-	1.2	2	2.1	38.4	4628.7	2216.6
1*500	26.6	2.2	-	-	1.2	2	2.2	41.8	5708.8	2646.8
1*630	30	2.4	-	-	1.2	2	2.3	45.8	7125	3206.9
1*800	34	2.6	-	-	1.4	2.5	2.5	52	9119.4	4132.8
2*1.5	1.38	0.7	-	-	1	0.8	1.8	13.2	319.2	300.4
2*2.5	1.78	0.7	-	-	1	0.8	1.8	14	364.6	333.4
2*4	2.25	0.7	-	-	1	0.8	1.8	14.9	425.3	375.3
2*6	2.76	0.7	-	-	1	0.8	1.8	15.9	493.4	418.2
2*10	4	0.7	-	-	1	1.25	1.8	19.3	794.4	668.6
2*16	5.1	0.7	-	-	1	1.25	1.8	21.5	991.4	795.5
2*25	6.3	0.9	-	-	1	1.6	1.8	25.4	1452.4	1145.9
2*35	4.6	0.9	-	-	1	1.6	1.8	22	1461.6	1034.6
2*50	5.5	1	-	-	1	1.6	1.8	24.2	1790.9	1213.1
2*70	6.3	1.1	-	-	1	1.6	2	26.6	2319.3	1471.5
2*95	7.5	1.1	-	-	1.2	2	2.1	30.4	3157.2	1991.6
2*120	8.4	1.2	-	-	1.2	2	2.2	32.8	3758	2288.4
2*150	9.3	1.4	-	-	1.2	2	2.3	35.6	4482.4	2648.7
2*185	10.2	1.6	-	-	1.4	2.5	2.5	40	5723.1	3437.1
2*240	12.5	1.7	-	-	1.4	2.5	2.7	45.4	7145	4180.8
2*300	13.9	1.8	-	-	1.6	2.5	2.8	49.2	8583.1	4877.9
3*1.5	1.38	0.7	-	-	1	0.8	1.8	13.6	351.2	323
3*2.5	1.78	0.7	-	-	1	0.8	1.8	14.5	408.3	361.4
3*4	2.25	0.7	-	-	1	0.8	1.8	15.5	484.8	409.9
3*6	2.76	0.7	-	-	1	0.8	1.8	16.6	577.9	465.1
3*10	4	0.7	-	-	1	1.25	1.8	20.2	928.8	740.1
3*16	5.1	0.7	-	-	1	1.25	1.8	22.5	1188.5	894.6
3*25	6.3	0.9	-	-	1	1.6	1.8	26.7	1760.7	1301
3*35	5.4	0.9	-	-	1	1.6	1.8	24.4	1914.6	1274.1
3*50	6.8	1	-	-	1	1.6	1.9	28	2439.6	1572.9
3*70	8	1.1	-	-	1.2	2	2	32.3	3483.6	2211.9
3*95	9.5	1.1	-	-	1.2	2	2.2	35.9	4401.8	2653.4
3*120	10.8	1.2	-	-	1.2	2	2.3	39.3	5265.6	3061.2
3*150	12.1	1.4	-	-	1.4	2.5	2.5	44.6	6844.3	4093.6
3*185	13.5	1.6	-	-	1.4	2.5	2.6	48.6	8139	4710
3*240	15.4	1.7	-	-	1.6	2.5	2.8	53.9	10086.7	5640.4
3*300	17	1.8	-	-	1.6	2.5	3	58.1	12085.3	6527.4
4*1.5	1.38	0.7	-	-	1	0.8	1.8	14.3	391.3	353.7
4*2.5	1.78	0.7	-	-	1	0.8	1.8	15.3	459.7	397.2
4*4	2.25	0.7	-	-	1	0.8	1.8	16.4	551.7	451.8
4*6	2.76	0.7	-	-	1	1.25	1.8	18.6	800.7	650.4
4*10	4	0.7	-	-	1	1.25	1.8	21.6	1089.3	837.6
4*16	5.1	0.7	-	-	1	1.6	1.8	24.9	1543	1151.1
4*25	6.3	0.9	-	-	1	1.6	1.8	28.8	2094.7	1481.8
4*35	6.2	0.9	-	-	1	1.6	1.9	27	2386	1531.9
4*50	7.6	1	-	-	1	1.6	2	30.7	3014.1	1858.5
4*70	8.8	1.1	-	-	1.2	2	2.2	35.4	4298.9	2603.3
4*95	10.5	1.1	-	-	1.2	2	2.3	39.3	5480.4	3149.3
4*120	11.2	1.2	-	-	1.4	2.5	2.5	43.1	6972.2	4033.1
4*150	13	1.4	-	-	1.4	2.5	2.6	48.2	8452.2	4784.6
4*185	14.5	1.6	-	-	1.6	2.5	2.8	53.1	10276.8	5704.9
4*240	16.2	1.7	-	-	1.6	2.5	3	57.7	12650.1	6721.6
4*300	19	1.8	-	-	1.6	2.5	3.2	64.7	15397.1	7986.5
5*1.5	1.38	0.7	1.38	0.7	1	0.8	1.8	15.1	431	384
5*2.5	1.78	0.7	1.78	0.7	1	0.8	1.8	16.2	518.9	440.7
5*4	2.25	0.7	2.25	0.7	1	1.25	1.8	18.4	762.6	637.7
5*6	2.76	0.7	2.76	0.7	1	1.25	1.8	19.7	909.8	722
5*10	4	0.7	4	0.7	1	1.25	1.8	23.1	1245.8	931.2
5*16	5.1	0.7	5.1	0.7	1	1.6	1.8	26.8	1797.5	1307.6
5*25	6.3	0.9	6.3	0.9	1	1.6	1.8	31.1	2444.2	1678
5*35	7	0.9	7	0.9	1	1.6	1.9	33.2	2988.7	1921.1
5*50	8.2	1	8.2	1	1.2	2	2.1	38.5	4106.2	2661.7
5*70	5.1	1.1	10	1.1	1.2	2	2.3	38.2	5129	3009.5
5*95	6.2	1.1	11.6	1.1	1.4	2.5	2.4	43.6	6956.4	4042.5
5*120	6.6	1.2	13	1.2	1.4	2.5	2.6	46.8	8317.7	4643.9
5*150	7.6	1.4	14.6	1.4	1.6	2.5	2.8	52.4	10163.5	5579
5*185	8.5	1.6	16.2	1.6	1.6	2.5	3	57.4	12320.8	6605.8
5*240	9.6	1.7	18.4	1.7	1.6	2.5	3.2	62.8	15266.7	7856.1
5*300	10.8	1.8	20.6	1.8	1.8	3.15	3.4	70.1	19366.5	10103.3
3*2.5+1*1.5	1.78	0.7	1.38	0.7	1	0.8	1.8	15.1	442.9	386.6
3*4+1*2.5	2.25	0.7	1.78	0.7	1	0.8	1.8	16.1	527.8	437.3
3*6+1*4	2.76	0.7	2.25	0.7	1	1.25	1.8	18.3	776.2	638.6
3*10+1*6	4	0.7	2.76	0.7	1	1.25	1.8	20.8	1014	787.7
3*16+1*10	5.1	0.7	4	0.7	1	1.25	1.8	23.6	1322.2	965.4
3*25+1*16	6.3	0.9	5.1	0.7	1	1.6	1.8	27.8	1953.6	1395.9
3*35+1*16	6.7	0.9	5.1	0.7	1	1.6	1.8	28.8	2295.1	1556.6
3*50+1*25	7.4	1	6.3	0.9	1	1.6	1.9	31.1	2847.6	1827.7
3*70+1*35	8.7	1.1	7	0.9	1.2	2	2.1	36.2	4015.5	2530.3
3*95+1*50	10.5	1.1	8.2	1	1.2	2	2.2	40.5	5076.7	3039.4
3*120+1*70	11.6	1.2	10	1.1	1.2	2	2.4	43.9	6227.1	3598.8
3*150+1*70	13	1.4	10	1.1	1.4	2.5	2.5	49.7	7816.5	4641.9
3*185+1*95	14.5	1.6	11.6	1.1	1.4	2.5	2.7	54.5	9503.8	5492.1
3*240+1*120	16.5	1.7	13	1.2	1.6	2.5	2.9	60.4	11746.4	6565.3
3*300+1*150	18.8	1.8	14.6	1.4	1.6	2.5	3	66.3	14126	7651.2
3*2.5+2*1.5	1.78	0.7	1.38	0.7	1	0.8	1.8	15.8	484.5	418.8
3*4+2*2.5	2.25	0.7	1.78	0.7	1	1.25	1.8	17.8	702.1	596
3*6+2*4	2.76	0.7	2.25	0.7	1	1.25	1.8	19.2	853.3	690.7
3*10+2*6	4	0.7	2.76	0.7	1	1.25	1.8	21.7	1110	846.1
3*16+2*10	5.1	0.7	4	0.7	1	1.6	1.8	25.6	1635.8	1216.1
3*25+2*16	6.3	0.9	5.1	0.7	1	1.6	1.8	29.3	2182.1	1526.4
3*35+2*16	6.5	0.9	5.1	0.7	1	1.6	1.8	29.1	2453.2	1616.7
3*50+2*25	7.4	1	6.3	0.9	1	1.6	2	32.2	3125.6	1952.5
3*70+2*35	9	1.1	7	0.9	1.2	2	2.1	37.9	4482.4	2783.7
3*95+2*50	10.7	1.1	8.2	1	1.2	2	2.3	42.4	5679.2	3353.1
3*120+2*70	12	1.2	10	1.1	1.4	2.5	2.5	47.8	7499.7	4447.5
3*150+2*70	13.4	1.4	10	1.1	1.4	2.5	2.6	52.3	8649.7	5051.2
3*185+2*95	15	1.6	11.6	1.1	1.6	2.5	2.8	57.9	10681.1	6086.6
3*240+2*120	17	1.7	13	1.2	1.6	2.5	3	63.6	13074.7	7158.8
3*300+2*150	19.2	1.8	14.6	1.4	1.6	2.5	3.2	69.7	15769.3	8377.6
4*2.5+1*1.5	1.78	0.7	1.38	0.7	1	0.8	1.8	16	501.6	429.7
4*4+1*2.5	2.25	0.7	1.78	0.7	1	1.25	1.8	18.1	732.4	616.9
4*6+1*4	2.76	0.7	2.25	0.7	1	1.25	1.8	19.5	888.2	713
4*10+1*6	4	0.7	2.76	0.7	1	1.25	1.8	22.4	1172.6	883.3
4*16+1*10	5.1	0.7	4	0.7	1	1.6	1.8	26.2	1716.5	1261.7
4*25+1*16	6.3	0.9	5.1	0.7	1	1.6	1.8	30.2	2304.3	1593.4
4*35+1*16	7	0.9	5.1	0.7	1	1.6	1.9	31.9	2748.9	1796.8
4*50+1*25	4.9	1	6.3	0.9	1.2	2	2.1	30.3	3418.1	2109.3
4*70+1*35	6.2	1.1	7	0.9	1.2	2	2.2	36.8	4720.1	2811
4*95+1*50	7.5	1.1	8.2	1	1.2	2	2.4	41.2	6035.1	3415.1
4*120+1*70	7.9	1.2	10	1.1	1.4	2.5	2.5	46	7822	4459
4*150+1*70	9.2	1.4	10	1.1	1.4	2.5	2.7	49.8	9267.4	5175.9
4*185+1*95	10.5	1.6	11.6	1.1	1.6	2.5	2.9	55.6	11326.3	6171.6
4*240+1*120	12.8	1.7	13	1.2	1.6	2.5	3.1	62.6	14109.6	7446.4
4*300+1*150	15	1.8	14.6	1.4	1.8	3.15	3.3	71.5	18037.8	9710.3

Wuxi Reps Power Technology Co., Ltd. is located in C Area, Guanlin Town, Yixing City, Jiangsu Province. Enterprise development environment is superior, convenient transportation conditions, is a focus on special cable research and development, design, manufacturing and sales of a full range of science and technology service enterprises.
Our company has all kinds of professional production and technical personnel to provide technical support, at the same time has advanced professional production line and a complete set of testing equipment, perfect testing system and strict process testing to ensure the stability of product quality.
The company's main flexible cable, drag chain cable, tensile wear-resistant coil cable, grab cable. Garbage cable, scraper cable, gantry cable, coil cable, high flexibility cable, encoder cable, robot cable, robot arm cable, palletizer cable, tower cable, crane cable, driving cable, crane cable, Spreader cable, container crane cable, cold resistant cable and all kinds of flat cable, polyurethane cable, etc. Cover fixed installation, mobile installation of data communication, power transmission, all kinds of wire and cable products used in extreme environment.
It involves railways, highways, data transmission, oil and gas plants and petrochemical industries, environmental power, mining and tunnels, ports and ships, drum winding and communication applications.
"Cable Customization" is a special service close to the user of the Reps brand. With our years of experience, we can analyze the challenges faced by customers and bring together our expertise and cutting-edge technology, research and design solutions for supporting cable, and carry out technical services.
Q1: How can Iplace order?
A: You can contact us by email about your order details, or place order online
Q2: Does your company provide OEM&ODM services?
A: Of course, we can produce cables by your samples or technical drawings
Q3: Doed your company test all your goods before delivery?
A. Yes. we have 100% test before delivery
Q4: Are you a cable and wire manufacturer?
A: Yes, our company is an integrated set of industry and trade company.
Q5: Can you offer free samples?
A: Sure, the price is negotiable. We will definitely give a discount based on your annual order.
Q6: How long is your delivery time?
A: Of course, according to your order quantity, we'd like to provide free sample.
Q7: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Trade terms of EXW, FOB, CFR, CIF,are available.
