Innovative Hot Air Circulation Chamber for Filaments

Product Description

Product Description
This series of machines is suitable for various chemical fiber filaments, elastic fibers, composite fibers, and other raw materials to be evenly arranged, sized, dried, and shaped before being wound onto the pulp shaft; it has the advantages of high speed, stable sizing rate, constant tension, and precise control, making it an ideal equipment for shaping chemical fiber filaments; it is the preparation equipment for the beaming machine.
Important parts
Winding Mechanism
*Utilizes robust hard aluminum oxide rollers, enhancing durability and performance.
*Incorporates a yarn sheet compression device to maintain optimal tension during shaft replacement.
*Comes with a tape paper adhesive mechanism for secure operations.
*Features a pneumatic up/down shaft and clapper flip/flop system, integrated with air pressure sensor for unparalleled safety.
*Equipped with a manual telescopic reed for left and right movement, along with an electric reel expansion device, retractable reed swinging mechanism, and yarn lifting device.
*Includes state-of-the-art electrostatic eliminators.
Drying Section
*Employs a revolutionary two-stage reverse hot air circulation chamber paired with five drying cylinders for efficient drying.
*Each drying cylinder and chamber is fitted with an independent temperature measurement and control system.
*Uses a tension sensor control system to ensure consistent tension throughout the operation.
*Equipped with an oiling device for post-drying filaments, featuring a steplessly adjustable oiling roller speed.
*Offers an optional cooling system for dry yarn, tailored to customer needs.
Sizing Section
*Incorporates an advanced double frequency conversion motor drive system, allowing adjustable tension between the sizing roller and the yarn-feeding roller.
*Utilizes a pneumatic immersion grouting method with a specially designed grouting roller for uniform grouting across the yarn sheet.
*Features a lifting and locking system for the grouting roller and a lifting system for the soaking roller, simplifying cleaning and replacement while protecting the rubber roller during extended shutdowns.
*Equipped with a double-layer heat preservation slurry drum and a slurry heating control circulation device.
*Offers an optional automatic slurry spraying device.

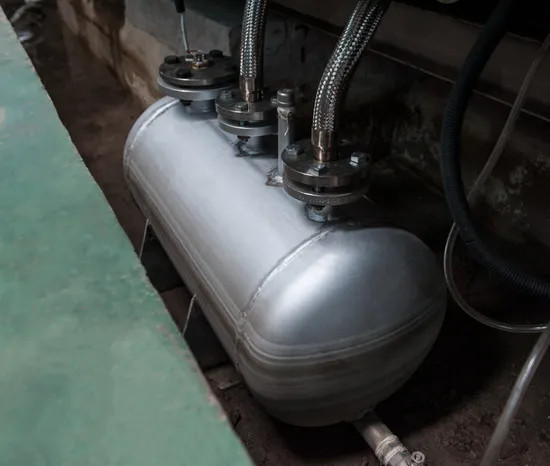

*The newly designed slurry supply tank effectively prevents slurry splashing.
*Comes with a reed movement mechanism (up/down/left/right) to significantly prolong reed lifespan.
Condensation Section
*Utilizes six wet layered rods (condensation rods) to protect the slurry film.
*Includes an optional water chiller to improve condensation effects.
*Equipped with a lifting device for the layered reed frame.
Hot Air Circulation Chamber
*The chamber supports multiple drying modes, including steam, natural gas, or thermal oil drying for versatile applications.
*Our state-of-the-art control system autonomously modulates the steam, natural gas, or thermal oil volume based on the pre-set chamber temperature for hot air circulation. This ensures that the chamber temperature is consistently maintained, resulting in the uniform drying of yarns.
*Utilizing a cutting-edge hot air circulation heating method that counteracts the direction of yarn movement, combined with an advanced, high-efficiency heat exchanger driven by frequency conversion technology, this innovation significantly boosts drying efficiency.
Product Parameters
Sizing Machine: Elevate your production process with our advanced Sizing Machine, engineered for precision, efficiency, and seamless integration into your workflow.

Max speed		500m/min
Width		1800mm	2000mm	2200mm	2400mm	2800mm	3200mm
Unwinding Part	Power	7.5kw			11kw
	Warp Shaft diameter	ø800mm ø900mm ø1000mm
Number of sizing roots		2000 2200 2400 2600 3200 3600
Sizing method		The Compression Mode
Diameter of dipping roller		ø200mm
Sizing roller diameter		ø240mm

Squeeze roller diameter		ø220mm
Pulping method/Max. load		The Grouting Method for Uniform Pressure/Max.1500kg
Drying method		Steam/ Natural gas/ Heat transfer oil
Electric heating power(optional)		75kw			110kw
Drying room length		6m+6m
Drying cylinder diameter		ø800mm
Number of drying cylinders		5 or 7
Temperature regulating system		Automatic Temperture Control System

After oiling system		The Roller-sticker Oiling (Waxing) Method
Cooling system		Active Cooling System with Airflow Circulation
Winding tension control mode		AC Vector Tension Feedback Control Method
Winding tension control range		40N~750N
Pulp shaft loading and unloading system		Pneumatic device loading and unloading
Winding shaft diameter		ø800mm~ø1000mm
Display system		Touch-operated Displays
Electrical equippment capacity		80KVA(155KVA)			80KVA(190KVA)

Steam assembly		700kg/h			800kg/h
Steam volume		600kg/h			700kg/h
