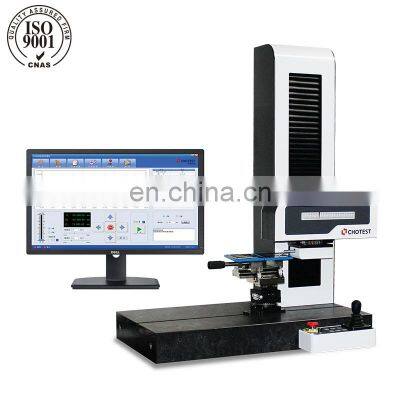

High Accuracy Automatic Profile And Roughness Tester Precision Measuring Contour Instrument

Product Description

Product Description
Product Overview Contour measuring instrument SJ5760Functions:1. Surface contour evaluation: It can evaluate radius, angle, distance, coordinates, circle, circular cross section, and determine the points, each intersectant point, coordinate axis, straight line, vertical line, circle and circular cross section, and analyze the straightness, roundness of contour;More functions: (1)Establish a regression line and a circle (2)Establish the points, intersectant points, free points, center point, the highest point and the lowest point (3)Establish the coordinate system (4)Calculate the radius, distance, angle, coordinates and linear deviation (5)Compare actual value with nominal value (6)The measurement program runs automatically2. CNC Automatic mode is supported; SPC statistics and analysis are supported3. Support to import CAD file and annotate CAD profile.4. Support to import PDF profile data.5. Can export test data to the Word, Excel, AutoCAD(Optional)6. Output multiple kinds of report format, and support user-defined report, or customize report(optional)7. Can query and manage the test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or effective date etc.8. Can print multiple selected test records or test certificates from database at once time9. User-friendly software10. Data backup and restore FEATURES AT A GLANCE Product Features1. High precision, high stability, high repeatability: fully meet the measurement requirements of test object. 1)The world's leading high-precision linear encoder system and high-precision inductance measurement system; 2)High-precision grinding rail is made of good material with high wear resistance. 3)High-performance linear motor driving system2. Intelligent measurement softwareThanks to friendly software interface, the operator can grasp the basic operation of the machine.3. Measuring forceMeasuring force controlled by voice coil motor driving system is continuously adjustable from 10mN to 150mN, and the resolution of measuring force is 0.2mN;4. Intelligent protection systemOnce the measuring probe collides with test object / workholder, or tensile force to measuring probe is too large during scanning process, the machine will stop scanning in order to protect measuring probe and measuring system.5. Flexible manual controlThe machine is equipped with a joystick, which can be used to position the probe before measurement. The operator can control the measuring probe to move up and down, left and right quickly without the computer.PRODUCT SPECIFICATIONS Item NoSJ5760 Contour measuring machine Profile measurement: (1) X-axis Measuring range(0~200)mm Indication error±(1.2+2L/100)µm, L is horizontal measured length in mm Resolution0.1μm Strightness2μm/200mm Scanning speed(0.05~5)mm/s Moving speed(0~10)mm/s (2) Z1-axis Measuring range±25mm Indication error±(2+0.05H)µm, H is vertical measured height in mm Resolution0.1μm (3) Z-axis Measuring range(0~450)mm Moving speed(0~10)mm/s (4) Measuring force(10~150)mN (5) Max gradientuphill 77 º / downhill 88º (6)Angle Error±1‘ (7)Curvature radius Error<±0.02%R (8) Object tableRotation angle: 360º; X, Y movement: 15mm (9) Dimension & weight800×450×1000 mm, 120kg (10) Operating environmentNo strong magnetic field, no vibration, no corrosive gas; Operating temperature: 10~30°C; Relative humidity: <85% Products Application Built-in roughtness standards Parameter classificationParameters RoughnessRa , Rq , Rz , Rmax , Rpc , Rz-JIS , Rt , Rp , Rv , R3z , RSm , Rs , Rsk , Rku , Rdq , Rlq , Rdc , RHSC , Rmr , Rz-L , Rp-L , R3z-L , Rdc-L , RMr-L , Pdc-L , PMr-LKey roughnessRk , Rpk , Rvk , Rpkx , Rvkx , Mr1 , Mr2 , A1 , A2 , VoProfilePa , Pq , Pt , Pp , Pv , PSm , Psk , Pku , Pdq , Plq , Pdc , PHSC , PPc , PMrWaviness of ProfileWa , Wq , Wt , Wp , Wv , WSm , Wsk , Wku , Wdg , Wdc , WMrMotifR , Ar , W , Aw , Rx , Wx , Wte , Nr , Ncrx , Nw , Cpm , CR , CF , CLISO 5436Pt , D Scanning curve of RoughnessScanning curve of Profile Product packaging Standard configuration: 1. Host machine2. Calibration gauges3. Measuring probe with taper spherical face for profile measurement4. Measuring probe with uniplanar face for profile measurement5. Jaw vice6. Object table7. Measuring software8. Desktop computer and 24” monitor9. HP laser printer10. Aluminium alloy suitcase for accessories11. User manual12. Product certification and Warranty cardSIMILAR PRODUCTS FAQ 1. Are you factory?Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.2. How many years experience do you have?We have 16 years experience on measurement instruments and calibration instruments since 2002. 3. What size of your factory?We have 5000 square meters of factory and 2,000 square meters of modern office 4. Can you accept OEM and ODM?No, we only sell the products under Chotest brand. 5. Can I become your distributor of Profilometer?Yes, please contact our sales engineer. 6. What is the lead time?Lead time is 30-60days in usual. 7. What is your payment term?30% deposit first, balance payment before delivery. We accept T/T, L/C. 8. How to install the machine?We dispatch our engineers to install and debug the machine in site of the customer. 9. What is your warranty term?We provide 1 year warranty after acceptance inspection by customer.Free repair or replacement in 1 year warranty in case of any problem.Response in 12 hours for emails or calls from customers in working days.
