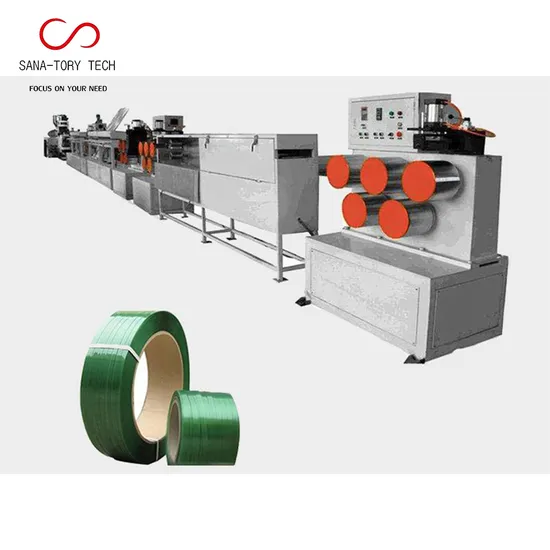

Plastic Machine PET Strappingt Band Extrusion Production Line (ST-90)

Product Description

Product Description
Plastic Machine PET Strap Packing Band Extrusion Production Line
We supplies extruder machine PET strap band production line manufactured in our own production facility and engineered specifically to meet the needs of customers in international markets.
PET strap band is widely used on packing industry.
PET strap machinery features as follows: Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps; Stainless steel cooling trough with four thermo treatment processes displaces the traditional one; Haul off rollers with bigger size ensure the quality of products; New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending deflection; Laser embossing roller makes clear and even patterns.
Width range: 9-25mm
Thickness range: 0.6-1.2mm Production Process:
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
Product Parameters
Features:
1) PET raw materials do not need to separate the dry and water treatment. There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%.
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent.
3) with the Multi-purpose machine, produce the PET straps in different specifications directly and don't need to change the mould head.
4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade.
5) Low energy consumption, but high production capability.
6) Easy to operate, save the manpower and two persons for one production line on average.
Configuration:

Number	Item	Amount
1	New generation Dehumidifier	1 unit
2	SJ-65/33 single screw plastic extruder	1 unit
3	extruder die	1 unit
4	High pressure static stretcher	1 unit
5	hauling machine	1 unit
6	Oven	1 unit
7	first strecther	1 unit
8	second stretcher	1 unit
9	tensing forming machine	1 unit
10	embosser equipment	1 unit
11	third stretcher	1 unit
12	double working station winder	1 unit
13	main electric control cabinet	1 unit

Detailed Photos
Exhibition
Company Profile
Qingdao Sana-tory Import And Export Co., Ltd focuses on international high and new technology, constantly absorbing and reserving, improving, and innovating. Thinking what the customer is thinking is the company's consistent guidelines, the sales manager will always communicate with you, wholeheartedly to provide you with the right product development plan, while providing you with considerate pre-sale, sales, and after-sales service. Let you not only get competitive products but also feel the quality of service brought to you by the team of us.
"Integrity, preciseness, excellence, dedication" is the enterprise that always adheres to the purpose but is also the embodiment of corporate culture. We firmly believe that the broad spiritual culture and continuous innovation are the roots of the enterprise lasting and leapfrog development.
FAQ
1.Q: Do you accept small orders?
A: Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
2.Q: Can you accept OEM/ODM products?
A:Yes. We are well in OEM and ODM. We have our own R & D department to meet your requirements.
3.Q: How about the price? Can you make it cheaper?
A: We always take the customer's benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
4.Q: If I'm a retailer, what can you provide about products?
A: We will provide you with anything we can to assist your company's growth, such as dataphotosvideo etc.
5.Q:How to deal with products' quality problem?
A: We have a professional after-sales department, 100% to solve the quality problems of products. Will not cause any loss to our customer.
