Farm Machine Blue Disc Plow Heavy Duty

Product Description

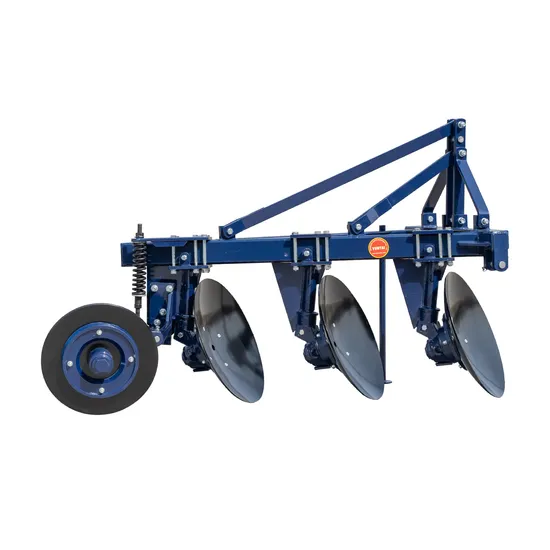

1LY DISC PLOUGH
Matchable with tractor, it furrow soil when patches rotate, mainly applicable for complex land,
such as weedy land, heavy soil, farmland with bricks and stones, etc. no tied with grass, not
obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality
work, easy to adjust, simple to use,durable, etc

Model	Number of discs	Diameter of disc (mm)	Working width(mm)	Working depth(mm)	Weight(kg)	Matched Tractor (hp)
1LY-315	3	460	450	180	170	25-30
1LY-320	3	510	600	200	190	30-50
1LY-322	3	560	660	220	316	45-55
1LY-225	2	660/710	500	250-300	305-315	50-60
1LY-325	3	660/710	750	250-300	430-450	75-90
1LY-425	4	660/710	1000	250-300	500-525	90-100
1LY-525	5	660/710	1250	250-300	600-630	100-120

Company Profile
SHANDONG YUNTAI MACHINERY CO.,LTD., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading
exporter of agricultural machinery and accessories.
YUNTAI company produce 20,000 sets tractor implements and 1,500,000 pcs of
accessories annually and have its owe R & D team and strong production capacity.
YUNTAI company produce agricultural machinery and accessories matched with
18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting,
transporting and plant protection machinery. Main equipments are disk plow, disc
harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato
harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts
and so on.
YUNTAI company have advanced production lines of machining, welding,
punching, forging, sandblasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the
United States, Germany, France, Australia,Asia, Africa,etc.
