Horizontal Boring and Milling Machining Center Heavy Duty CNC Horizontal Milling Hmc Boring Machine

Product Description

Main Features

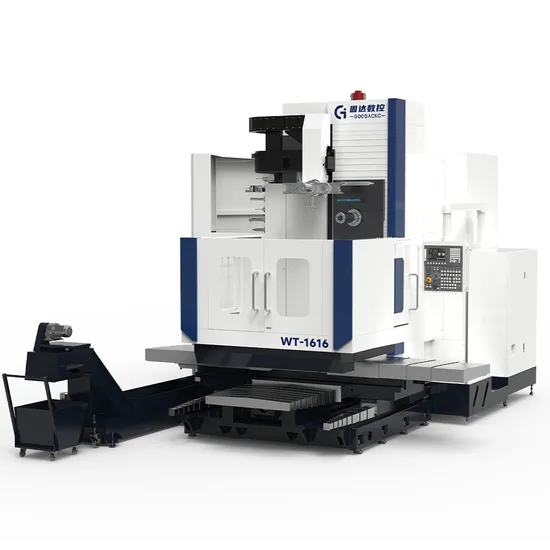

GooDa CNC Horizontal Boring and Milling Machining Center WT-series is mainly used for processing various types of large, medium-sized plate parts, box parts, molds, and other components.
Once the workpiece is clamped, it can complete a series of machining processes such as milling, drilling, boring, and reaming with high precision and efficiency automatically or manually.
It's suitable for metal processing in a wide range of industries, including moldmaking, aviation, heavy machinery, locomotives, shipbuilding, power generation, machine tools, printing, textiles, and others.
Main Functions
High Precision
Spindle Cooling Mechanism
1. Control the thermal displacement during spindle rotation to the minimum by cooling the bearing box and gearbox.
2. The spindle bearing adopts a tapered roller, which can bear radial and axial loads at the same time. It adopts circulating cooling and lubrication, which reduces the rise in temperature and obtains high accuracy.
High Rigidity and Torque
1. Wide sliding surface supports high-load machining
X, and Y, Z axes adopt quenched and rectangular wide sliding surface
2. Robust machine construction
The machine body adopts a highly rigid box structure
High Production Efficiency
High-level spindle performance and fast feed rate
1. Spindle output power:
15/18.5 KW(FANUC system)
17/20.5 KW(SIEMENS system)
2. Rapid feed:
X, Y, Z axis: 10m/min
W axis: 5m/min
B axis: 5.5rpm
Excellent Spindle Performance
Supports machining of various workpieces, such as low-speed high-output machining via large-diameter milling cutters, high-torque machining via large-diameter borings, etc.
The boring bar can extend 550mm (the boring shaft is displacement type, and the spindle adopts stepless speed regulation.)
Good access to the workpiece, ideal for deep boring.
Rapid movement reduces non-cutting time
Rapid feed:
X, Y, Z axis: 10m/min
W axis: 5m/min
B axis: 5.5rpm
Applications
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	WT-1616
Category	Attribute	Value	Unit
Worktable	Worktable size	1350*1000	mm
	Max. load capacity	5	T
	T-slot	7-22*125	/
Travel	X-axis travel	1600	mm
	Y-axis travel	1600
	Z-axis travel	1200
	W-axis travel	550
Ball screw	X/Y/Z/W	6310/6310/6310/5010	mm
Spindle	Tool holder specifations	BT50-130-1200	/
Feed speed	Rapid feed rate X/Y/Z/W	10/10/10/5	m/min
	Cutting feed rate X/Y/Z/W	2/2/2
Machine accuracy	Positioning accuracy(X/Y/Z/W)	0.02/1000	mm
	Repeat positioning accuracy(X/Y/Z/W)	0.015/1000
Tool magazine	Chain type tool magazine	40	T
Power requirement	X/Y/Z/W/B servo motor	37/37/37/27/27	N·m
	Spindle motor	15/18.5	KW
	Rated voltage	AC380V±10%	V
	Total power	40	KW
	Air pressure	0.6-0.8	Mpa
Space & weight	Machine weight	18	T
	Machine size (L*W*H)	6613*4460	mm
