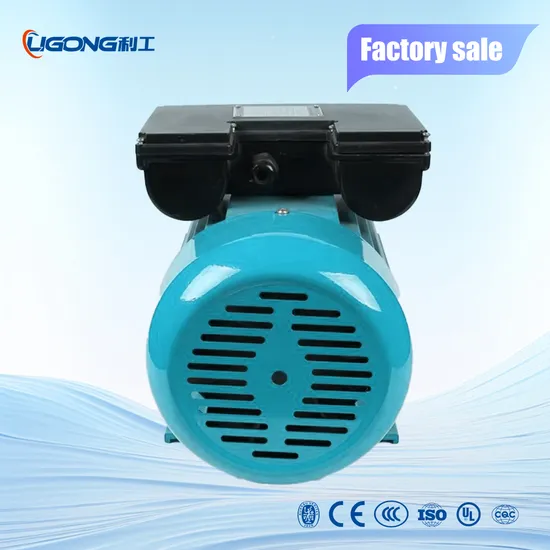

Electric Motor with Aluminum Housing 220V Single Phase 1.5HP-5kw Industrial Use Made in Vietnam 1.1kw 2.2 Kw 3 Kw 3.5kw 4kw

Electric Motor with Aluminum Housing 220V Single Phase 1.5HP-5kw Industrial Use Made in Vietnam 1.1kw 2.2 Kw 3 Kw 3.5kw 4kw

US$98.80-550.00 1 Piece (MOQ)

Basic Info.

Model NO.
Single-phase asynchronous motor
Number of Stator
Single-Phase
Species
Ie3 Efficiency Single Phase AC Motor
Rotor Structure
Winding Type
Number of Poles
4
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Metaril
Fe
Transport
Ningbo
Delivery Time
15 Days
Color
Customized
Poles
2/4/6
Protection Degree
IP44
Frequency
50Hz, 60Hz
Frame
Cast Iron or Aluminum
Ambient Temperature
40°c, 1000 M. a.S.L
Output
0.12kw-3.7kw
Transport Package
Carton; Hard Wooden
Trademark
Hacchuang
Origin
China
HS Code
8501510090
Production Capacity
100000

Product Description


e a low carbo
Features
High starting torque, low energy consumption. Cast iron or cast aluminum frames. The basic type is rated at 220V/50Hz. It also can be customized with 110V/220V, 110V, 240V, and 60Hz
General Description
Frame sizes: 71 to 132 Rated output: 0.12 to 3.7kW Voltage: 220V,110V/220V, 110V, 240V Frequency: 50Hz or 60Hz Duty cycle: S1 Insulation class: B / F Number of poles: 2,4,6 Mounting
Frame IMB3 IMB14 IMB34 IMB5 IMB35 IMB3
A A/2 B C D E F G H K M N P R S T M N P R S T AB AC AD AE HD L
YC71 112 56 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 130 110 160 0 10 3.5 136 140 109 95 180 250
YC80 125 62.5 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3.0 165 130 200 0 12 3.5 160 165 108 110 188 290
YC90S 140 70 100 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 120 120 210 315
YC90L 140 70 125 56 24 50 8 20 90 10 115 95 140 0 M8 3.0 165 130 200 0 12 3.5 180 180 120 120 210 330
YC100L 160 80 140 63 28 60 8 24 100 12 - - - - - - 215 180 250 0 15 4 205 200 180 130 260 430
YC112M 190 95 140 70 28 60 8 24 112 12 - - - - - - 215 180 250 0 15 4 245 250 190 140 300 455
YC132S 216 108 140 89 38 80 10 33 132 12 - - - - - - 265 230 300 0 15 4 280 290 210 155 350 525
YC132M 216 108 178 89 38 80 10 33 132 12 - - - - - - 265 230 300 0 15 4 280 290 210 155 350 565
YC711JS 112 56 90 45 16 40 5 13 71 7 85 70 105 0 M6 3.5 130 110 160 0 10 3.5 139 142 109 100 180 265
YC713J 112 56 90 45 16 40 5 13 71 7 85 70 105 0 M6 3.5 130 110 160 0 10 3.5 139 142 109 100 180 281
Note: The other dimensions of IMB14, IMB34 and IMB5 are the same as those of IMB3.
Product Description
The High-Efficiency IE5 (YE5) Series Three-Phase Aluminum Housing Motor is designed to provide the ultimate performance, while remaining high-efficiency. The lightweight aluminum housing enhances its applications in industries where reliable power supply and portability are key requirements.
For example, the motor can be applied in the manufacturing, agriculture, and HVAC system industries. In essence, it is useful in nearly all industries where there is a high demand for reliable and consistent performance and durability.
This motor is constructed to comply with the IE3 efficiency standards. It assures a large margin in the reduction of energy consumption, with the effectiveness of being cost-efficient over its entire lifetime. The utilization of aluminum in making the motor housing provides a protective shell against corrosion.
Noteworthy, the aluminum housing is vital in enhancing the lightweight feature of this motor. Specifically, the high-density power feature allows it to increase the overall efficiency of AHU in an HVAC system, consequently reducing the associated working cost of the equipment and maintenance services.
With respect to the development of machinery, it can be installed in various forms to meet different machine requirements.
Product Features
High Efficiency: IE5 standards are met by the motor, and it operates within that stricture. As such, energy is utilized optimally, reducing the operation costs associated with machinery. For instance, the cost of power is a chief expenditure in manufacturing, and the efficiency of this motor will reduce those power bills, especially for works that run for twenty-four hours. Aluminum Housing: Apart from enhancing the durability of the motor, the aluminum shell proves fundamental in reducing the overall weight of the motors. Consequently, they become easy to handle and install, especially in tight places where space would be a challenge for heavy motors. Low Noise and Vibration: The motor is engineered to operate silently with minimal or no vibration. This aspect makes them useful in buildings where sound might be a nuisance, especially on top of rooftop HVAC systems in office buildings. Long Service Life: Bearings of the motor are of very high quality largely due to the robust nature of the thing. Moreover, they can be oiled and greased, which again ensures a long service life, particularly when used in applications like conveyor belts in manufacturing plants. Versatile Mounting Options: The motor design facilitates mounting in any of the six possible positions, ensuring it can be put to the best application under various tight industrial installations.

FAQ
1. What is your product range?
A: Diversified motors: Y, YE(IE), YB, YCT, YF, YC serises etc,
Peripheral: fan, water pump, etc.
2. Do you offer customization services?
A: Bespoke drawing, parameter support, custom packaging and appearance also available.
3. Can the price be reduced?
A: Better quality at the most competitive price-up to you.
4. What is your lead time?
A: In-stock items: same-day delivery;
Large production:15 days;
Custom production: around 45 days
5. What shipping terms do you accept?
A: EXW,FOB...DDP
6. What are the advantages of your after-sales service?
A: One-year warranty, parts delivery, online guidance or on-site engineer visits.
We deliver ex1.What is your product range?
2.Do you offer customization services?
3.Can the price be reduced?
4.What is your lead time?
5.What shipping terms do you accept?
6.What are the advantages of your after-sales service?tensive experience across three-phase motor stages from design and development through mature production technologies, providing superior efficiency, robustness and acuracy. Our mission is to be the partner of choice for our customers and stakeholders, delivering en
n future.
