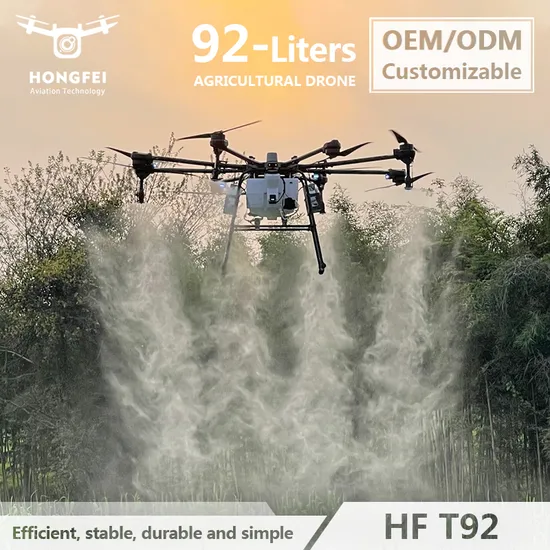

92L Rtk Agriculture Dron Hf T92 Professional Multi-Functional Agricultural Sprayers Drone for Farmers Use Crop Dusting Pesticide Spraying Liquid Fertilizer

Product Description

Product Description

World Leading Large Capacity - HF T92 Agriculture, Transportation, Rescue, Logistics and Many Other Application Scenarios
Aerial Platform			Spraying System
Structural Design	8-Axis		Liquid Tank	Capacity	92L
Dimensions (folded)	1300*1300*1300 mm		Nozzles	Nozzle Type	Centrifugal nozzles
Dimensions (unfolded)	3160*3160*1300 mm (propeller folded) 4445*4445*1300 mm (propeller unfolded)			Quantity	4
Weight	71.6 kg			Spray Width	8-20 m
Max. Takeoff Weight	190 kg		Pump	Quantity	2
Max. Payload	100 kg			Max. System Flow Rate	24 L/min
Max. Liquid Capacity	92L			*New Feature	Dual External Filters
Waterproof Grade	IP67		Maximum Work Efficiency	33 ha/h
Aircraft Engine Lifespan	≥100,000 hours		GNSS	GPS/BDS/Glonas
Aircraft Frame Lifespan	>10 years		Remote Control	5.5-inch high brigh screen
·Quick release landing gear & arms: the landing gear uses split pipe clamps, and the arms are fixed with plywood screws between the arms and hardware for easy maintenance. ·Double external cartridge: easy for daily use and maintenance. ·Mushroom-Head Antenna Cover: waterproof and superior heat dissipation performance. ·Forced air-cooling fan in cabin: adapt to high temperature operation. ·Adding external aviation plug: contains power supply and signal cable, convenient for external equipment. (Can directly increase the electronic control drop equipment, etc.) ·Maximum flow rate: up to 24L/min.

Spraying System

	Spraying Parameters
	Spraying Width	8-20M
	Flow Rate	12-24L/min
	Spraying System	Centrifugal nozzle*4
	Maximum Work Efficiency	33 ha/h

·Efficient Distribution: The centrifugal spray head in drones can distribute substances such as pesticides, powders, suspensions, emulsions, and soluble powders more evenly. This uniformity ensures that every part of the field or area being sprayed receives an equal amount of substance, leading to more effective and efficient usage.·Adjustable: The size of the spray droplets can be adjusted by controlling the speed of the nozzle, achieving precision agriculture.·Easy to Replace and Maintain: The centrifugal spray head consists of a centrifugal motor, a spray tube, and a spray disc. The spray disc is separated from the motor, preventing the motor from coming into contact with pesticides, extending the motor's lifespan.·High Corrosion Resistance and Durability: The spray disc is made of high-quality materials that can withstand acidic and alkaline pesticides.
Remote Control

Remote Control	Route Planning	Spray Setting	5.5-inch Display Screen	Multiple Interfaces

·Easy to use: With a user-friendly design, clear operating interface, and reasonable button layout, you can easily control the flight and operation of the drone.
·Multiple language options: The remote control supports multiple languages such as English, Spanish, and Chinese, allowing you to easily use drones in any country.
·High definition display screen: Equipped with a 5.5-inch high-definition display screen, it can display real-time information such as the flight status, operation parameters, and image transmission of the drone, allowing you to stay informed about the drone's situation at any time.
·Long endurance battery: Equipped with a large capacity battery, so you don't have to worry about low battery.
Multi-purpose

Throwing and transportation can be accomplished by installing different accessories.
Throwing version	Transportation version

Packaging & Shipping

Production, assembly	Testing	Packaging (customized boxing method available)	Loading and shipping

Company Profile
Hongfei Aviation Technology Co., Ltd.
Is Established in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.

Strength	Service	Quality	Certificates
Years of operation, with rich manufacturing and sales experience. ·Support OEM/ODM ·Independent factory ·With professional R&D team ·Possess many patents ·One of the leading drone manufacturers in China	Quality service to meet your needs. ·Perfect pre-sales and after-sales service ·According to the application industry, we can match the best solution for you ·Focus on customer feedback, timely and effective solution to customer problems	Professional production system to ensure the quality of each product. ·Passed ISO9001 international quality system certification ·Controlling the details, to ensure that each detail of the product delivery	Received several certifications. ·20 invention patents ·15 utility model patents ·23 software copyrights ·1 appearance patent

FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
