Mist Filtration Dust Fume Oil Mist Collector Cleaner Waste Gas Purifier with HEPA Filter Air Cleaning Equipment Industrial Mist Collector

Product Description

Product Description
Mist collection is the process of removing (collecting) oil, water, and/or other coolant mist from the environment during machining and lubrication operations. Manufacturers and machine operators generally use oil mist collectors on metal and plastic working tools to provide a cleaner work environment for machine operators. These collectors significantly reduce the effects of the oil mist by minimizing the exposure to oil residual and keeping the indoor air quality above regulation.

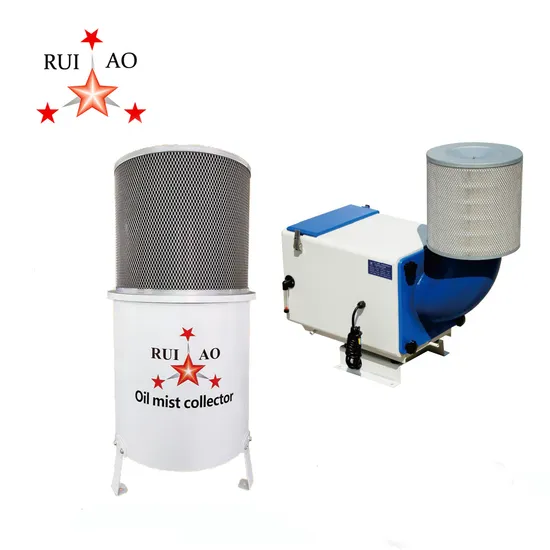

oil mist collector is suitable for CNC numerical control lathe, washing machine, Surface grinding machine, gear hobbing and milling machine and the slotting machine, vacuum pump, spray laboratory, electrical discharge machining, CNC machining center. RUIAO centrifugal vertical round air oil mist collector dust waste fume filter extractor

Model	LJ-250	LJ-370	LJ-750	LJ-750L	LJ-1100
POWER	0.25KW	0.37KW	0.75KW	0.75KW	0.75KW
VOLTAGE	220V/380V/3PH	220V/380V/3PH	220V/380V/3PH	220V/380V/3PH	220V/380V/3PH
FREQUENCY	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
AIR VOLUME	680M3/h	1080M3/h	1380M3/h	2300M3/h	3000M3/h
SIZE	380*800	430*900	470*900	470*1150	470*1150
WEIGHT	21KGS	30KGS	35KGS	37KGS	39KGS

Horizontal type centrifugal oil mist filter collection purifier
High efficiency filtration 99% mist collector gas oil mist cleaner collection purifier HEPA filter for machine tool center Main Features 1) Base on the theory of step -by - step filtering : the first step catches>=20um; second step catches<=2um; third step catch<=1-0.1um. Selectable highly efficient filter are available to catch the mist produced in processing.
2)Here is a signal to warn normal working or the filter cotton need to be changed. the red ball will float upward to the top, when the oil mist collection filter working; and the red ball will sink to the bottom, when it is off. the filter cotton will catching oil mist after the machine works for a while when the catching ability is lower than 70%, the red ball will sink to the bottom, that means it's time to replace or clean the filter cotton.
3) Easy to install all of the machines can be directly installed on the machine tool, bracket, easy tear open outfit.
4) the catching efficency can reach 99% or more.

MODEL	Air volume M3/h	Power supply	Power	Frequency	Weight	size(L*W*H) mm	Noise dB(A)
YW-500	300-500	3p/220V/380V	0.37kw	50HZ	33kgs	700*340*460	60
YW-900	600-900	3p/220V/380V	0.75kw	50HZ	42kgs	800*380*520	62
YW-1500	1100-1500	3p/220V/380V	1.5kw	50HZ	58kgs	1000*420*580	65
YW-1900	1500-1900	3p/220V/380V	2.2kw	50HZ	75kgs	1200*480*620	65

Detailed Photos
Application

Certifications

Packaging & Shipping

Company Profile



FAQ
