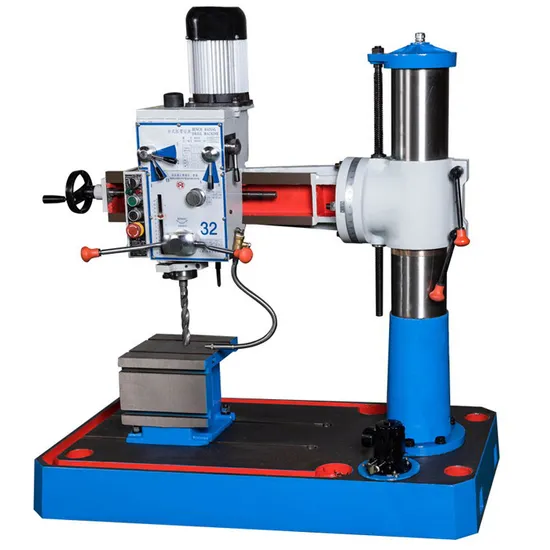

High Quality Vertical Drilling Mechanical Radial Arm Drilling Machine Price
| US$1,200.00-1,500.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
Z3032x7
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Radial Drilling Machine
Max. Drilling Capacity
32mm
Distance Spindle Axis to Column
300-700mm
Spindle Taper
Mt3
Spindle Travel
130mm
Spindle Speeds Series
8
Range of Spindle Feeds
0.08-0.23mm/R
Dimension of Worktable
250X250X250mm
Column Diameter
150mm
Spindle Speed
100-1600rpm
Power of Main Motor
750W/1100W
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
100PCS/Month
Product Description
High Quality vertical drilling mechanical Radial Arm Drilling Machine PriceMain features:
1. With hydraulic presetting speed shift mechanism to save auxiliary time.
2. Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
3. Spindle with auto-feeding with 3 steps
4. With Rotary arm. tilted ±45°, it reliable and easy job can be done.
5. With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
Standard Accessories:
1.Drill chuck
2.Taper Sleeve
3.Arbor
4.Drift
5.Box shape worktable
Optional Accessories
1.Stand
2.Vice
3.Safety guard
| Model | Z3032X7/ Z3032×7P |
| Max. Drilling capacity(mm) | 32 |
| Max. Tapping capacity(mm) | Cost lron20 Steel16 |
| Distance spindle axis to column generating line | 300~700 |
| Diameter of column(mm) | 150 |
| Spindle taper | MT3 |
| Spindle travel | 150 |
| Spindle speeds range(mm) | 100~1600 |
| Spindle speeds series | 8 |
| Spindle feeds(r/min) | 0.08,0.14,0.23 |
| Rotary angle of rocker in hirizontal plane( °) | 360 |
| Distance between spindle nose to working surface of base(mm) | 275~680 |
| Dimension of worktable(mm) | 250×250×250 |
| Diameter of base(mm) | 1050×550×120/1200×625×255 |
| Overall size(mm) | 1235×550×1195/1235×625×1230 |
| Motor(w) | 750 or 1100 |
| G.W./N.W.(Kg) | 475/380, 675/580 |
| Packing dimension(cm) | 123×62×124 / 127×69×138 |
