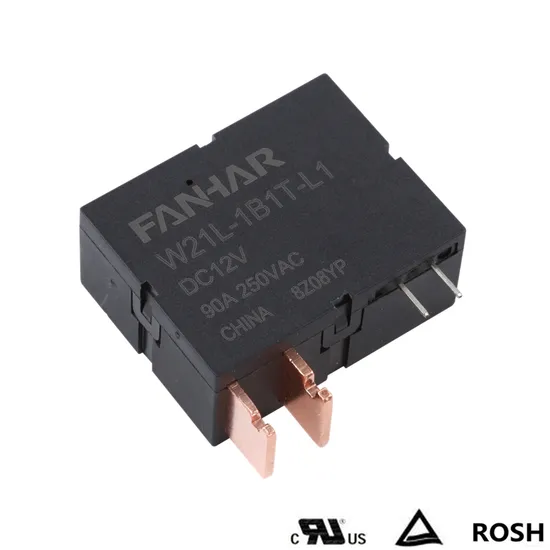

General Purpose Latching Relays with UL Certification
| US$1.80-2.20 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
FH21L
Electricity Type
Dc
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Subminiature
Type
Electric Parameter Relay
Certification
UL TUV CQC
Contact Material
Agsno2
UL Insulation Class
F
Operate Time
Max.20ms
Release Time
Max.20ms
Installation Type
PCB
Weight
50g
Contact Form
Close
Temperature
-40 to +85
Humidity
5% to 85%
Transport Package
Export Carton
Specification
38.5*30*17.5(mm)
Trademark
Fanhar
Origin
China
HS Code
8536411000
Production Capacity
2500000-3000000PCS/Month
Product Description
Basic Info1.90A switching capability
2. Single coil and double coils are all available
3. Can be customized the manganese copper shunt, transformer and other external accessories according to customer demand
4. Breakdown voltage (between contact and coil):5KV
5.Meet the standard of IEC62055-31:2005 UC2
6. Environment-friendly product (RoHS compliant)
7. Outline Dimensions:(38.0×30.0×16.5)mm
8. Main application:Smart meter,Compound switch
