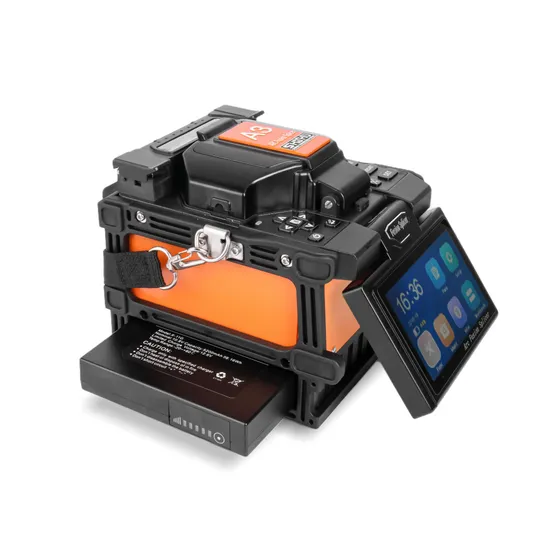

Full Automatic Touch Operate Fast Splicing Optic Fibre A3 Fusion Splicer Machine
| US$599.00-899.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
A3
Certification
CE, ISO, RoHS, GS
Condition
New
Applicable Fiber
Sm(G.652), mm(G.651), Ds(G.653), Nzds(G.655)
Fiber Count
Single
Typical Splice Loss
0.02dB(Sm), 0.01dB(mm), 0.04dB(Ds), 0.04dB(Nzds)
Return Loss
>60dB
Splicing Program
40 Groups
Operate Mode
Manual, Automatic
Auto-Heating
Available
Typical Splicing Time
6 Seconds
Tube Heating Time
26 Seconds for 60mm and 40mm Shrinkable Sleeves
Storage of Splice Result
4000 Results
Diameter
149mm (L)×120mm (W)×127mm (H)
Weight
1.90kg (Including Battery)
Transport Package
Carton
Specification
47x39x30cm
Trademark
Shinho
Origin
China
HS Code
8515809090
Production Capacity
5000/Month
Product Description
Features 6s typically for splicing and 26s for heating,Fiber core max. magnifications up to 250X,
Electrodes discharging more than 4000 times,
Integrated heater, easy and convenient to operate,
USB port for software updating and data records exporting,
PAS image digital processing system, core to core alignment,
ARC calibrated by temperature and air pressure automatically,
360°rubber armor protects machine from shock, water and dust,
5800mAh and pluggable Li-battery, typical 200 cycles splicing and heating,
Multi-function holder clamps, suitable for bare fibers, skin line cables, jumper cables etc.
Specifications
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
| Fiber count | Single |
| Applicable fiber dimensions | Cladding diameter: 80 -150μm, Coating diameter: 160 - 3000μm |
| Typical splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 6 seconds |
| Tube heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 5800mAh, typical 200 cycles(splice and tube heat), pluggable inner Li-battery |
| Power supply | Adaptor, input: AC100-240V(50/60HZ) |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s |
| Dimension | 149mm(L)x120mm(W)x127mm(H) |
| Weight | 1.9kg including battery |
