Damly Good Quality 66kw 73kw Poultry Farming Equipment Heating System Chicken Heater
| US$750.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DO-66
Usage
Heat for Poultry
Application
Chicken
Power Source
LPG or Natural Gas
Heating and Ventilation Equipment Type
Air Duct
Certification
ISO9001:2008, CE
Condition
New
Warranty
1 Year
Power
66kw-73kw
Heat Area
400-500m2
Air Flow
1700m3/H
Voltage
220V 50Hz/60Hz
Transport Package
Standard Export Carton Box
Specification
250000btu/h
Trademark
DAMLY
Origin
China
HS Code
8436290000
Production Capacity
3000 PCS/Year
Product Description

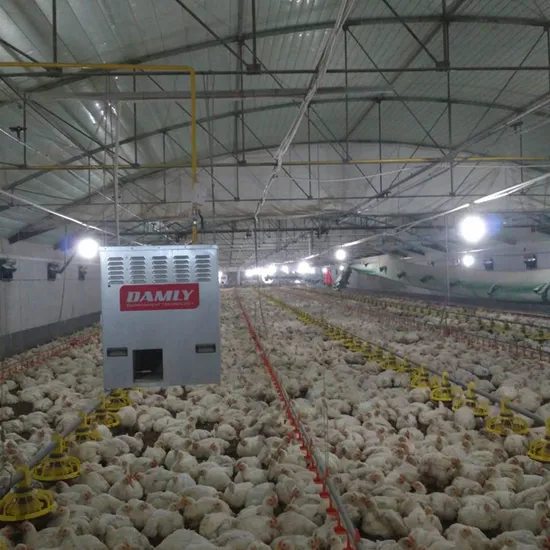

DAMLY Good Quality 66kw 73kw Poultry Farming Equipment Heating System Chicken HeaterDAMLY Poultry Gas Heater SUNHEATER DO-66 is an Automatic space heater which is used to produce heat to warm the particular area of brooding for poultry house, pig farm and greenhouse. It's with an electric thermostat which makes the space heater running automatically. It is an ON/OFF heater with automatic ignition. It works with LPG or Natural gas depending on the model it could be placed inside or outside the farm buildings.
Technical Chart of Gas Heater for Poultry Farm
| PROPANE GAS | NATURAL GAS | BIOGAS | ||
| GAS CONNECTION | 1/2 " | |||
| ELECTRIC CONNECTION | 220 V - 50/60 Hz | |||
| FUSE (inside control box) | A | 4 | ||
| NET WEIGHT | Kg. | 55 | 55 | 55 |
| NOMINAL POWER | KW. PCI | 66 | 66 | 45 |
| KW PCS | 73 | 73 | 49 | |
| GAS FLOW | Kg/h | 4.8 | ||
| GAS FLOW | m3/h | 6.2 | 12 | |
| GAS PRESSURE | Mbar | 25-55 | 17-25 | 20-30 |
| INCREASE OF TEMPERATURE | For 10° C air | 120 | 120 | 100 |
| NOZZLE REFERENCE | 4 | 7 | 9 | |
| AIR FLOW | m3/h | 1700 | 1700 | 1700 |
| TOTAL ABSORBED ELEC. POWER | W | 370 | 370 | 370 |
| FAQs |
| What is Space Heater? It is an Automatic Brooding Gas Heater which is used to produce heat to warm the particular area of brooding for poultry Day Old Chicks. How it works? It works automatically depends on poultry house or brooding house temperature. Which fuels are required to run it? The gas heater for poultry farm can use LPG or Natural Gas. Biogas model is also available. LPG or Natural Gas is required as fuel to produce heat & Electricity is required to run the blower which transport the hot air into the poultry house or brooding house. What are the differences between poultry gas brooder and space heater? Gas Brooders are infrared heater which will heat for a spot area and space heater is used to heat all the space, especially used in cage management poultry farms where birds are kept into particular blocks and they do not have much space to move, so that space heater warming entire area uniformly and every corner of brooding shed will maintain proper temperature. What are the safety measures provided into this heater? 1. Security overheating thermostat 2. High efficiency Burner 3. Security gas valve 4. Security flame sensor 5. Security air flow switch What type of brooding shed insulation required & why? Outside curtain and inside brooding tent of tarpaulin is recommended for better insulation, it will help to preserve the hot air into brooding shed so operating cost can be reduced and better result can be achieved Where to place this space heater into the poultry house? Our engineer can design the best place to put the heater according to your poultry farm information such as the dimension of the house, the ventilation, the outside minimum temperature, etc. What will the warranty & after sales service if any maintenance arrives? We provide one-year warranty. DAMLY designs and produces this heater so any parts required to change it will be easily available at reasonable cost. |
PACKAGING INFORMATION:
PRODUCT LIST
DAMLY COMPANY
DAMLY is the professional manufacturer of the gas heating products for the livestock buildings. We produce poultry gas heaters, poultry infrared gas brooders, pig space heaters and greenhouse heaters. We have exported to more than 50 countries. We are not only selling the poultry gas heaters, but also give professional technical supports. We're looking for distributors all over the world. Welcome for your cooperation!
