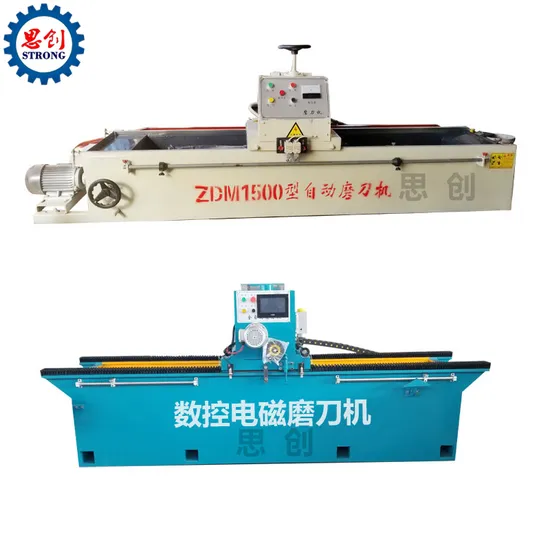

CNC Magnetic Knife Grinding Machine Straight Blade Sharpener

Product Description

The knife grinder is also called end face knife grinder, and its structure is mainly gantry type. It is mainly aimed at institutional and enterprise users such as knife grinding center, forest industry, printing factory, papermaking plastics, book and periodical printing center, medium-sized knife grinding room, etc. The knife grinder series adopts a gantry structure body made of carbon steel. The transmission and positioning of the grinding head is adjustable. The guide rail is subject to precision scraping and grinding technology, so that the service life of the whole machine is longer. The aviation turbine deceleration system is adopted, and the rack back and forth makes the stroke transmission more stable. It is suitable for grinding the straight blade of cutting machinery such as rotary cutter, paper cutter, plate shears and planers. It is a necessary tool grinding equipment for printing, papermaking, woodwork, comprehensive utilization of wood, sheet metal and other industries. The automatic device of the whole machine is convenient and fast, especially suitable for large enterprises and grinding processing industry, with high precision, time-saving and labor-saving. This product is mainly used for polishing and grinding of various straight cutting tools and flat workpieces, such as; (woodworking rotary cutting machine, rubber cutting machine, papermaking printing paper cutting machine, traditional Chinese medicine cutting machine, textile carpet cutting machine, fiber plastic crusher and other straight cutting tools, as well as precision machining of polishing and grinding of straight workpieces such as guide rail mold test gasket).
Press Plate Type Knife Grinding Machine

Press Plate Type Knife Grinding Machine
Model	SC-1500	SC-1800	SC-2200	SC-2600
Machining length	1500mm	1800mm	2200mm	2600mm
Grinding head speed	30m/min	30m/min	30m/min	30m/min
Main motor	3.0kw	3.0kw	3.0kw	4.0kw
Traveling motor	1.1kw	1.1kw	1.1kw	1.1kw
Water pump motor	60w	60w	60w	60w
Grinding wheel speed	1440r/min	1440r/min	1440r/min	1440r/min
Grinding head	Cup grinding wheel(Diameter:200mm;Wall thickness:20mm;Height:110mm)
Worktable size	1470*170mm	1470*170mm	1470*170mm	1470*170mm
Dimension	2900*850*950mm	3200*850*950mm	3600*850*950mm	4000*850*950mm
Weight	380kg	460kg	600kg	900kg

Electromagnetic Knife Grinding Machine

Electromagnetic Knife Grinding Machine
Model	SC-1600	SC-1800	SC-2300	SC-2600	SC-3200
Machining length	1600mm	1800mm	2300mm	2600mm	3200mm
Grinding head speed	30m/min	30m/min	30m/min	30m/min	30m/min
Main motor	4.0kw	4.0kw	4.0kw	5.5kw	5.5kw
Traveling motor	0.75kw Variable frequency motor
Water pump motor	90w	90w	90w	90w
Lifting motor	300w	300w	300w	300w	300w
Grinding wheel speed	1440r/min	1440r/min	1440r/min	1440r/min	1440r/min
Grinding head	Cup grinding wheel(Diameter:200mm;Wall thickness:20mm;Height:110mm)
Worktable size	1470*170mm	1470*170mm	1470*170mm	1470*170mm	1470*170mm
Dimension(mm)	3000*1000*1100	3250*1000*1100	3650*1000*1100	4100*1000*1100	4700*1000*1100
Weight	1100kg	1200kg	1350kg	1600kg	2000kg

FAQ
1.What about the payment term&price term?
As usual, we accept T/T as the payment term, and the price term FOB is ok.

2.Are you a trading company or a factory?
Xingtai Sichuang Manufacturing Co., Ltd. is a manufacturer in Hebei Province, China. we have specialized in we have specialized in crane&winch over 10 years, our high quality products were welcomed in many countries.
3.How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
4.How about the packing?
Outside Package: Wooden packing case as export standard ; Inside Package: Stretch film
5. What's the delivery time? Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10 pieces products, if more quantity, it depends.
6. Questions before quotation?
Capacity? Lifting height? Voltage? Quantity? The more details the more accurate price quotation. Thank you.
7.what about our winches features?
1, Compact structure and reasonable design
2, Easy to install, operate and maintenance
3, Low noise and good working condition
4, Three-phase power supply, suitable for a wide range of applications
5, Simple structure, easy to identify the cause of the failure, easy to repair and maintain
